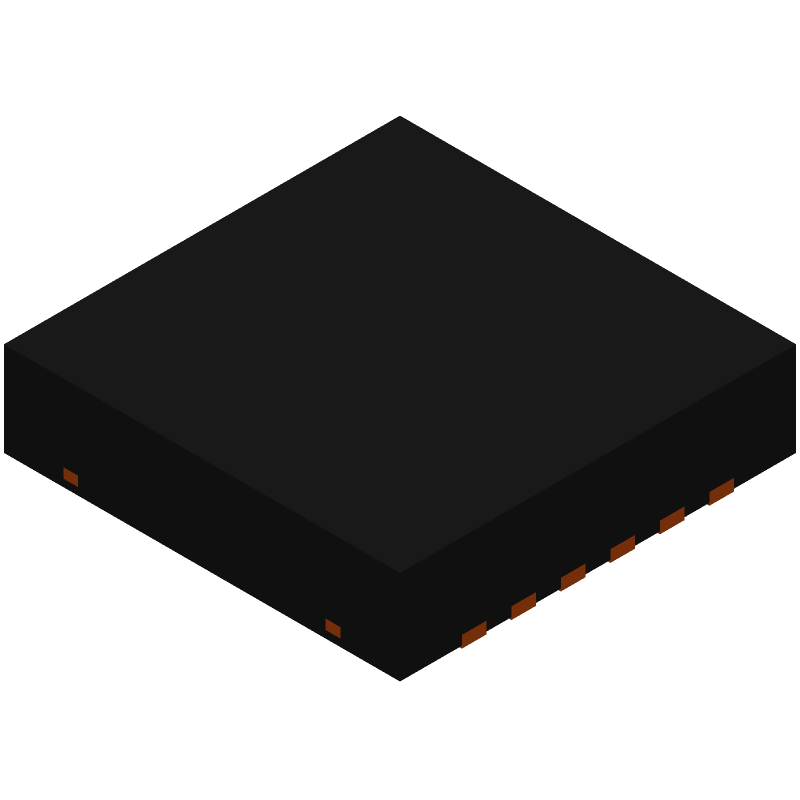

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM5160ADNTR by Texas Instruments
Results Overview of LM5160ADNTR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
LM5160ADNTR Information
LM5160ADNTR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM5160ADNTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-46121-1-ND
|
DigiKey | IC REG BCK FLYBACK ADJ 2A 12WSON Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1225 In Stock |
|
$1.4201 / $2.7800 | Buy Now |
|
DISTI #
595-LM5160ADNTR
|
Mouser Electronics | Switching Voltage Regulators Wide Input 65V 1.5A Synch Buck A 595-LM5160ADNTT RoHS: Compliant | 978 |
|
$1.3500 / $2.7800 | Buy Now |
|
|
Bristol Electronics | 1000 |
|
RFQ | ||
|
|
LCSC | Step-down type Adjustable 2A 4.5V65V WSON-12-EP(4x4) DC-DC Converters ROHS | 967 |
|
$0.7829 / $1.4881 | Buy Now |
|
|
Win Source Electronics | Wide Input 65V 2A Synchronous Buck / Fly-Buck Converter | IC REG BUCK FLYBCK ADJ 12WSON / Conv DC-DC 4.5V to 65V Synchronous Step Down Single-Out 2V to 60V 1.5A Automotive 12-Pin WSON EP T/R | 24200 |
|
$0.8579 / $1.2869 | Buy Now |
Part Details for LM5160ADNTR
LM5160ADNTR CAD Models
LM5160ADNTR Part Data Attributes
|
|
LM5160ADNTR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM5160ADNTR
Texas Instruments
LM5160A Wide Input 65V, 2A Synchronous Buck / Fly-Buck™ Converter 12-WSON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | WSON-12 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 65 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | S-PDSO-N12 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 60 V | |
| Output Voltage-Min | 2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC12,.16,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1000 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
Alternate Parts for LM5160ADNTR
This table gives cross-reference parts and alternative options found for LM5160ADNTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM5160ADNTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM5160DNTJ | Texas Instruments | $2.2675 | LM5160 wide input 65V, 2A synchronous buck/Fly-Buck™ converter 12-WSON -40 to 125 | LM5160ADNTR vs LM5160DNTJ |
| MAX15062AATA+T | Analog Devices Inc | $2.3493 | 60V, 300mA, Ultra-Small, High-Efficiency, Synchronous Step-Down DC-DC Converters, 8-LFCSP-2X2X0.75, 8 Pins, -40 to 125C | LM5160ADNTR vs MAX15062AATA+T |
| LM5160ADNTJ | Texas Instruments | $2.3824 | LM5160A Wide Input 65V, 2A Synchronous Buck / Fly-Buck™ Converter 12-WSON -40 to 125 | LM5160ADNTR vs LM5160ADNTJ |
| LM5160DNTR | Texas Instruments | Check for Price | LM5160 wide input 65V, 2A synchronous buck/Fly-Buck™ converter 12-WSON -40 to 125 | LM5160ADNTR vs LM5160DNTR |
| MAX15062AATA+ | Maxim Integrated Products | Check for Price | Switching Regulator, Current-mode, 535kHz Switching Freq-Max, BICMOS, PDSO8, 2 X 2 MM, ROHS COMPLIANT, TDFN-8 | LM5160ADNTR vs MAX15062AATA+ |
LM5160ADNTR Frequently Asked Questions (FAQ)
-
The LM5160ADNTR can handle input voltages up to 65V, but it's recommended to keep it below 60V for reliable operation.
-
Make sure to provide adequate heat sinking, keep the device away from heat sources, and ensure good airflow around the device. Also, monitor the junction temperature (TJ) and adjust the operating conditions accordingly.
-
Use a 4-layer PCB with a solid ground plane, keep the input and output capacitors close to the device, and use short, wide traces for the high-current paths. Refer to the TI application note SLUA623 for more details.
-
Choose an inductor with a saturation current rating above the peak current of the converter, and a DC resistance (DCR) that minimizes losses. Use the TI inductor selection tool or consult the datasheet for more information.
-
Use a low-ESR, high-frequency ceramic capacitor (e.g., X7R or X5R) with a voltage rating above the maximum input voltage. Avoid using electrolytic capacitors due to their high ESR.
