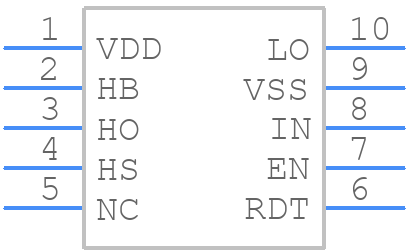

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM5106MM by Texas Instruments
Results Overview of LM5106MM by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LM5106MM Information
LM5106MM by Texas Instruments is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM5106MM/NOPB | Texas Instruments | 100V Half Bridge Gate Driver with Programmable Dead-Time 10-VSSOP -40 to 125 | |
| LM5106MMX/NOPB | Texas Instruments | 100V Half Bridge Gate Driver with Programmable Dead-Time 10-VSSOP -40 to 125 |
Price & Stock for LM5106MM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Interface ICs | 672 |
|
RFQ | |
|
|
Win Source Electronics | 100-V Half-Bridge Gate Driver With Programmable Dead-Time | IC DVR HALF-BRIDGE HV 10-MSOP | 155088 |
|
$0.3000 / $0.3875 | Buy Now |
Part Details for LM5106MM
LM5106MM CAD Models
LM5106MM Part Data Attributes
|
|
LM5106MM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM5106MM
Texas Instruments
100V Half Bridge Gate Driver with Programmable Dead-Time 10-VSSOP -40 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | MSOP | |
| Package Description | MSOP-10 | |
| Pin Count | 10 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| High Side Driver | YES | |
| Interface IC Type | HALF BRIDGE BASED MOSFET DRIVER | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e0 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Peak Current Limit-Nom | 1.8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.09 mm | |
| Supply Voltage-Max | 14 V | |
| Supply Voltage-Min | 8 V | |
| Supply Voltage-Nom | 12 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Turn-off Time | 0.056 µs | |
| Turn-on Time | 0.69 µs | |
| Width | 3 mm |
Alternate Parts for LM5106MM
This table gives cross-reference parts and alternative options found for LM5106MM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM5106MM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM5106MMX | Texas Instruments | Check for Price | 1.8A HALF BRDG BASED MOSFET DRIVER, PDSO10, MSOP-10 | LM5106MM vs LM5106MMX |
LM5106MM Frequently Asked Questions (FAQ)
-
The LM5106MM can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
-
To ensure stability, make sure to follow the recommended layout and component selection guidelines, including the use of a 10uF ceramic capacitor at the VIN pin, and a 1uF ceramic capacitor at the VOUT pin. Also, keep the input and output capacitors close to the device.
-
The minimum input voltage required for the LM5106MM to operate is 2.7V, but it's recommended to use a minimum input voltage of 3V to ensure proper operation.
-
The LM5106MM is designed for low-current applications up to 500mA. For high-current applications, consider using a different device, such as the LM5166, which can handle up to 3A of output current.
-
The output voltage of the LM5106MM can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
