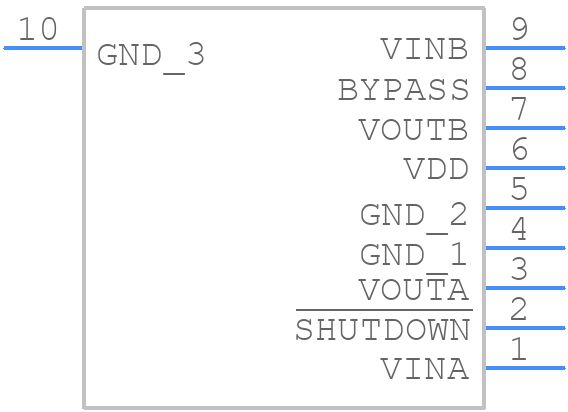

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM4950TS/NOPB by Texas Instruments
Results Overview of LM4950TS/NOPB by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
Price & Stock for LM4950TS/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM4950TS/NOPB-ND
|
DigiKey | IC AMP AB MONO/STER 7.5W TO263-9 Min Qty: 1 Lead time: 12 Weeks Container: Tube |
1159 In Stock |
|
$1.7158 / $3.2800 | Buy Now |
|
DISTI #
926-LM4950TS/NOPB
|
Mouser Electronics | Audio Amplifiers 7.5W MONO-BTL / 3.1W STEREO AUDIO PWR AM A 926-LM4950TSX/NOPB RoHS: Compliant | 6200 |
|
$1.7100 / $3.2800 | Buy Now |
|
DISTI #
J56:1989_00015131
|
Arrow Electronics | Audio Amp Speaker 1-CH Mono/2-CH Stereo 7.5W Class-AB 10-Pin(9+Tab) TO-263 Tube Min Qty: 45 Package Multiple: 45 Lead time: 12 Weeks Date Code: 2320 | Europe - 135 |
|
$1.5270 / $1.8180 | Buy Now |
|
DISTI #
LM4950TS
|
TME | IC: audio amplifier, Pout: 3.1W, 9.6÷16VDC, Ch: 2, Amp.class: AB Min Qty: 1 | 925 |
|
$1.7900 / $2.9000 | Buy Now |
|
|
Vyrian | General Purpose ICs | 6933 |
|
RFQ | |
|
|
Win Source Electronics | IC AMP AUDIO PWR 7.5W AB TO263-9 | 4790 |
|
$1.4598 / $2.1896 | Buy Now |
Part Details for LM4950TS/NOPB
LM4950TS/NOPB CAD Models
LM4950TS/NOPB Part Data Attributes
|
|
LM4950TS/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM4950TS/NOPB
Texas Instruments
3.1-W, mono, 9.6- to 16-V, analog input Class-AB audio amplifier 9-DDPAK/TO-263 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | D2PAK | |
| Package Description | ROHS COMPLIANT, PLASTIC, TO-263, 9 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Bandwidth-Nom | 20 kHz | |
| Consumer IC Type | AUDIO AMPLIFIER | |
| JESD-30 Code | R-PSSO-G9 | |
| JESD-609 Code | e3 | |
| Length | 10.16 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Power-Nom | 7.5 W | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-263 | |
| Package Equivalence Code | SMSIP9H,.5,38 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.72 mm | |
| Supply Current-Max | 30 mA | |
| Supply Voltage-Max (Vsup) | 16 V | |
| Supply Voltage-Min (Vsup) | 9.6 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.97 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 8.69 mm |
Alternate Parts for LM4950TS/NOPB
This table gives cross-reference parts and alternative options found for LM4950TS/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM4950TS/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM4950TS | National Semiconductor Corporation | Check for Price | IC 3.1 W, 2 CHANNEL, AUDIO AMPLIFIER, PSSO9, PLASTIC, TO-263, 9 PIN, Audio/Video Amplifier | LM4950TS/NOPB vs LM4950TS |
