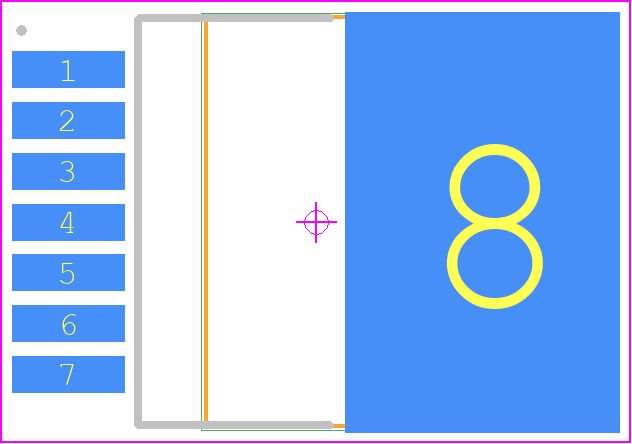

Footprint
-

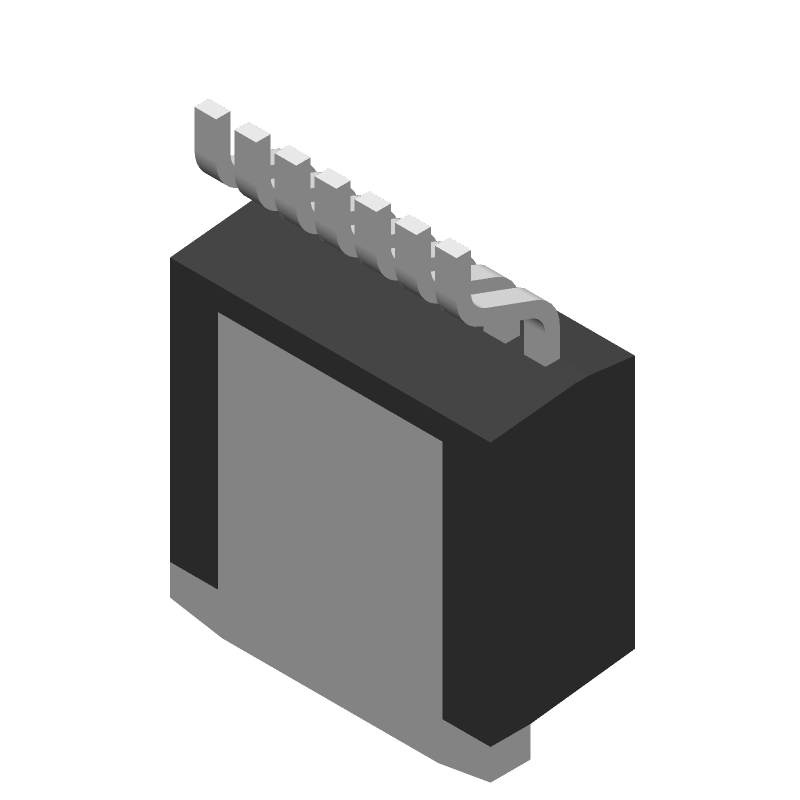

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM4752TS/NOPB by Texas Instruments
Results Overview of LM4752TS/NOPB by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DS96174CN/NOPB | Rochester Electronics LLC | DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16 | |
| LM611IM/NOPB | Rochester Electronics LLC | LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar |
Price & Stock for LM4752TS/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-44782-ND
|
DigiKey | IC AMP CLASS AB STER 11W TO263-7 Min Qty: 1 Lead time: 18 Weeks Container: Bulk |
275 In Stock |
|
$0.4489 / $0.9700 | Buy Now |
|
DISTI #
926-LM4752TS/NOPB
|
Mouser Electronics | Audio Amplifiers STEREO 11W AUDIO PWR AMP RoHS: Compliant | 4291 |
|
$0.4580 / $0.9700 | Buy Now |
|
DISTI #
J56:1989_00058358
|
Arrow Electronics | Audio Amp Speaker 2-CH Stereo 7W Class-AB 8-Pin(7+Tab) TO-263 Tube Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2449 | Europe - 872 |
|
$0.7588 / $1.9504 | Buy Now |
|
|
LCSC | Dual Channel 11Wx24 TO-263-7 Audio Amplifiers ROHS | 50 |
|
$0.7094 / $0.7441 | Buy Now |
Part Details for LM4752TS/NOPB
LM4752TS/NOPB CAD Models
LM4752TS/NOPB Part Data Attributes
|
|
LM4752TS/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM4752TS/NOPB
Texas Instruments
11-W, stereo, 9- to 32-V, analog input Class-AB audio amplifier 7-DDPAK/TO-263 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TO-220AB | |
| Package Description | ROHS COMPLIANT, PLASTIC, TO-220, DDPAK-7 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Bandwidth-Nom | 65 kHz | |
| Consumer IC Type | AUDIO AMPLIFIER | |
| Gain | 34 dB | |
| Harmonic Distortion | 10% | |
| JESD-30 Code | R-PSSO-G7 | |
| JESD-609 Code | e3 | |
| Length | 10.16 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Power-Nom | 11 W | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SMSIP7H,.55,50TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.79 mm | |
| Supply Current-Max | 20 mA | |
| Supply Voltage-Max (Vsup) | 16 V | |
| Supply Voltage-Min (Vsup) | 9.6 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 8.64 mm |
Alternate Parts for LM4752TS/NOPB
This table gives cross-reference parts and alternative options found for LM4752TS/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM4752TS/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM4752TS | Texas Instruments | Check for Price | 7W, 2 CHANNEL, AUDIO AMPLIFIER, PSSO7, TO-263, 7 PIN | LM4752TS/NOPB vs LM4752TS |
LM4752TS/NOPB Frequently Asked Questions (FAQ)
-
Texas Instruments recommends using a 10uF capacitor in parallel with a 0.1uF capacitor between the power supply pins (VIN and GND) to ensure stable operation.
-
Ensure good thermal conductivity by mounting the device on a heat sink or a PCB with a large copper area. Also, keep the device away from other heat sources and ensure good airflow.
-
The maximum power dissipation of the LM4752TS is 15W. However, this value can vary depending on the ambient temperature and the thermal resistance of the device.
-
Yes, the LM4752TS can be used in a bridged configuration to increase the power output. However, this requires careful consideration of the power supply voltage, output impedance, and thermal management.
-
Use a diode (e.g., 1N4001-1N4007) in parallel with the speaker to protect the LM4752TS from back-EMF damage. This diode should be connected in the reverse direction to the speaker.
