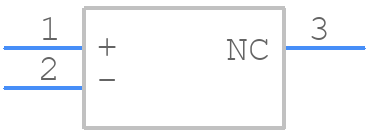

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM4040AIM3-3.0 by Texas Instruments
Results Overview of LM4040AIM3-3.0 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Healthcare
Medical Imaging
LM4040AIM3-3.0 Information
LM4040AIM3-3.0 by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM4040AIM3-3.0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Other Function Semiconductors | 436 |
|
RFQ | |
|
|
Win Source Electronics | IC VREF SHUNT 3V SOT23-3 | 40417 |
|
$1.0788 / $1.6181 | Buy Now |
Part Details for LM4040AIM3-3.0
LM4040AIM3-3.0 CAD Models
LM4040AIM3-3.0 Part Data Attributes
|
|
LM4040AIM3-3.0
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM4040AIM3-3.0
Texas Instruments
Precision Micropower Shunt Voltage Reference 3-SOT-23
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | PLASTIC, TO-236AB, SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e0 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 3.022 V | |
| Output Voltage-Min | 2.978 V | |
| Output Voltage-Nom | 3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 100 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Trim/Adjustable Output | NO | |
| Voltage Tolerance-Max | 0.1% | |
| Width | 1.3 mm |
Alternate Parts for LM4040AIM3-3.0
This table gives cross-reference parts and alternative options found for LM4040AIM3-3.0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM4040AIM3-3.0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM4040A30IDBZT | Texas Instruments | $1.8230 | Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 | LM4040AIM3-3.0 vs LM4040A30IDBZT |
| LM4040B30IDBZRG4 | Texas Instruments | Check for Price | Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 | LM4040AIM3-3.0 vs LM4040B30IDBZRG4 |
| LM4040AIM3-3.0+T | Analog Devices Inc | Check for Price | Improved Precision Micropower Shunt Voltage Reference with Multiple Reverse Breakdown Voltages, 3-SOT_23-N/A, 3 Pins, -40 to 85C | LM4040AIM3-3.0 vs LM4040AIM3-3.0+T |
| LM4040AIM3-3.0+ | Analog Devices Inc | Check for Price | Improved Precision Micropower Shunt Voltage Reference with Multiple Reverse Breakdown Voltages, 3-SOT_23-N/A, 3 Pins, -40 to 85C | LM4040AIM3-3.0 vs LM4040AIM3-3.0+ |
| LM4040AIM3-3.0+ | Maxim Integrated Products | Check for Price | Two Terminal Voltage Reference, 1 Output, 3V, BICMOS, PDSO3, SOT-23, 3 PIN | LM4040AIM3-3.0 vs LM4040AIM3-3.0+ |
LM4040AIM3-3.0 Frequently Asked Questions (FAQ)
-
The recommended input capacitor value is 10uF to 22uF, depending on the input voltage and output current requirements. A larger capacitor value can help improve noise rejection and stability.
-
Yes, the LM4040AIM3-3.0 can be used as a voltage reference for an ADC. Its low noise and high accuracy make it suitable for this application. However, ensure that the output current and noise requirements of the ADC are met.
-
To ensure stability, follow the recommended PCB layout guidelines, use a sufficient input capacitor, and avoid long output traces. Also, ensure that the output is not loaded with a capacitive load greater than 10nF.
-
The maximum output current of the LM4040AIM3-3.0 is 15mA. Exceeding this current may cause the output voltage to droop or the device to overheat.
-
The LM4040AIM3-3.0 is rated for operation up to 125°C. However, the accuracy and stability of the device may degrade at higher temperatures. Ensure that the device is properly heat-sinked and follow the recommended operating conditions.
