LM4040AIM3-3.0+T by:

Improved Precision Micropower Shunt Voltage Reference with Multiple Reverse Breakdown Voltages, 3-SOT_23-N/A, 3 Pins, -40 to 85C

Part Details for LM4040AIM3-3.0+T by Analog Devices Inc

Results Overview of LM4040AIM3-3.0+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Healthcare Medical Imaging

LM4040AIM3-3.0+T Information

LM4040AIM3-3.0+T by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LM4040AIM3-3.0+T

Part # Distributor Description Stock Price Buy
DISTI # 700-LM4040AIM3-3.0T
Mouser Electronics Voltage References Improved Precision Micropower Shunt Volt RoHS: Compliant 4535
  • 1 $2.9600
  • 10 $2.2200
  • 25 $2.0300
  • 100 $1.8200
  • 250 $1.7200
  • 500 $1.6200
  • 1,000 $1.5300
  • 2,500 $1.4800
  • 5,000 $1.4700
$1.4700 / $2.9600 Buy Now
DISTI # V72:2272_26357286
Arrow Electronics V-Ref Precision 3V 15mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Cut Strips Americas - 120
  • 1 $2.0830
  • 10 $1.7770
  • 25 $1.6790
  • 100 $1.4490
$1.4490 / $2.0830 Buy Now
Analog Devices Inc Improved Precision Micropower Min Qty: 1 Package Multiple: 1 1501
  • 1 $2.9600
  • 10 $2.2160
  • 25 $2.0296
  • 100 $1.8244
  • 250 $1.7265
  • 500 $1.6675
  • 1,000 $1.6189
  • 2,500 $1.5677
  • 5,000 $1.5368
$1.5368 / $2.9600 Buy Now
DISTI # 85920064
Verical V-Ref Precision 3V 15mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2330 Americas - 120
  • 5 $2.0830
  • 10 $1.7770
  • 25 $1.6790
  • 100 $1.4490
$1.4490 / $2.0830 Buy Now

Part Details for LM4040AIM3-3.0+T

LM4040AIM3-3.0+T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

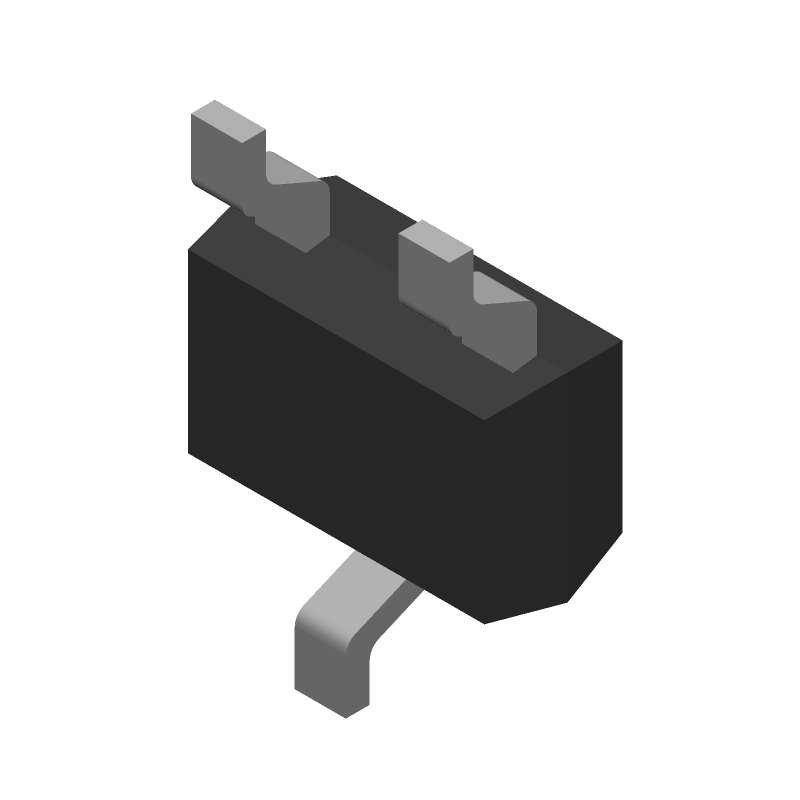

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM4040AIM3-3.0+T Part Data Attributes

Parametric Data
LM4040AIM3-3.0+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LM4040AIM3-3.0+T Analog Devices Inc Improved Precision Micropower Shunt Voltage Reference with Multiple Reverse Breakdown Voltages, 3-SOT_23-N/A, 3 Pins, -40 to 85C
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 3-SOT_23-N/A
Package Description SOT-23, 3 PIN
Pin Count 3
Manufacturer Package Code 3-SOT_23-N/A
Reach Compliance Code compliant
Date Of Intro 2000-07-15
Samacsys Manufacturer Analog Devices
Analog IC - Other Type TWO TERMINAL VOLTAGE REFERENCE
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Length 2.92 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Voltage-Max 3.003 V
Output Voltage-Min 2.997 V
Output Voltage-Nom 3 V
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TO-236
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.12 mm
Surface Mount YES
Technology BICMOS
Temp Coef of Voltage-Max 100 ppm/°C
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Trim/Adjustable Output NO
Voltage Tolerance-Max 0.1%
Width 1.3 mm

Alternate Parts for LM4040AIM3-3.0+T

This table gives cross-reference parts and alternative options found for LM4040AIM3-3.0+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM4040AIM3-3.0+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LM4040A30IDBZT Texas Instruments $1.8230 Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 LM4040AIM3-3.0+T vs LM4040A30IDBZT
LM4040B30IDBZRG4 Texas Instruments Check for Price Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 LM4040AIM3-3.0+T vs LM4040B30IDBZRG4
LM4040AIM3-3.0+ Analog Devices Inc Check for Price Improved Precision Micropower Shunt Voltage Reference with Multiple Reverse Breakdown Voltages, 3-SOT_23-N/A, 3 Pins, -40 to 85C LM4040AIM3-3.0+T vs LM4040AIM3-3.0+
LM4040AIM3-3.0+ Maxim Integrated Products Check for Price Two Terminal Voltage Reference, 1 Output, 3V, BICMOS, PDSO3, SOT-23, 3 PIN LM4040AIM3-3.0+T vs LM4040AIM3-3.0+
LM4040A30IDBZRG4 Texas Instruments Check for Price Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 LM4040AIM3-3.0+T vs LM4040A30IDBZRG4
Part Number Manufacturer Composite Price Description Compare
LM4040C30IDBZR Texas Instruments $0.4149 Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 LM4040AIM3-3.0+T vs LM4040C30IDBZR
LM4040AIM3X-3.0/NOPB Texas Instruments $1.0845 100-ppm/°C precision micropower shunt voltage reference 3-SOT-23 LM4040AIM3-3.0+T vs LM4040AIM3X-3.0/NOPB
LM4040B30IDBZT Texas Instruments $1.1757 Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 LM4040AIM3-3.0+T vs LM4040B30IDBZT
LM4040C30QDBZRG4 Texas Instruments Check for Price 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3V, PDSO3, GREEN, PLASTIC, SOT-23, 3 PIN LM4040AIM3-3.0+T vs LM4040C30QDBZRG4
LM4040AIM3-3.0-T Maxim Integrated Products Check for Price Two Terminal Voltage Reference, 1 Output, 3V, BICMOS, PDSO3, SOT-23, 3 PIN LM4040AIM3-3.0+T vs LM4040AIM3-3.0-T
LM4040AIM3X-3.0/NOPB National Semiconductor Corporation Check for Price IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3 V, PDSO3, PLASTIC, TO-236AB, SOT-23, 3 PIN, Voltage Reference LM4040AIM3-3.0+T vs LM4040AIM3X-3.0/NOPB
LM4040C30IDBZTG4 Texas Instruments Check for Price Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85 LM4040AIM3-3.0+T vs LM4040C30IDBZTG4
LM4040AIM3-3.0 National Semiconductor Corporation Check for Price Two Terminal Voltage Reference, 1 Output, 3V, BIPolar, PDSO3 LM4040AIM3-3.0+T vs LM4040AIM3-3.0
LM4040AIM3X-3.0 National Semiconductor Corporation Check for Price Two Terminal Voltage Reference, 1 Output, 3V, BIPolar, PDSO3 LM4040AIM3-3.0+T vs LM4040AIM3X-3.0
LM4040AEM3-3.0/V+T Maxim Integrated Products Check for Price Two Terminal Voltage Reference, 3V, BICMOS, LM4040AIM3-3.0+T vs LM4040AEM3-3.0/V+T

LM4040AIM3-3.0+T Related Parts

LM4040AIM3-3.0+T Frequently Asked Questions (FAQ)

  • A good PCB layout for the LM4040AIM3-3.0+T involves keeping the input and output pins as close as possible to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a bypass capacitor between the input pin and ground to reduce noise and improve stability.

  • To ensure stability, make sure to follow the recommended PCB layout, use a bypass capacitor between the input pin and ground, and keep the output capacitor value within the recommended range (10uF to 100uF). Additionally, avoid using long input and output traces, and keep the device away from high-frequency noise sources.

  • The LM4040AIM3-3.0+T can source up to 15mA and sink up to 10mA. However, it's recommended to keep the output current within 5mA to ensure optimal performance and stability.

  • Yes, the LM4040AIM3-3.0+T can be used as a voltage reference for an ADC or DAC. Its low noise and high accuracy make it suitable for precision analog-to-digital or digital-to-analog conversions. However, make sure to follow the recommended PCB layout and decoupling guidelines to ensure optimal performance.

  • The power dissipation of the LM4040AIM3-3.0+T can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Make sure to consider the maximum power dissipation rating of the device (250mW) and ensure proper thermal management to prevent overheating.
