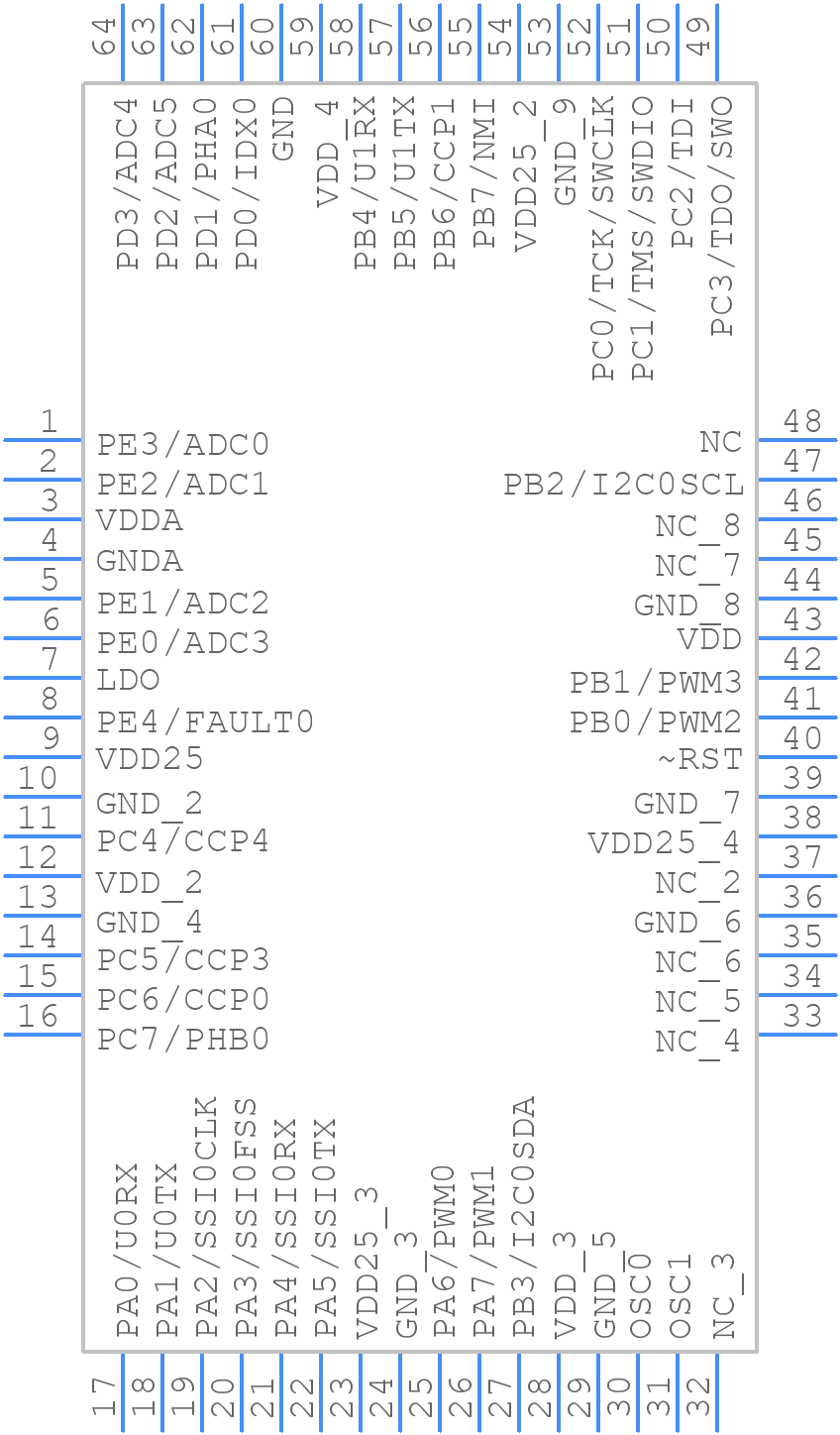

Part Symbol
-

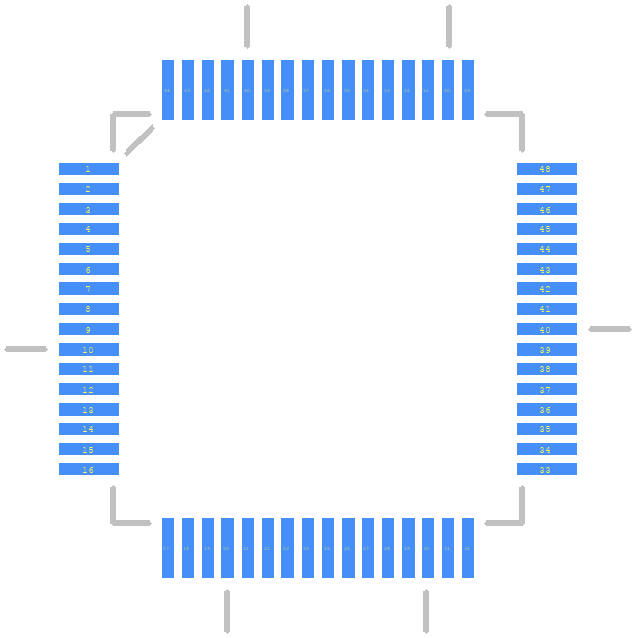

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM3S1626-IQR50-A0T by Texas Instruments
Results Overview of LM3S1626-IQR50-A0T by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Space Technology
Internet of Things (IoT)
Industrial Automation
Financial Technology (Fintech)
Transportation and Logistics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Robotics and Drones
LM3S1626-IQR50-A0T Information
LM3S1626-IQR50-A0T by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for LM3S1626-IQR50-A0T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 159 |
|
RFQ |
Part Details for LM3S1626-IQR50-A0T
LM3S1626-IQR50-A0T CAD Models
LM3S1626-IQR50-A0T Part Data Attributes
|
|
LM3S1626-IQR50-A0T
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM3S1626-IQR50-A0T
Texas Instruments
Stellaris LM3S Microcontroller 64-LQFP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | LFQFP, QFP64,.47SQ,20 | |
| Pin Count | 64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | CORTEX-M3 | |
| Clock Frequency-Max | 16.384 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 1 | |
| Number of External Interrupts | ||
| Number of I/O Lines | 33 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 64 | |
| Number of Timers | 4 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP64,.47SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 32768 | |
| ROM (words) | 131072 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 50 MHz | |
| Supply Voltage-Max | 2.75 V | |
| Supply Voltage-Min | 2.5 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for LM3S1626-IQR50-A0T
This table gives cross-reference parts and alternative options found for LM3S1626-IQR50-A0T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM3S1626-IQR50-A0T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM3S1626-IQR50-A0 | Texas Instruments | Check for Price | Stellaris LM3S Microcontroller 64-LQFP -40 to 85 | LM3S1626-IQR50-A0T vs LM3S1626-IQR50-A0 |
| LM3S5732-IQR50-A0T | Texas Instruments | Check for Price | Stellaris LM3S Microcontroller 64-LQFP -40 to 85 | LM3S1626-IQR50-A0T vs LM3S5732-IQR50-A0T |
| LM3S2776-IQR50-A0 | Texas Instruments | Check for Price | Stellaris LM3S Microcontroller 64-LQFP -40 to 85 | LM3S1626-IQR50-A0T vs LM3S2776-IQR50-A0 |
| LM3S1607-IQR50-A0 | Texas Instruments | Check for Price | Stellaris LM3S Microcontroller 64-LQFP -40 to 85 | LM3S1626-IQR50-A0T vs LM3S1607-IQR50-A0 |
LM3S1626-IQR50-A0T Frequently Asked Questions (FAQ)
-
The LM3S1626-IQR50-A0T has an operating temperature range of -40°C to 85°C.
-
The clock source can be configured using the PLL (Phase-Locked Loop) and OSC (Oscillator) registers. The PLL can be used to multiply the clock frequency, and the OSC register is used to select the clock source (e.g., internal oscillator, external crystal, or external clock).
-
The maximum current consumption of the LM3S1626-IQR50-A0T is approximately 250 mA at 3.3V and 50 MHz.
-
The Ethernet MAC and PHY can be used by configuring the Ethernet registers and using the RMII (Reduced Media Independent Interface) interface to connect to an external PHY. The PHY can be configured using the PHY registers.
-
The LM3S1626-IQR50-A0T has 256 KB of flash memory and 64 KB of SRAM.
