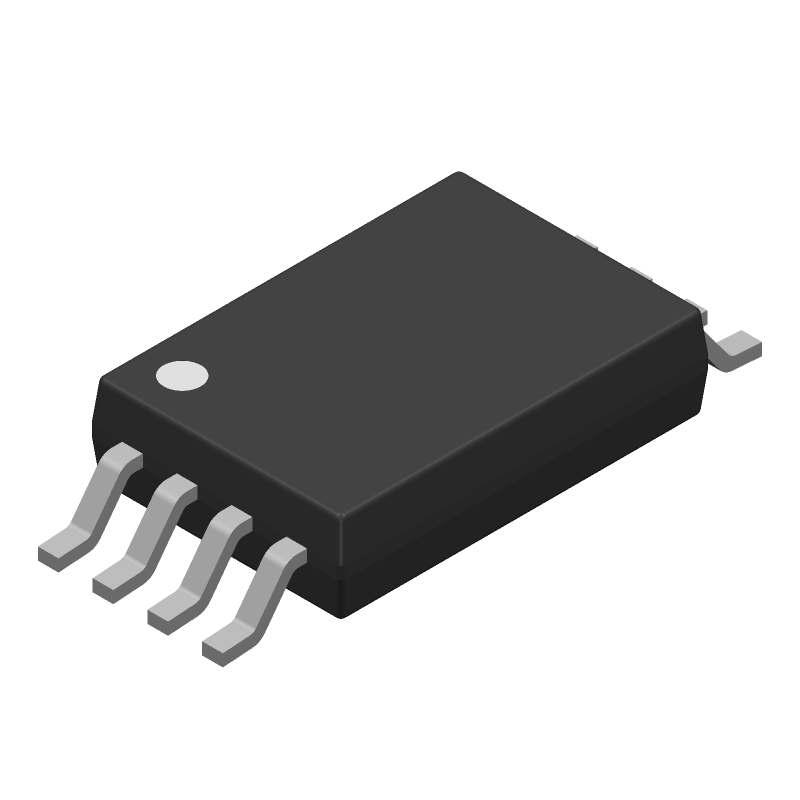

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM393FVT-E2 by ROHM Semiconductor
Results Overview of LM393FVT-E2 by ROHM Semiconductor
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM393FVT-E2 Information
LM393FVT-E2 by ROHM Semiconductor is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM393FVT-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
846-LM393FVT-E2CT-ND
|
DigiKey | IC COMPARATOR 2 GEN PUR 8TSSOP Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5055 In Stock |
|
$0.3571 / $0.8200 | Buy Now |
|
DISTI #
755-LM393FVT-E2
|
Mouser Electronics | Analog Comparators GROUND SENSE COMPARATOR RoHS: Compliant | 28788 |
|
$0.3520 / $0.8200 | Buy Now |
|
DISTI #
65057965
|
Verical | Comparator Dual ±16V/32V 8-Pin TSSOP-B T/R RoHS: Compliant Min Qty: 424 Package Multiple: 1 Date Code: 2201 | Americas - 2164 |
|
$0.1725 / $0.1850 | Buy Now |
|
|
Quest Components | 1731 |
|
$0.2080 / $0.5200 | Buy Now | |
|
DISTI #
LM393FVT-E2
|
TTI | Analog Comparators GROUND SENSE COMPARATOR RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.4470 / $0.4740 | Buy Now |
Part Details for LM393FVT-E2
LM393FVT-E2 CAD Models
LM393FVT-E2 Part Data Attributes
|
|
LM393FVT-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
LM393FVT-E2
ROHM Semiconductor
Comparator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | TSSOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Amplifier Type | COMPARATOR | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.4 mm | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | OPEN-COLLECTOR | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Response Time-Nom | 1000 ns | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 1.5 mA | |
| Supply Voltage Limit-Max | 36 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3 mm |
LM393FVT-E2 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the LM393FVT-E2 is 2.0V to 36V, although it can operate up to 40V with reduced performance.
-
Use voltage dividers or resistors to limit the input voltage to the comparator, and consider adding overvoltage protection circuits to prevent damage from voltage spikes or transients.
-
The typical propagation delay of the LM393FVT-E2 is around 15ns, but this can vary depending on the operating voltage, temperature, and input signal characteristics.
-
No, the LM393FVT-E2 is a comparator, not an amplifier. It is designed to compare two input voltages and output a digital signal indicating which input is higher or lower, but it is not intended to amplify signals.
-
The open-drain output of the LM393FVT-E2 requires an external pull-up resistor to VCC to function correctly. This resistor should be chosen based on the specific application and the desired output voltage level.
