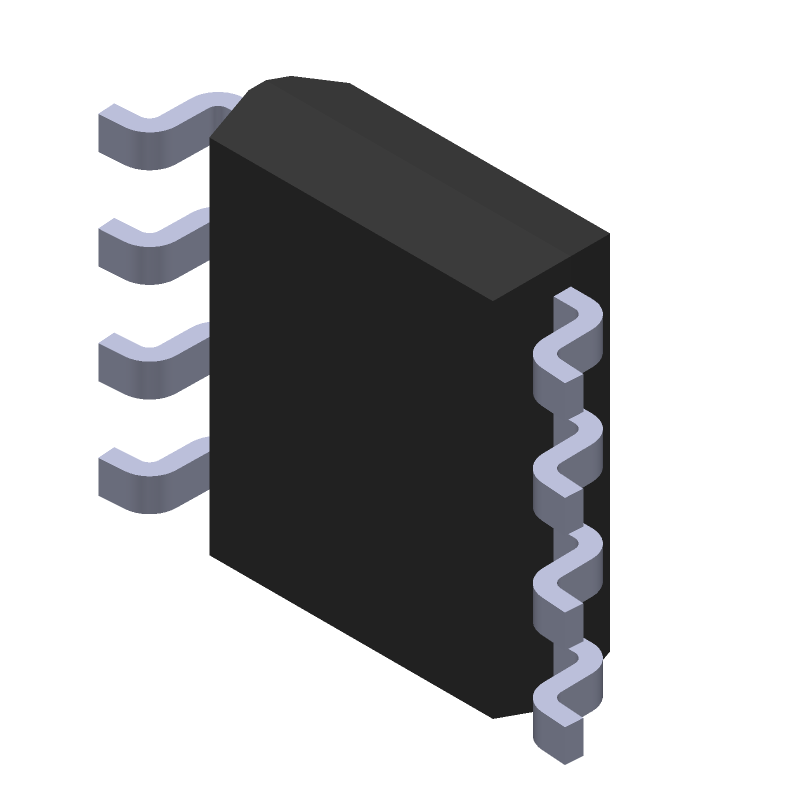

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM393D by onsemi
Results Overview of LM393D by onsemi
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM393D Information
LM393D by onsemi is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM393DGKRG4 | Texas Instruments | Dual Differential Comparator 8-VSSOP 0 to 70 | |
| LM393DG4 | Texas Instruments | Dual Differential Comparator 8-SOIC 0 to 70 | |
| LM393DGKR | Texas Instruments | Dual Differential Comparator 8-VSSOP 0 to 70 |
Price & Stock for LM393D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
488-LM393D-ND
|
DigiKey | COMPARATOR, DUAL, LOW OFFSET VOL Lead time: 8 Weeks Container: Bulk | Limited Supply - Call |
|
Buy Now | |
|
|
Bristol Electronics | 2985 |
|
RFQ | ||
|
|
Bristol Electronics | 1680 |
|
RFQ | ||
|
|
Bristol Electronics | 24 |
|
RFQ | ||
|
|
Quest Components | DUAL COMPARATOR, 9000 UV OFFSET-MAX, 1300 NS RESPONSE TIME, PDSO8 | 1238 |
|
$0.3301 / $0.7923 | Buy Now |
|
|
Quest Components | DUAL COMPARATOR, 9000 UV OFFSET-MAX, 1300 NS RESPONSE TIME, PDSO8 | 1199 |
|
$0.5282 / $1.3205 | Buy Now |
|
|
Quest Components | DUAL COMPARATOR, 9000 UV OFFSET-MAX, 1300 NS RESPONSE TIME, PDSO8 | 144 |
|
$0.2880 / $0.9600 | Buy Now |
|
|
Rochester Electronics | LM393 Dual differential comparator, commercial grade RoHS: Compliant Status: Obsolete Min Qty: 1 | 453 |
|
$0.2982 / $0.4810 | Buy Now |
Part Details for LM393D
LM393D CAD Models
LM393D Part Data Attributes
|
|
LM393D
onsemi
Buy Now
Datasheet
|
Compare Parts:
LM393D
onsemi
Comparator, Dual, Low Offset Voltage, SOIC-8 Narrow Body, 98-TUBE
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 Narrow Body | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Amplifier Type | COMPARATOR | |
| Average Bias Current-Max (IIB) | 0.4 µA | |
| Input Offset Voltage-Max | 9000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e0 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Type | OPEN-COLLECTOR | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 235 | |
| Qualification Status | Not Qualified | |
| Response Time-Nom | 1300 ns | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 2.5 mA | |
| Supply Voltage Limit-Max | 36 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for LM393D
This table gives cross-reference parts and alternative options found for LM393D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM393D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM293DG4 | Texas Instruments | Check for Price | Dual Differential Comparator 8-SOIC -25 to 85 | LM393D vs LM293DG4 |
| LM293DR2G | onsemi | Check for Price | Comparator, Dual, Low Offset Voltage, SOIC-8 Narrow Body, 2500-REEL | LM393D vs LM293DR2G |
| LM393D | STMicroelectronics | Check for Price | Low power dual voltage comparator | LM393D vs LM393D |
| LM293DRG3 | Texas Instruments | Check for Price | Dual differential comparator, industrial grade 8-SOIC -25 to 85 | LM393D vs LM293DRG3 |
| LM293MDREP | Texas Instruments | Check for Price | Enhanced Product Dual Differential Comparators 8-SOIC -55 to 125 | LM393D vs LM293MDREP |
| LM393DR2 | Texas Instruments | Check for Price | DUAL COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO8 | LM393D vs LM393DR2 |
| LM393DE4 | Texas Instruments | Check for Price | Dual differential comparator, commercial grade 8-SOIC 0 to 70 | LM393D vs LM393DE4 |
| LM393D | NXP Semiconductors | Check for Price | IC DUAL COMPARATOR, 9000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, PDSO8, 3.90 MM, PLASTIC, MS-012, SOT-96-1, SOP-8, Comparator | LM393D vs LM393D |
| LM393DR2 | Motorola Semiconductor Products | Check for Price | Comparator, 2 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO8, PLASTIC, SO-8 | LM393D vs LM393DR2 |
| LM393D | Motorola Mobility LLC | Check for Price | DUAL COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO8, PLASTIC, SO-8 | LM393D vs LM393D |
LM393D Frequently Asked Questions (FAQ)
-
The maximum voltage that can be applied to the input pins is the supply voltage (Vcc) + 0.3V. Exceeding this voltage can cause damage to the device.
-
To prevent oscillation, ensure that the input signals are properly filtered and decoupled, and that the output is properly loaded. Additionally, adding a small capacitor (e.g. 10nF) between the output and ground can help to reduce oscillations.
-
The minimum input voltage required for the comparator to function correctly is typically around 1.5V to 2V, depending on the specific application and noise conditions.
-
No, the LM393D is a comparator, not an amplifier. It is designed to compare two input voltages and output a digital signal indicating which input is higher. It is not suitable for amplifying signals.
-
The pull-up resistor value depends on the specific application and the load connected to the output. A general rule of thumb is to choose a value between 1kΩ and 10kΩ. A higher value reduces power consumption but increases the rise time of the output signal.
