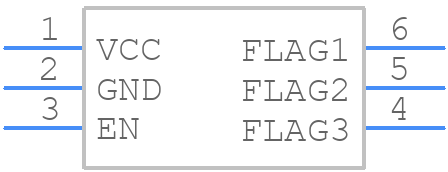

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM3880QMF-1AC/NOPB by Texas Instruments
Results Overview of LM3880QMF-1AC/NOPB by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LM3880QMF-1AC/NOPB Information
LM3880QMF-1AC/NOPB by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for LM3880QMF-1AC/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LM3880QMF-1AC/NOPBCT-ND
|
DigiKey | IC PWR SUPPLY SEQUENCER SOT23-6 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2458 In Stock |
|
$0.8053 / $1.6800 | Buy Now |
|
DISTI #
926-LM3880QMF1ACNOPB
|
Mouser Electronics | Supervisory Circuits Automotive grade 3 r ail simple power seq A 926-LM3880QMFE1ACNPB RoHS: Compliant | 1261 |
|
$0.8110 / $1.6800 | Buy Now |
|
|
LCSC | Active High 2.7V5.5V 3 SOT-23-6 Supervisor and Reset ICs ROHS | 36 |
|
$0.9992 / $1.0581 | Buy Now |
Part Details for LM3880QMF-1AC/NOPB
LM3880QMF-1AC/NOPB CAD Models
LM3880QMF-1AC/NOPB Part Data Attributes
|
|
LM3880QMF-1AC/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM3880QMF-1AC/NOPB
Texas Instruments
Automotive grade 3 rail simple power sequencer with fixed time delay 6-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Current-Max (Isup) | 0.08 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
LM3880QMF-1AC/NOPB Frequently Asked Questions (FAQ)
-
A good PCB layout for the LM3880QMF-1AC/NOPB involves keeping the input and output traces short and separate, using a star-ground configuration, and placing the decoupling capacitors close to the IC. A 4-layer PCB with a dedicated ground plane is also recommended.
-
Choose input capacitors with a high ripple current rating and low ESR (Equivalent Series Resistance) to minimize distortion. Output capacitors should have a high capacitance value and low ESR to ensure good low-frequency response and stability. Film capacitors or electrolytic capacitors with a high ripple current rating are good options.
-
The maximum power dissipation of the LM3880QMF-1AC/NOPB is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 20W at 25°C ambient temperature. However, this value can be derated to 15W at 50°C ambient temperature.
-
Use voltage regulators or overvoltage protection circuits to ensure that the input voltage to the LM3880QMF-1AC/NOPB remains within the recommended operating range. Undervoltage protection can be achieved using a voltage supervisor IC or a simple resistor-divider network.
-
The recommended heatsink for the LM3880QMF-1AC/NOPB depends on the power dissipation and ambient temperature. A heatsink with a thermal resistance of 10°C/W or lower is recommended. A small heatsink with a thermal resistance of around 5°C/W can be used for low-power applications, while a larger heatsink with a thermal resistance of around 2°C/W may be required for high-power applications.
