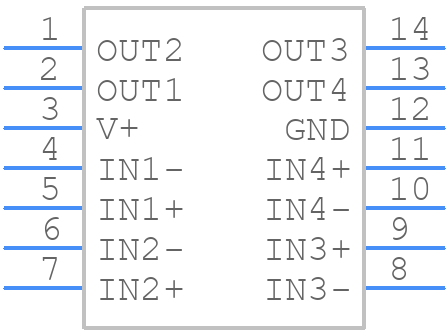

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM339LVDR by Texas Instruments
Results Overview of LM339LVDR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM339LVDR Information
LM339LVDR by Texas Instruments is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM339LVDR | Texas Instruments | 5.5-V, low-voltage standard quad-channel comparator with 1-µs delay 14-SOIC -40 to 125 |
Price & Stock for LM339LVDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LM339LVDRCT-ND
|
DigiKey | 5.5-V, LOW-VOLTAGE STANDARD QUAD Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1277 / $0.3100 | Buy Now |
|
DISTI #
595-LM339LVDR
|
Mouser Electronics | Analog Comparators 5.5-V low-voltage s tandard quad-channel RoHS: Compliant | 3924 |
|
$0.1250 / $0.3800 | Buy Now |
Part Details for LM339LVDR
LM339LVDR CAD Models
LM339LVDR Part Data Attributes
|
|
LM339LVDR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM339LVDR
Texas Instruments
5.5-V, low-voltage standard quad-channel comparator with 1-µs delay 14-SOIC -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOIC-14 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | COMPARATOR | |
| Bias Current-Max (IIB) @25C | 0.000005 µA | |
| Input Offset Voltage-Max | 2000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | OPEN-COLLECTOR; OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 13 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Response Time-Nom | 600 ns | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 0.2 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
LM339LVDR Frequently Asked Questions (FAQ)
-
The LM339LVDR can operate from -40°C to 125°C, but the recommended operating temperature range is -40°C to 85°C for optimal performance.
-
Yes, the LM339LVDR can be used as a comparator with a single supply voltage, but the input common-mode voltage range is limited to within 1.5V of the supply rails. Additionally, the output voltage swing will be limited to within 1.5V of the supply rails.
-
To ensure that the LM339LVDR is immune to latch-up, it is recommended to follow proper PCB layout and design practices, such as keeping the input and output traces separate, using a ground plane, and avoiding high-speed switching on the inputs.
-
The maximum input impedance of the LM339LVDR is typically around 10^12 ohms, but this can vary depending on the specific application and operating conditions.
-
No, the LM339LVDR is not designed to be used as a voltage reference. It is a comparator, and its output is intended to be used as a digital signal, not as a stable voltage reference.
