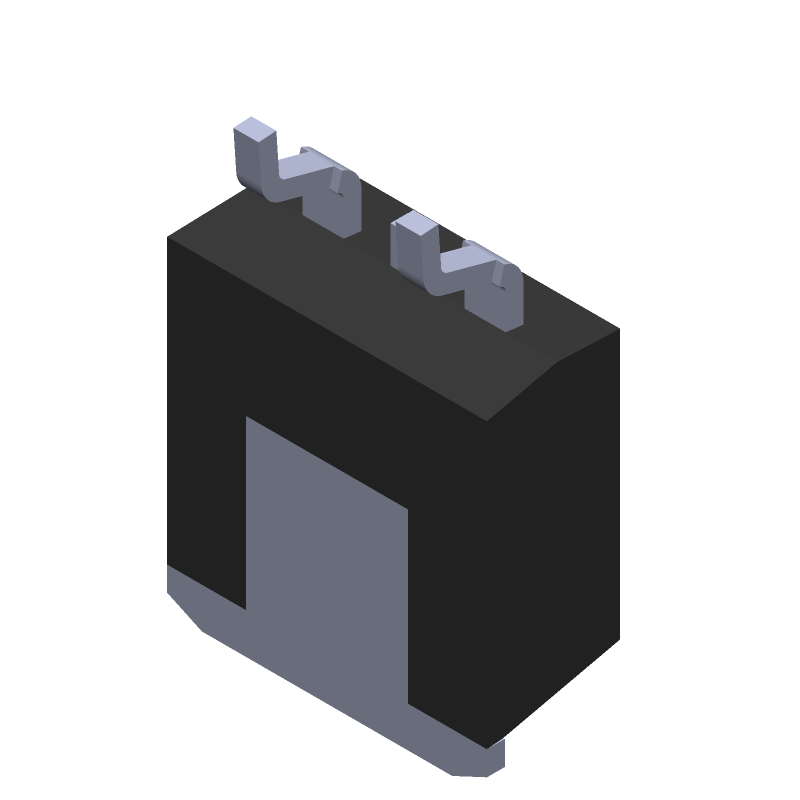

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM337D2TR4G by onsemi
Results Overview of LM337D2TR4G by onsemi
- Distributor Offerings: (29 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM337D2TR4G Information
LM337D2TR4G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM337D2TR4G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y6443
|
Newark | Linear Volt Reg, -37V, 1.5A, To-253-3, Fixed Output Voltage Nom.:-, Adjustable Output Voltage Min:-1.2V, Adjustable Output Voltage Max:-37V, Input Voltage Min:-, Input Voltage Max:40V, Product Range:-, Output Current:1.5A, Output Rohs Compliant: Yes |Onsemi LM337D2TR4G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1583 |
|
$0.4860 | Buy Now |
|
DISTI #
71J5018
|
Newark | Ic, volt Regulator, adjustable,-1.2 To -37V, bipolar, sip,3Pin, plastic Rohs Compliant: Yes |Onsemi LM337D2TR4G RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5330 / $0.7210 | Buy Now |
|
DISTI #
LM337D2TR4GOSCT-ND
|
DigiKey | IC REG LIN NEG ADJ 1.5A D2PAK-3 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2333 In Stock |
|
$0.5238 / $2.1000 | Buy Now |
|
DISTI #
LM337D2TR4G
|
Avnet Americas | Linear Voltage Regulator, Adjustable, Negative, 2.5 V to 40 V, -1.2 V to -37 V, 1.5 A, 3 Pins, TO-263 (D2PAK) - Tape and Reel (Alt: LM337D2TR4G) RoHS: Compliant Min Qty: 2400 Package Multiple: 800 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.2928 / $0.3114 | Buy Now |
|
DISTI #
863-LM337D2TR4G
|
Mouser Electronics | Linear Voltage Regulators 1.5A -1.2 to -37V ADJ Negative RoHS: Compliant | 4813 |
|
$0.5230 / $2.0800 | Buy Now |
|
DISTI #
E02:0323_00078054
|
Arrow Electronics | LDO Regulator Neg -1.2V to -37V 0.4A 3-Pin(2+Tab) D2PAK T/R Min Qty: 800 Package Multiple: 800 Lead time: 8 Weeks Date Code: 2446 | Europe - 11200 |
|
$0.4524 / $0.4707 | Buy Now |
|
DISTI #
V72:2272_07296050
|
Arrow Electronics | LDO Regulator Neg -1.2V to -37V 0.4A 3-Pin(2+Tab) D2PAK T/R Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2452 Container: Cut Strips | Americas - 2400 |
|
$0.4083 / $1.9455 | Buy Now |
|
|
Future Electronics | LM337 Series 1.5 A 1.2 to 37 V ADJ Output Negative Voltage Regulator - D2PAK RoHS: Compliant pbFree: Yes Min Qty: 800 Package Multiple: 800 Lead time: 8 Weeks Container: Reel | 2400Reel |
|
$0.2950 / $0.3150 | Buy Now |
|
|
Onlinecomponents.com | Linear Voltage Regulator, 1.5 A, High PSRR, Adjustable, Negative TJ = 0° to +125°C RoHS: Compliant |
1600 In Stock |
|
$0.4624 / $0.4765 | Buy Now |
|
DISTI #
87211770
|
Verical | LDO Regulator Neg -1.2V to -37V 0.4A 3-Pin(2+Tab) D2PAK T/R Min Qty: 800 Package Multiple: 800 Date Code: 2446 | Americas - 11200 |
|
$0.4537 / $0.4721 | Buy Now |
Part Details for LM337D2TR4G
LM337D2TR4G CAD Models
LM337D2TR4G Part Data Attributes
|
|
LM337D2TR4G
onsemi
Buy Now
Datasheet
|
Compare Parts:
LM337D2TR4G
onsemi
Linear Voltage Regulator, 1.5 A, High PSRR, Adjustable, Negative TJ = 0° to +125°C, 3 LEAD D2PAK, 800-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | 3 LEAD D2PAK | |
| Pin Count | 3 | |
| Manufacturer Package Code | 936-03 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Nom | 3 V | |
| Input-Output Voltage Differential-Max | 40 V | |
| Input-Output Voltage Differential-Min | 3 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Length | 10.02 mm | |
| Line Regulation-Max (%/V) | 0.07 | |
| Load Regulation-Max(%) | 1.5% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 1.5 A | |
| Output Voltage1-Max | 37 V | |
| Output Voltage1-Min | 1.2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-263 | |
| Package Equivalence Code | SMSIP3H,.55TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | ADJUSTABLE NEGATIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 4.576 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9.1945 mm |
