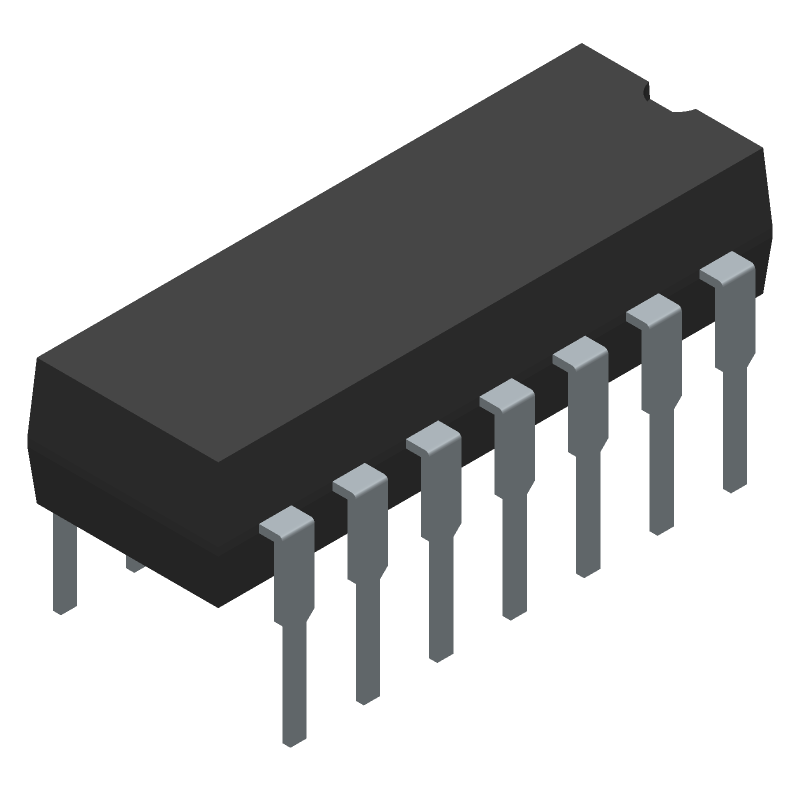

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM324N by onsemi
Results Overview of LM324N by onsemi
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM324N Information
LM324N by onsemi is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM324N | Texas Instruments | Quadruple Operational Amplifier 14-PDIP 0 to 70 | |
| LM324NSR | Texas Instruments | Quadruple Operational Amplifier 14-SO 0 to 70 | |
| LM324NSRE4 | Texas Instruments | Quadruple Operational Amplifier 14-SO 0 to 70 |
Price & Stock for LM324N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 422 |
|
RFQ | ||
|
|
Bristol Electronics | 51 |
|
RFQ | ||
|
|
Quest Components | QUAD OP-AMP, 9000 UV OFFSET-MAX, 1 MHZ BAND WIDTH, PDIP14 | 511 |
|
$0.2100 / $0.7000 | Buy Now |
|
|
Quest Components | QUAD OP-AMP, 9000 UV OFFSET-MAX, 1 MHZ BAND WIDTH, PDIP14 | 24 |
|
$0.4500 / $1.0000 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 75 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 875 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 64 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 54 |
|
RFQ | |
|
DISTI #
LM324N
|
EBV Elektronik | OP Amp Quad GP 16V32V 14Pin PDIP W Rail (Alt: LM324N) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for LM324N
LM324N CAD Models
LM324N Part Data Attributes
|
|
LM324N
onsemi
Buy Now
Datasheet
|
Compare Parts:
LM324N
onsemi
Operational Amplifier, Single Supply, Quad, PDIP-14, 1500-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | PDIP-14 | |
| Package Description | DIP-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | 646-06 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | 安森美 | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Min | 65 dB | |
| Common-mode Reject Ratio-Nom | 75 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.15 µA | |
| Input Offset Voltage-Max | 9000 µV | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e3 | |
| Length | 19.2 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | YES | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Current-Max | 3 mA | |
| Supply Voltage Limit-Max | 32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Voltage Gain-Min | 15000 | |
| Width | 7.62 mm |
Alternate Parts for LM324N
This table gives cross-reference parts and alternative options found for LM324N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM324N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM324NG | onsemi | Check for Price | Operational Amplifier, Single Supply, Quad, PDIP-14, 25-TUBE | LM324N vs LM324NG |
| LM324N/NOPB | Texas Instruments | $0.6411 | Quad 32-V 1-MHz operational amplifier 14-PDIP 0 to 70 | LM324N vs LM324N/NOPB |
| LM324D | Motorola Mobility LLC | Check for Price | QUAD OP-AMP, 9000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, PLASTIC, SO-14 | LM324N vs LM324D |
| LM324DR2 | Motorola Mobility LLC | Check for Price | QUAD OP-AMP, 9000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, PLASTIC, SO-14 | LM324N vs LM324DR2 |
| LM324DR2G | onsemi | $0.1505 | Operational Amplifier, Single Supply, Quad, SOIC-14 NB, 2500-REEL | LM324N vs LM324DR2G |
| LM324DR2 | onsemi | Check for Price | QUAD OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, SOIC-14 | LM324N vs LM324DR2 |
| LM324DG | onsemi | $0.1875 | Operational Amplifier, Single Supply, Quad, SOIC-14 NB, 55-TUBE | LM324N vs LM324DG |
LM324N Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LM324N is 670mW, which is calculated based on the maximum junction temperature (Tj) of 150°C and the thermal resistance (RθJA) of 125°C/W.
-
While the LM324N can be used as a comparator, it's not the best choice due to its relatively slow slew rate (0.5V/μs) and limited bandwidth (1MHz). A dedicated comparator like the LM339 or LM2901 would be a better option.
-
To ensure stability, make sure to add a compensation capacitor (typically 10-100pF) between the output and the inverting input. This helps to reduce oscillations and improve phase margin.
-
The input impedance of the LM324N is typically around 2MΩ, which is relatively high. This makes it suitable for use with high-impedance sources or in applications where input impedance is critical.
-
Yes, the LM324N can be used in a single-supply configuration, but you'll need to ensure that the input signals are referenced to the midpoint of the supply voltage. You may also need to add a voltage divider or level shifter to adjust the input signal levels.
