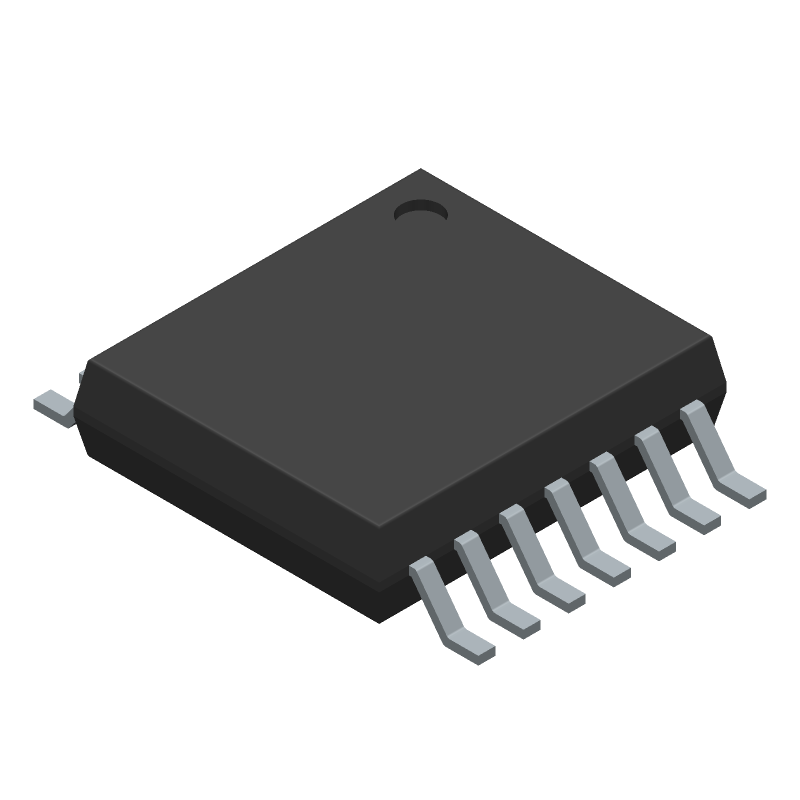

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM324DTBR2G by onsemi
Results Overview of LM324DTBR2G by onsemi
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM324DTBR2G Information
LM324DTBR2G by onsemi is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM324DTBR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42Y0513
|
Newark | Operational Amplifier, Quad, 1 Mhz, 4, 0.6 V/ S, 3V To 32V, Tssop, 14 Rohs Compliant: Yes |Onsemi LM324DTBR2G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 770 |
|
$0.2560 / $0.5200 | Buy Now |
|
DISTI #
41K9885
|
Newark | Ic, operational Amplifier, quad, bipolar, tssop,14Pin, plastic |Onsemi LM324DTBR2G RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1680 / $0.2200 | Buy Now |
|
DISTI #
LM324DTBR2GOSCT-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14TSSOP Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
61532 In Stock |
|
$0.1510 / $0.8900 | Buy Now |
|
DISTI #
LM324DTBR2G
|
Avnet Americas | OP Amp Quad GP ?16V/32V 14-Pin TSSOP T/R - Tape and Reel (Alt: LM324DTBR2G) RoHS: Compliant Min Qty: 5556 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 22960 Partner Stock |
|
$0.1294 / $0.1321 | Buy Now |
|
DISTI #
LM324DTBR2G
|
Avnet Americas | OP Amp Quad GP ?16V/32V 14-Pin TSSOP T/R - Tape and Reel (Alt: LM324DTBR2G) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.1335 / $0.1461 | Buy Now |
|
DISTI #
863-LM324DTBR2G
|
Mouser Electronics | Operational Amplifiers - Op Amps 3-32V Quad 5mV VIO Commercial Temp RoHS: Compliant | 15182 |
|
$0.1510 / $0.8900 | Buy Now |
|
DISTI #
E02:0323_00077910
|
Arrow Electronics | Op Amp Quad GP ±16V/32V 14-Pin TSSOP W T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks | Europe - 5000 |
|
$0.1512 | Buy Now |
|
|
Onlinecomponents.com | Operational Amplifier, Single Supply, Quad RoHS: Compliant | 0 |
|
$0.1447 / $0.1632 | Buy Now |
|
DISTI #
8567285
|
Verical | Op Amp Quad GP ±16V/32V 14-Pin TSSOP W T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 5000 |
|
$0.2389 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 4 Func, 7000uV Offset-Max, PDSO14 RoHS: Compliant Status: Active Min Qty: 1 | 200 |
|
$0.1268 / $0.2045 | Buy Now |
Part Details for LM324DTBR2G
LM324DTBR2G CAD Models
LM324DTBR2G Part Data Attributes
|
|
LM324DTBR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
LM324DTBR2G
onsemi
Operational Amplifier, Single Supply, Quad, TSSOP-14, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSSOP-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | 948G | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Min | 65 dB | |
| Common-mode Reject Ratio-Nom | 70 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -16 V | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 3 mA | |
| Supply Voltage Limit-Max | 16 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Gain-Min | 15000 | |
| Width | 4.4 mm |
Alternate Parts for LM324DTBR2G
This table gives cross-reference parts and alternative options found for LM324DTBR2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM324DTBR2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM324MT | National Semiconductor Corporation | Check for Price | IC QUAD OP-AMP, 9000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO14, PLASTIC, TSSOP-14, Operational Amplifier | LM324DTBR2G vs LM324MT |
| LM324MTX/NOPB | National Semiconductor Corporation | Check for Price | IC QUAD OP-AMP, 9000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO14, PLASTIC, TSSOP-14, Operational Amplifier | LM324DTBR2G vs LM324MTX/NOPB |
| LM324MT/NOPB | National Semiconductor Corporation | Check for Price | IC QUAD OP-AMP, 9000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO14, PLASTIC, TSSOP-14, Operational Amplifier | LM324DTBR2G vs LM324MT/NOPB |
| LM324MT/NOPB | Texas Instruments | Check for Price | Quad 32-V 1-MHz operational amplifier 14-TSSOP 0 to 70 | LM324DTBR2G vs LM324MT/NOPB |
| LM324DTBG | onsemi | Check for Price | Operational Amplifier, Single Supply, Quad, TSSOP-14, 96-TUBE | LM324DTBR2G vs LM324DTBG |
LM324DTBR2G Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LM324DTBR2G is 670mW, which is calculated based on the package thermal resistance and the maximum junction temperature.
-
While the LM324DTBR2G is an op-amp, it can be used as a comparator in a pinch. However, it's not the best choice due to its limited bandwidth and slew rate. A dedicated comparator like the LM339 would be a better choice.
-
To ensure stability, make sure to follow proper compensation techniques, such as adding a capacitor in the feedback loop to reduce the gain at high frequencies. Also, ensure that the feedback resistors are properly matched and that the op-amp is not oscillating due to parasitic capacitance.
-
The input impedance of the LM324DTBR2G is typically around 2MΩ, but it can vary depending on the specific application and operating conditions.
-
The LM324DTBR2G is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If you need to operate in a high-temperature environment, consider using a more specialized op-amp designed for high-temperature operation.
