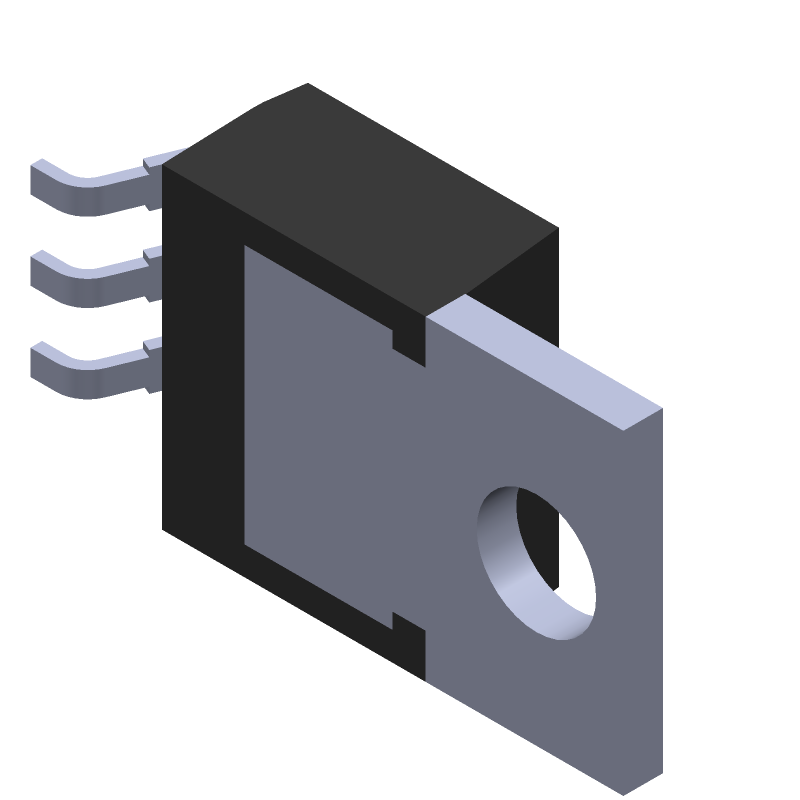

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM317T/LF01 by Texas Instruments
Results Overview of LM317T/LF01 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM317T/LF01 Information
LM317T/LF01 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM317T/LF01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LM317T/LF01-ND
|
DigiKey | IC REG LIN POS ADJ 1.5A TO220-3 Min Qty: 1 Lead time: 6 Weeks Container: Tube |
525 In Stock |
|
$0.8497 / $1.7300 | Buy Now |
|
DISTI #
926-LM317T/LF01
|
Mouser Electronics | Linear Voltage Regulators 1.5-A 40-V adjusta ble linear voltage r ENV 926-LM317T/NOPB RoHS: Compliant | 726 |
|
$0.8120 / $1.7300 | Buy Now |
|
|
Vyrian | Regulators | 22536 |
|
RFQ |
Part Details for LM317T/LF01
LM317T/LF01 CAD Models
LM317T/LF01 Part Data Attributes
|
|
LM317T/LF01
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM317T/LF01
Texas Instruments
1.5-A, 40-V, adjustable linear voltage regulator 3-TO-220
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TO-220, 3 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Nom | 2.25 V | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 3 V | |
| Input-Output Voltage Differential-Max | 40 V | |
| Input-Output Voltage Differential-Min | 3 V | |
| JESD-30 Code | R-XSFM-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 4 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 1.5 A | |
| Output Voltage1-Max | 37 V | |
| Output Voltage1-Min | 1.2 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SFM | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 4.69 mm | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 5% |
LM317T/LF01 Frequently Asked Questions (FAQ)
-
The minimum input voltage required for the LM317T/LF01 to operate is 3V above the output voltage. For example, if the output voltage is 5V, the minimum input voltage would be 8V.
-
To ensure stability and prevent oscillations, a minimum output capacitance of 1uF is recommended. Additionally, the input capacitor should be at least 10uF to prevent oscillations.
-
The maximum current that the LM317T/LF01 can deliver is 1.5A. However, it's recommended to derate the current to 1A or less to ensure reliable operation.
-
No, the LM317T/LF01 is designed to regulate positive voltages only. If you need a negative voltage regulator, you should consider using a different device, such as the LM337.
-
The output voltage of the LM317T/LF01 can be adjusted by using a resistive divider network between the output and the adjust pin. The output voltage is determined by the ratio of the resistors and the reference voltage (1.25V).
