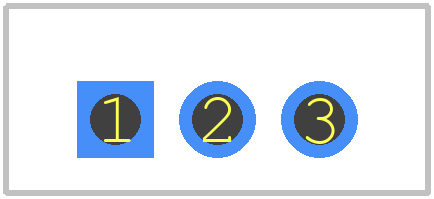

Footprint
-

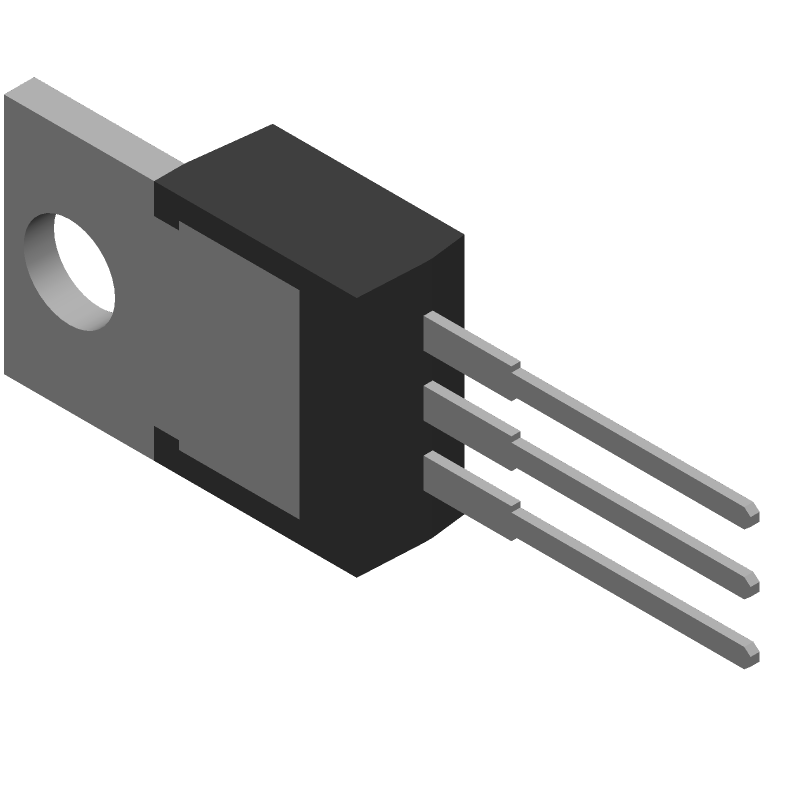

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM2937ET-15 by Texas Instruments
Results Overview of LM2937ET-15 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
LM2937ET-15 Information
LM2937ET-15 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM2937ET-15
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86280882
|
Verical | LDO Regulator Pos 15V 0.5A Automotive 3-Pin(3+Tab) TO-220 Tube RoHS: Not Compliant Min Qty: 190 Package Multiple: 1 Date Code: 1501 | Americas - 600 |
|
$1.9750 | Buy Now |
Part Details for LM2937ET-15
LM2937ET-15 CAD Models
LM2937ET-15 Part Data Attributes
|
|
LM2937ET-15
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM2937ET-15
Texas Instruments
500-mA, 26-V, high-PSRR, low-dropout voltage regulator 3-TO-220 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SFM | |
| Package Description | PLASTIC, TO-220, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1993-01-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1 V | |
| Dropout Voltage1-Nom | 0.5 V | |
| Input Voltage Absolute-Max | 26 V | |
| Input Voltage-Max | 26 V | |
| Input Voltage-Min | 17 V | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e0 | |
| Length | 14.986 mm | |
| Line Regulation-Max | 0.15% | |
| Load Regulation-Max | 0.15% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 15.75 V | |
| Output Voltage1-Min | 14.25 V | |
| Output Voltage1-Nom | 15 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-220 | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 4.7 mm | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE | |
| Voltage Tolerance-Max | 5% | |
| Width | 10.16 mm |
LM2937ET-15 Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LM2937ET-15 is 26V, but it's recommended to keep it below 24V for reliable operation.
-
While the LM2937ET-15 can handle up to 1A of output current, it's not recommended for high-current applications due to thermal limitations. For high-current applications, consider using a switching regulator or a more robust linear regulator.
-
To ensure stable and accurate output voltage, make sure to use a stable input voltage, decouple the input and output with capacitors, and keep the device within its recommended operating temperature range.
-
Yes, the LM2937ET-15 is qualified for automotive applications and meets the AEC-Q100 standard. However, ensure that the device is used within its recommended operating temperature range and that the input voltage is within the specified range.
-
The dropout voltage of the LM2937ET-15 is typically around 1.5V to 2V, depending on the output current. This means that the input voltage must be at least 1.5V to 2V higher than the output voltage for the regulator to operate properly.
