LM2931Z-5.0RAG by: onsemi

LDO Regulator, 100 mA, Ultra-High PSRR Vout: 5.0 V; ±5.0%, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL

Part Details for LM2931Z-5.0RAG by onsemi

Results Overview of LM2931Z-5.0RAG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LM2931Z-5.0RAG Information

LM2931Z-5.0RAG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LM2931Z-5.0RAG

Part # Distributor Description Stock Price Buy
DISTI # 71J5010
Newark Ic, volt Regulator, fixed,+5V, bipolar, sip,3Pin, plastic Rohs Compliant: Yes |Onsemi LM2931Z-5.0RAG RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.3630
  • 3,000 $0.3550
  • 6,000 $0.3290
  • 12,000 $0.3080
  • 18,000 $0.2880
  • 30,000 $0.2760
$0.2760 / $0.3630 Buy Now
DISTI # 54AH9139
Newark Ldo, Fixed, 5V, 0.1A, -40 To 125Deg C Rohs Compliant: Yes |Onsemi LM2931Z-5.0RAG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $1.2200
  • 10 $0.7520
  • 25 $0.6870
  • 50 $0.6210
  • 100 $0.5560
  • 250 $0.5370
  • 500 $0.5180
$0.5180 / $1.2200 Buy Now
DISTI # LM2931Z-5.0RAGOSCT-ND
DigiKey IC REG LINEAR 5V 100MA TO92 Min Qty: 1 Lead time: 9 Weeks Container: Cut Tape (CT), Tape & Reel (TR) 3988
In Stock
  • 1 $1.2700
  • 10 $0.7760
  • 25 $0.6460
  • 100 $0.4995
  • 250 $0.4275
  • 500 $0.3832
  • 1,000 $0.3460
  • 2,000 $0.3149
  • 4,000 $0.2889
  • 6,000 $0.2756
  • 10,000 $0.2608
  • 14,000 $0.2544
$0.2544 / $1.2700 Buy Now
DISTI # LM2931Z-5.0RAG
Avnet Americas LDO Regulator Pos 5V 0.1A 3-Pin TO-92 T/R - Tape and Reel (Alt: LM2931Z-5.0RAG) RoHS: Compliant Min Qty: 2174 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel 6000 Partner Stock
  • 2,174 $0.2949
  • 2,200 $0.2839
  • 4,400 $0.2738
  • 11,000 $0.2644
  • 22,000 $0.2556
$0.2556 / $0.2949 Buy Now
DISTI # LM2931Z-5.0RAG
Avnet Americas LDO Regulator Pos 5V 0.1A 3-Pin TO-92 T/R - Tape and Reel (Alt: LM2931Z-5.0RAG) RoHS: Compliant Min Qty: 6000 Package Multiple: 2000 Lead time: 9 Weeks, 0 Days Container: Reel 6000 Factory Stock
  • 6,000 $0.1339
  • 10,000 $0.1304
  • 16,000 $0.1287
  • 30,000 $0.1270
  • 60,000 $0.1248
$0.1248 / $0.1339 Buy Now
DISTI # 863-LM2931Z-5.0RAG
Mouser Electronics LDO Voltage Regulators 5V 100mA w/Load Dump RoHS: Compliant 1854
  • 1 $1.2700
  • 10 $0.7760
  • 25 $0.6460
  • 100 $0.5000
  • 250 $0.3840
  • 1,000 $0.3370
  • 2,000 $0.2750
  • 10,000 $0.2540
$0.2540 / $1.2700 Buy Now
DISTI # 70339771
RS LM2931Z-5.0RAG, LDO VoltageRegulator,100mA,5V +/-5%,Maximum of 40 Vin,3-Pin TO-92 Min Qty: 10 Package Multiple: 1 Container: Bulk 0
  • 10 $1.3600
  • 100 $1.2900
  • 500 $1.2200
  • 1,000 $1.1400
$1.1400 / $1.3600 RFQ
Onlinecomponents.com LDO Regulator, 100 mA, Ultra-High PSRR Vout: 5.0 V, ±5.0% RoHS: Compliant 0
  • 2,000 $0.2910
  • 4,000 $0.2710
  • 8,000 $0.2540
  • 16,000 $0.2480
$0.2480 / $0.2910 Buy Now
Rochester Electronics Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PBCY3 RoHS: Compliant Status: Active Min Qty: 1 221
  • 100 $0.3447
  • 500 $0.3102
  • 1,000 $0.2861
  • 10,000 $0.2551
  • 100,000 $0.2137
$0.2137 / $0.3447 Buy Now
DISTI # LM2931Z-5.0RAG
Avnet Silica LDO Regulator Pos 5V 01A 3Pin TO92 TR (Alt: LM2931Z-5.0RAG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
DISTI # LM2931Z-5.0RAG
EBV Elektronik LDO Regulator Pos 5V 01A 3Pin TO92 TR (Alt: LM2931Z-5.0RAG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock, ship today 6000
RFQ

Part Details for LM2931Z-5.0RAG

LM2931Z-5.0RAG CAD Models

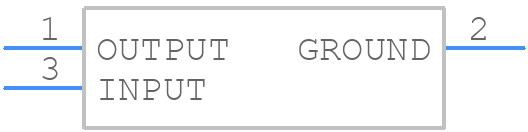

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM2931Z-5.0RAG Part Data Attributes

Parametric Data
LM2931Z-5.0RAG onsemi
Buy Now Datasheet
Compare Parts:
LM2931Z-5.0RAG onsemi LDO Regulator, 100 mA, Ultra-High PSRR Vout: 5.0 V; ±5.0%, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code TO-92 (TO-226) 5.33mm Body Height
Pin Count 3
Manufacturer Package Code 29-10
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 2 Days
Samacsys Manufacturer onsemi
Adjustability FIXED
Dropout Voltage1-Max 0.6 V
Dropout Voltage1-Nom 0.16 V
Input Voltage Absolute-Max 40 V
Input Voltage-Max 26 V
Input Voltage-Min 6 V
JESD-30 Code O-PBCY-W3
JESD-609 Code e3
Line Regulation-Max 0.03%
Load Regulation-Max 0.05%
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 150 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.1 A
Output Voltage1-Max 5.25 V
Output Voltage1-Min 4.75 V
Output Voltage1-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Code TO-92
Package Equivalence Code SIP3,.1,50
Package Shape ROUND
Package Style CYLINDRICAL
Packing Method TR
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Surface Mount NO
Technology BIPOLAR
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form WIRE
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Voltage Tolerance-Max 10%
