Power Circuits / Linear Regulator ICs / LM2931DT-5.0G
Datasheets

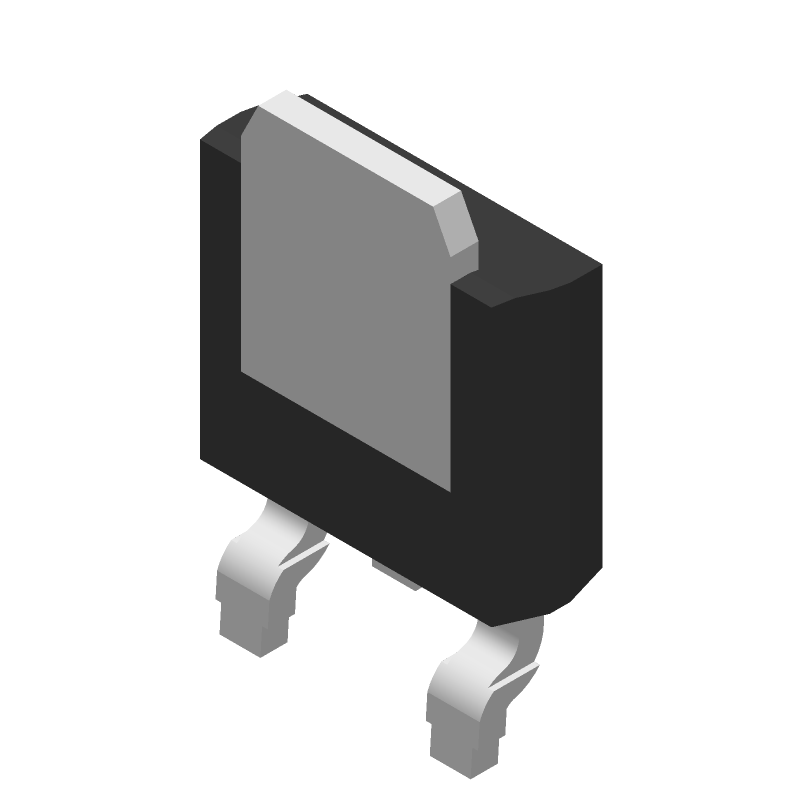

LM2931DT-5.0G by: onsemi

LDO Regulator, 100 mA, Ultra-High PSRR Vout: 5.0 V; ±5.0%, DPAK (SINGLE GAUGE) TO-252, 75-TUBE

Part Details for LM2931DT-5.0G by onsemi

Results Overview of LM2931DT-5.0G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LM2931DT-5.0G Information

LM2931DT-5.0G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LM2931DT-5.0G

Part # Distributor Description Stock Price Buy
DISTI # 94T5770
Newark Fixed Ldo Voltage Regulator, 14V To 40V, 160Mv Dropout, 5Vout, 100Maout, To-252-3 Rohs Compliant: Yes |Onsemi LM2931DT-5.0G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2098
  • 1 $0.6700
  • 10 $0.5620
  • 150 $0.3430
  • 525 $0.3280
  • 1,050 $0.3130
  • 2,550 $0.2620
$0.2620 / $0.6700 Buy Now
DISTI # LM2931DT-5.0GOS-ND
DigiKey IC REG LINEAR 5V 100MA DPAK Min Qty: 1 Lead time: 8 Weeks Container: Tube 3670
In Stock
  • 1 $1.1800
  • 10 $0.7190
  • 75 $0.4855
  • 150 $0.4292
  • 300 $0.3821
  • 525 $0.3497
  • 1,050 $0.3154
  • 2,550 $0.2796
  • 5,025 $0.2572
$0.2572 / $1.1800 Buy Now
DISTI # LM2931DT-5.0G
Avnet Americas LDO Regulator Pos 5V 0.1A 3-Pin(2+Tab) DPAK Rail - Rail/Tube (Alt: LM2931DT-5.0G) RoHS: Compliant Min Qty: 75 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Tube 14011
  • 75 $0.1568
  • 80 $0.1560
  • 160 $0.1484
  • 380 $0.1477
$0.1477 / $0.1568 Buy Now
DISTI # 863-LM2931DT-5.0G
Mouser Electronics LDO Voltage Regulators 5V 100mA w/Load Dump RoHS: Compliant 1333
  • 1 $1.1800
  • 10 $0.7190
  • 25 $0.6310
  • 75 $0.3880
  • 300 $0.3200
  • 1,050 $0.2910
  • 2,025 $0.2570
$0.2570 / $1.1800 Buy Now
DISTI # 70339768
RS LM2931DT-5.0G, LDO Voltage Regulator,100mA,5V +/-5%,Maximum of 40 Vin,3-Pin DPAK Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $0.6400
  • 50 $0.6100
  • 250 $0.5800
  • 500 $0.5500
$0.5500 / $0.6400 RFQ
Onlinecomponents.com LDO Regulator, 100 mA, Ultra-High PSRR Vout: 5.0 V, ±5.0% RoHS: Compliant 0
  • 75 $0.2730
  • 525 $0.2613
  • 2,550 $0.2472
  • 5,025 $0.2345
  • 7,500 $0.2310
  • 25,050 $0.2258
  • 50,025 $0.2224
$0.2224 / $0.2730 Buy Now
Bristol Electronics   175
RFQ
DISTI # LM2931DT-5.0G
TME IC: voltage regulator, LDO,linear,fixed, 5V, 0.1A, DPAK, SMD, tube Min Qty: 1 0
  • 1 $0.5990
  • 25 $0.3300
  • 75 $0.3130
  • 525 $0.2890
$0.2890 / $0.5990 RFQ
Ameya Holding Limited LM2931 Series 100 mA 5 V Fixed Output Surface Mount LDO Regulator - DPAK 46
Buy Now RFQ
DISTI # LM2931DT-5.0G
Avnet Silica LDO Regulator Pos 5V 01A 3Pin2Tab DPAK Rail (Alt: LM2931DT-5.0G) RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 9 Weeks, 0 Days Silica - 3075
Buy Now
DISTI # LM2931DT-5.0G
EBV Elektronik LDO Regulator Pos 5V 01A 3Pin2Tab DPAK Rail (Alt: LM2931DT-5.0G) RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now
New Advantage Corporation DPAK 4/100MA, 5.0V OUTPUT, LOW DROPOUT VOLTAGE REGULATOR WITH 60V LOAD DUMP RoHS: Compliant Min Qty: 1 Package Multiple: 75 1200
  • 600 $0.3846
  • 1,200 $0.3559
$0.3559 / $0.3846 Buy Now
Vyrian Regulators 3902
RFQ

Part Details for LM2931DT-5.0G

LM2931DT-5.0G Part Data Attributes

Parametric Data
LM2931DT-5.0G onsemi
Buy Now Datasheet
Compare Parts:
LM2931DT-5.0G onsemi LDO Regulator, 100 mA, Ultra-High PSRR Vout: 5.0 V; ±5.0%, DPAK (SINGLE GAUGE) TO-252, 75-TUBE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code DPAK (SINGLE GAUGE) TO-252
Pin Count 3
Manufacturer Package Code 369C
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 8 Weeks
Samacsys Manufacturer onsemi
Adjustability FIXED
Dropout Voltage1-Max 0.6 V
Dropout Voltage1-Nom 0.16 V
Input Voltage Absolute-Max 40 V
Input Voltage-Max 26 V
Input Voltage-Min 6 V
JESD-30 Code R-PSSO-G2
JESD-609 Code e3
Length 6.54 mm
Line Regulation-Max 0.03%
Load Regulation-Max 0.05%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 2
Operating Temperature TJ-Max 150 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.1 A
Output Voltage1-Max 5.5 V
Output Voltage1-Min 4.5 V
Output Voltage1-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Code TO-252
Package Equivalence Code SMSIP3H,.38,90TB
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method RAIL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 2.38 mm
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 2.29 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 10%
Width 6.16 mm

Alternate Parts for LM2931DT-5.0G

This table gives cross-reference parts and alternative options found for LM2931DT-5.0G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2931DT-5.0G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LM2931ADT-5.0RKG onsemi $0.3504 LDO Regulator, 100 mA, Ultra-High PSRR Vout: 5.0 V; ±3.8%, DPAK (SINGLE GAUGE) TO-252, 2500-REEL LM2931DT-5.0G vs LM2931ADT-5.0RKG
LM2931ADT50R STMicroelectronics $0.4779 Very low drop voltage regulators with inhibit function LM2931DT-5.0G vs LM2931ADT50R

LM2931DT-5.0G Related Parts

LM2931DT-5.0G Frequently Asked Questions (FAQ)

  • The maximum input voltage that can be applied to the LM2931DT-5.0G is 15V. Exceeding this voltage may damage the device.

  • To ensure the stability of the output voltage, it is recommended to use a minimum of 10uF capacitor at the output and a minimum of 1uF capacitor at the input. Additionally, the output capacitor should be placed as close to the output pin as possible.

  • The maximum output current that the LM2931DT-5.0G can provide is 500mA. Exceeding this current may cause the device to overheat or fail.

  • To protect the LM2931DT-5.0G from overheating, ensure that the device is mounted on a heat sink or a PCB with a thermal pad, and that the ambient temperature is within the recommended operating range.

  • The LM2931DT-5.0G is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the output current and voltage at high temperatures.
