Part Details for LM2931AT-5.0/NOPB by Texas Instruments

Results Overview of LM2931AT-5.0/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LM2931AT-5.0/NOPB Information

LM2931AT-5.0/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DS96174CN/NOPB Rochester Electronics LLC DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16
LM611IM/NOPB Rochester Electronics LLC LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar

Price & Stock for LM2931AT-5.0/NOPB

Part # Distributor Description Stock Price Buy
DISTI # LM2931AT-5.0NS/NOPB-ND
DigiKey IC REG LINEAR 5V 100MA TO220-3 Min Qty: 1 Lead time: 6 Weeks Container: Tube 660
In Stock
  • 1 $1.2200
  • 10 $0.8810
  • 45 $0.7536
  • 135 $0.6892
  • 270 $0.6577
  • 540 $0.6317
  • 1,035 $0.6116
  • 2,520 $0.5894
  • 5,040 $0.5755
$0.5755 / $1.2200 Buy Now
DISTI # 926-LM2931AT-5.0NOPB
Mouser Electronics LDO Voltage Regulators SERIES LDO REG RoHS: Compliant 631
  • 1 $1.1300
  • 10 $0.7610
  • 25 $0.7530
  • 90 $0.6890
  • 270 $0.6570
  • 540 $0.6310
  • 1,035 $0.5500
  • 4,005 $0.5440
$0.5440 / $1.1300 Buy Now
DISTI # J56:1989_00015081
Arrow Electronics LDO Regulator Pos 5V 0.1A 3-Pin(3+Tab) TO-220 Tube RoHS: Compliant Min Qty: 45 Package Multiple: 45 Lead time: 6 Weeks Europe - 315
  • 45 $0.7472
  • 90 $0.6780
  • 270 $0.6408
  • 540 $0.6097
  • 1,035 $0.5453
  • 4,005 $0.5304
$0.5304 / $0.7472 Buy Now
DISTI # LM2931AT-5.0/NP
TME IC: voltage regulator, LDO,fixed, 5V, 0.4A, TO220-3, THT, tube, Ch: 1 Min Qty: 1 893
  • 1 $1.2800
  • 45 $1.0100
  • 90 $0.9300
  • 540 $0.7400
  • 1,035 $0.7300
$0.7300 / $1.2800 Buy Now
Chip 1 Exchange INSTOCK 2832
RFQ
New Advantage Corporation IC REG LINEAR 5V 100MA TO220-3 RoHS: Compliant Min Qty: 1 Package Multiple: 100 1771
  • 200 $1.7100
  • 1,771 $1.5800
$1.5800 / $1.7100 Buy Now

Part Details for LM2931AT-5.0/NOPB

LM2931AT-5.0/NOPB CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

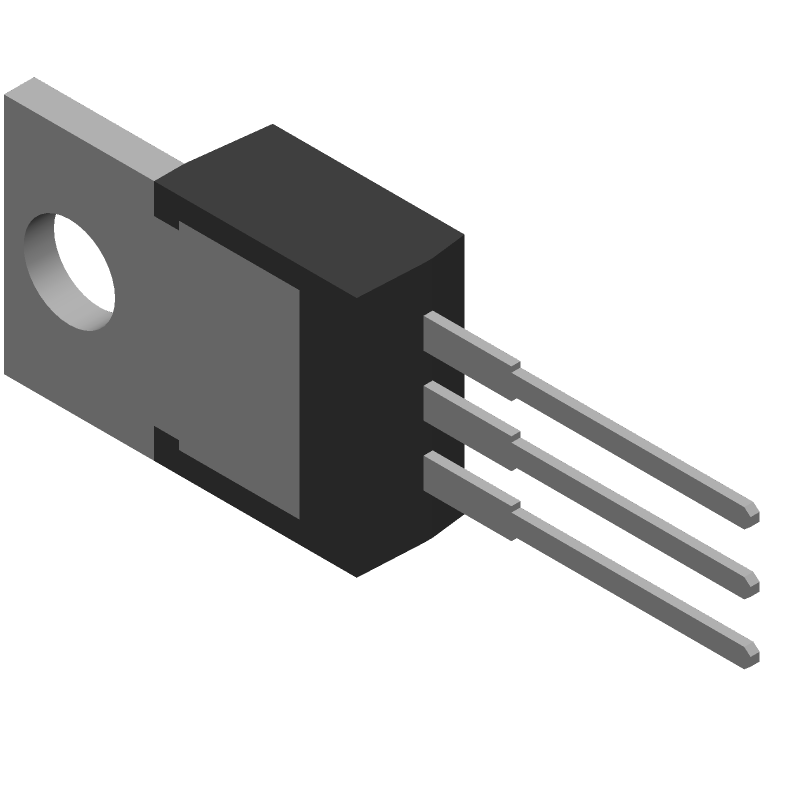

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM2931AT-5.0/NOPB Part Data Attributes

Parametric Data
LM2931AT-5.0/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LM2931AT-5.0/NOPB Texas Instruments 100-mA, 26-V, high-PSRR, low-dropout voltage regulator 3-TO-220 -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SFM
Package Description GREEN, PLASTIC, TO-220, 3 PIN
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Adjustability FIXED
Dropout Voltage1-Max 0.6 V
Dropout Voltage1-Nom 0.3 V
Input Voltage Absolute-Max 26 V
Input Voltage-Max 26 V
Input Voltage-Min 6 V
JESD-30 Code R-XSFM-T3
JESD-609 Code e3
Length 14.986 mm
Line Regulation-Max 0.03%
Load Regulation-Max 0.05%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.1 A
Output Voltage1-Max 5.25 V
Output Voltage1-Min 4.75 V
Output Voltage1-Nom 5 V
Package Body Material UNSPECIFIED
Package Code SFM
Package Equivalence Code SIP3,.1TB
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Packing Method TUBE
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 19.55 mm
Surface Mount NO
Technology BIPOLAR
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Voltage Tolerance-Max 5%
Width 10.16 mm
