Power Circuits / Linear Regulator ICs / LM2930T-8.0/NOPB
Datasheets
LM2930T-8.0/NOPB by:

3-Terminal Positive Regulator 3-TO-220 -40 to 85

Part Details for LM2930T-8.0/NOPB by Texas Instruments

Results Overview of LM2930T-8.0/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Environmental Monitoring Industrial Automation Agriculture Technology Medical Imaging

LM2930T-8.0/NOPB Information

LM2930T-8.0/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DS96174CN/NOPB Rochester Electronics LLC DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16
LM611IM/NOPB Rochester Electronics LLC LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar
LM2930T-5.0/NOPB Texas Instruments 3-Terminal Positive Regulator 3-TO-220 -40 to 85

Price & Stock for LM2930T-8.0/NOPB

Part # Distributor Description Stock Price Buy
Vyrian Peripheral ICs 1190
RFQ

Part Details for LM2930T-8.0/NOPB

LM2930T-8.0/NOPB CAD Models

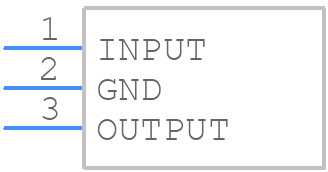

  • Part Symbol

    Part Symbol

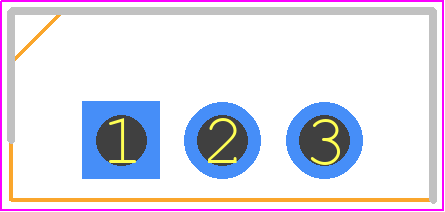

  • Footprint

    footprint

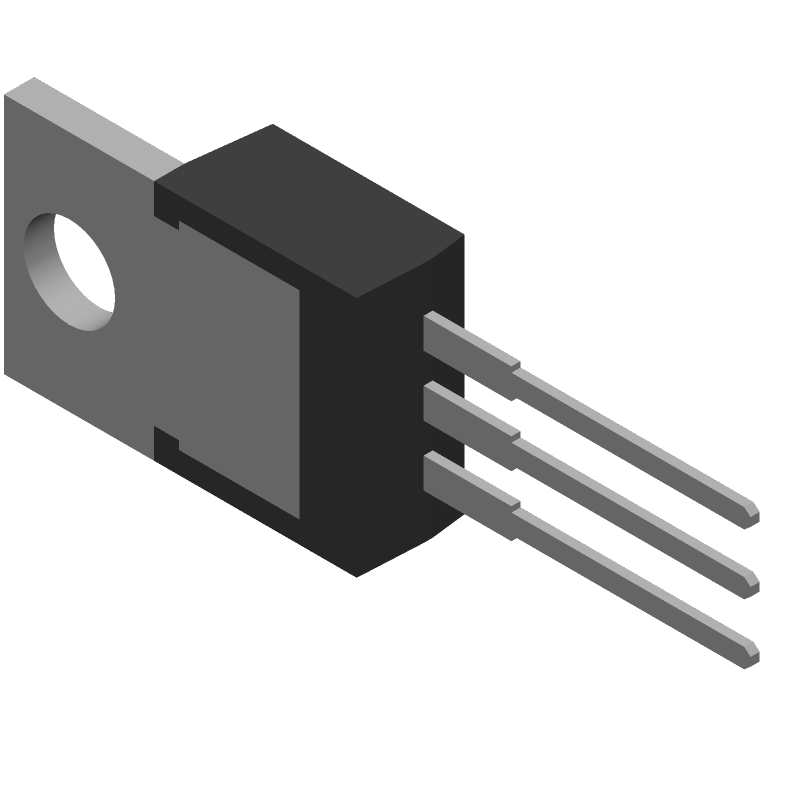

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM2930T-8.0/NOPB Part Data Attributes

Parametric Data
LM2930T-8.0/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LM2930T-8.0/NOPB Texas Instruments 3-Terminal Positive Regulator 3-TO-220 -40 to 85
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SFM
Package Description , SIP3,.1TB
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Adjustability FIXED
Dropout Voltage1-Nom 0.32 V
Input Voltage Absolute-Max 26 V
Input Voltage-Max 26 V
Input Voltage-Min 9.4 V
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Line Regulation-Max 0.1%
Load Regulation-Max 0.05%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.15 A
Output Voltage1-Max 8.5 V
Output Voltage1-Min 7.5 V
Output Voltage1-Nom 8 V
Package Body Material PLASTIC/EPOXY
Package Code SFM
Package Equivalence Code SIP3,.1TB
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Packing Method RAIL
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Surface Mount NO
Technology BIPOLAR
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Voltage Tolerance-Max 10%

LM2930T-8.0/NOPB Frequently Asked Questions (FAQ)

  • The maximum input voltage is 26V, but it's recommended to keep it below 24V for reliable operation.

  • The maximum output current is 1A, but it's recommended to keep it below 500mA for reliable operation.

  • The dropout voltage is typically around 1.5V, but it can be as high as 2.5V under certain conditions.

  • Yes, the LM2930T-8.0/NOPB is a low-dropout regulator (LDO) with a low dropout voltage, making it suitable for battery-powered applications.

  • The operating temperature range is -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C.
