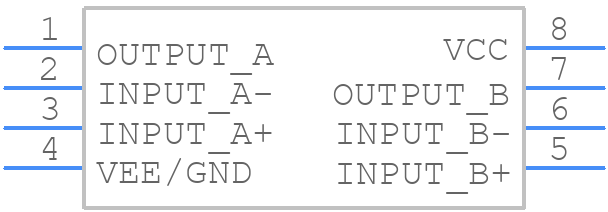

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM2904D by onsemi
Results Overview of LM2904D by onsemi
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM2904D Information
LM2904D by onsemi is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM2904DRE4 | Texas Instruments | Dual Operational Amplifier 8-SOIC -40 to 125 | |
| LM2904DRG3 | Texas Instruments | Dual Operational Amplifier 8-SOIC -40 to 125 | |
| LM2904DRG4 | Texas Instruments | Dual Operational Amplifier 8-SOIC -40 to 125 |
Price & Stock for LM2904D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
488-LM2904D-ND
|
DigiKey | OPERATIONAL AMPLIFIER, SINGLE SU Lead time: 8 Weeks Container: Bulk | Limited Supply - Call |
|
Buy Now | |
|
|
Bristol Electronics | 1281 |
|
RFQ | ||
|
|
Bristol Electronics | 162 |
|
RFQ | ||
|
|
Bristol Electronics | 98 |
|
RFQ | ||
|
|
Quest Components | IC,OP-AMP,DUAL,BIPOLAR,SOP,8PIN,PLASTIC | 1024 |
|
$0.9000 / $2.4000 | Buy Now |
|
|
Quest Components | IC,OP-AMP,DUAL,BIPOLAR,SOP,8PIN,PLASTIC | 280 |
|
$0.8400 / $2.1000 | Buy Now |
|
|
Quest Components | IC,OP-AMP,DUAL,BIPOLAR,SOP,8PIN,PLASTIC | 251 |
|
$1.5795 / $3.6450 | Buy Now |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 326 |
|
$0.7500 / $1.1500 | Buy Now |
Part Details for LM2904D
LM2904D CAD Models
LM2904D Part Data Attributes
|
|
LM2904D
onsemi
Buy Now
Datasheet
|
Compare Parts:
LM2904D
onsemi
Operational Amplifier, Single Supply, Dual, SOIC-8 Narrow Body, 98-TUBE
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 Narrow Body | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Nom | 70 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e0 | |
| Length | 4.9 mm | |
| Low-Offset | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | RAIL | |
| Peak Reflow Temperature (Cel) | 235 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.6 V/us | |
| Supply Current-Max | 3 mA | |
| Supply Voltage Limit-Max | 32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1000 | |
| Voltage Gain-Min | 15000 | |
| Width | 3.9 mm |
Alternate Parts for LM2904D
This table gives cross-reference parts and alternative options found for LM2904D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2904D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM2904D | Motorola Semiconductor Products | Check for Price | Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8, PLASTIC, SO-8 | LM2904D vs LM2904D |
LM2904D Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LM2904D is 26V, but it's recommended to keep it below 24V for reliable operation.
-
The LM2904D is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures.
-
To ensure stability, use a minimum output capacitance of 10uF with an ESR of 5 ohms or less, and keep the input capacitance below 10uF to prevent oscillation.
-
Yes, you can use multiple LM2904D devices in parallel to increase the output current, but ensure that each device has its own decoupling capacitors and that the output voltages are matched to prevent current imbalance.
-
The minimum input voltage required for the LM2904D to regulate the output voltage is typically 2.5V above the output voltage, but this can vary depending on the output current and other factors.
