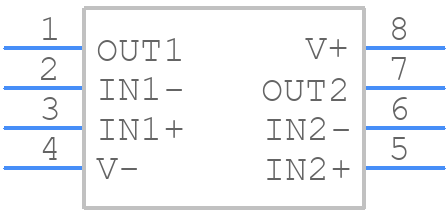

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM2904BTQDGKRQ1 by Texas Instruments
Results Overview of LM2904BTQDGKRQ1 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM2904BTQDGKRQ1 Information
LM2904BTQDGKRQ1 by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM2904BTQDGKRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LM2904BTQDGKRQ1CT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8VSSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
12172 In Stock |
|
$0.1688 / $0.4500 | Buy Now |
|
DISTI #
595-LM2904BTQDGKRQ1
|
Mouser Electronics | Operational Amplifiers - Op Amps Industry-standard du al operational ampl RoHS: Compliant | 25615 |
|
$0.1680 / $0.4500 | Buy Now |
|
DISTI #
LM2904BTQDGKRQ1
|
TME | IC: operational amplifier, 1.2MHz, Ch: 2, VSSOP8, ±2÷20VDC,3÷40VDC Min Qty: 1 | 0 |
|
$0.2240 / $0.8770 | RFQ |
|
|
LCSC | Dual 10nA 0.5V/us 1.2MHz VSSOP-8 Operational Amplifier ROHS | 3 |
|
$0.5239 / $0.6179 | Buy Now |
|
|
Vyrian | Amplifiers | 19472 |
|
RFQ |
Part Details for LM2904BTQDGKRQ1
LM2904BTQDGKRQ1 CAD Models
LM2904BTQDGKRQ1 Part Data Attributes
|
|
LM2904BTQDGKRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM2904BTQDGKRQ1
Texas Instruments
Automotive-grade, dual, 36-V, 1.2-MHz operational amplifier with -40°C to 125°C operation 8-VSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | VSSOP-8 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.035 µA | |
| Bias Current-Max (IIB) @25C | 0.035 µA | |
| Common-mode Reject Ratio-Min | 75 dB | |
| Common-mode Reject Ratio-Nom | 100 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.005 µA | |
| Input Offset Voltage-Max | 3000 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.1 mm | |
| Slew Rate-Nom | 0.5 V/us | |
| Supply Current-Max | 1 mA | |
| Supply Voltage Limit-Max | 40 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1200 | |
| Voltage Gain-Min | 70000 | |
| Wideband | NO | |
| Width | 3 mm |
LM2904BTQDGKRQ1 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the LM2904BTQDGKRQ1 is 2.7V to 5.5V.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum equivalent series resistance (ESR) of 1 ohm.
-
The maximum output current that the LM2904BTQDGKRQ1 can provide is 150mA.
-
To protect the LM2904BTQDGKRQ1 from overheating, it is recommended to provide adequate heat sinking and to ensure that the device is operated within its recommended operating temperature range of -40°C to 125°C.
-
Yes, the LM2904BTQDGKRQ1 is AEC-Q100 qualified, making it suitable for use in automotive applications.
