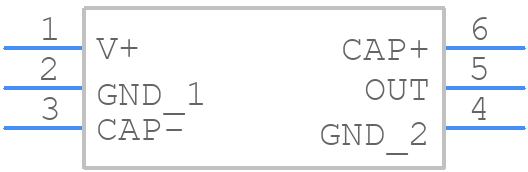

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM2681M6/NOPB by Texas Instruments
Results Overview of LM2681M6/NOPB by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Energy and Power Systems
Renewable Energy
LM2681M6/NOPB Information
LM2681M6/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM2681M6/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-35223-1-ND
|
DigiKey | IC REG CHARGE PUMP 2VIN SOT23-6 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2339 In Stock |
|
$0.5338 / $1.1600 | Buy Now |
|
DISTI #
926-LM2681M6/NOPB
|
Mouser Electronics | Switching Voltage Regulators Switched Capacitor V tg Cnvtr A 926-LM2681M6X/NOPB RoHS: Compliant | 0 |
|
$0.5140 / $1.1600 | Order Now |
|
DISTI #
V72:2272_07270194
|
Arrow Electronics | Charge Pump STPUP/STPDN 5V to 11V/1.8V to 11V 20mA 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 1928 Container: Cut Strips | Americas - 231 |
|
$0.2987 / $0.4927 | Buy Now |
Part Details for LM2681M6/NOPB
LM2681M6/NOPB CAD Models
LM2681M6/NOPB Part Data Attributes
|
|
LM2681M6/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM2681M6/NOPB
Texas Instruments
20-mA switched capacitor voltage doubler 6-SOT-23 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | GREEN, SOT-23, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHED CAPACITOR CONVERTER | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.02 A | |
| Output Voltage-Max | 11 V | |
| Output Voltage-Min | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.22 mm | |
| Surface Mount | YES | |
| Switcher Configuration | DOUBLER INVERTER | |
| Switching Frequency-Max | 80 kHz | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
Alternate Parts for LM2681M6/NOPB
This table gives cross-reference parts and alternative options found for LM2681M6/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2681M6/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM2681M6 | Texas Instruments | Check for Price | SWITCHED CAPACITOR CONVERTER, 160kHz SWITCHING FREQ-MAX, PDSO6, SOT-23, 6 PIN | LM2681M6/NOPB vs LM2681M6 |
LM2681M6/NOPB Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LM2681M6/NOPB is 15V. Exceeding this voltage may damage the device.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage should be decoupled with a 10nF capacitor.
-
The maximum output current that the LM2681M6/NOPB can provide is 3A. Exceeding this current may cause the device to overheat or shut down.
-
To protect the LM2681M6/NOPB from overheating, it is recommended to provide adequate heat sinking, such as a copper plane or a heat sink, and to ensure good airflow around the device.
-
The LM2681M6/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures.
