LM2673S-12/NOPB by:

8V to 40V, 3A SIMPLE SWITCHER® buck converter with adjustable current limit 7-DDPAK/TO-263 -40 to 125

Part Details for LM2673S-12/NOPB by Texas Instruments

Results Overview of LM2673S-12/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LM2673S-12/NOPB Information

LM2673S-12/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DS96174CN/NOPB Rochester Electronics LLC DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16
LM611IM/NOPB Rochester Electronics LLC LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar

Price & Stock for LM2673S-12/NOPB

Part # Distributor Description Stock Price Buy
DISTI # LM2673S-12/NOPB-ND
DigiKey IC REG BUCK 12V 3A TO263 Min Qty: 1 Lead time: 6 Weeks Container: Tube 315
In Stock
  • 1 $5.7200
  • 10 $4.3800
  • 45 $3.8702
  • 135 $3.6128
  • 270 $3.4868
  • 540 $3.3831
  • 1,035 $3.3025
  • 2,520 $3.2137
$3.2137 / $5.7200 Buy Now
DISTI # 926-LM2673S-12/NOPB
Mouser Electronics Switching Voltage Regulators 3A SD VTG Reg w/ Adj Crnt Limit A 926-LM2673SX-12/NOPB RoHS: Compliant 194
  • 1 $7.5300
  • 10 $5.7100
  • 25 $5.3200
  • 90 $4.6800
  • 270 $4.4400
  • 540 $3.9800
  • 1,035 $3.3600
$3.3600 / $7.5300 Buy Now
DISTI # J56:1989_00060359
Arrow Electronics Conv DC-DC 8V to 40V Step Down Single-Out 12V 3A 8-Pin(7+Tab) TO-263 Tube Min Qty: 45 Package Multiple: 45 Lead time: 6 Weeks Date Code: 2250 Europe - 135
  • 45 $2.7610
$2.7610 Buy Now
DISTI # 85990081
Verical Conv DC-DC 8V to 40V Step Down Single-Out 12V 3A 8-Pin(7+Tab) TO-263 Tube Min Qty: 97 Package Multiple: 1 Date Code: 1401 Americas - 50207
  • 97 $3.9000
$3.9000 Buy Now
Rochester Electronics LM2673 8V to 40V, 3A SIMPLE SWITCHER buck converter with adjustable current limit RoHS: Not Compliant Status: Active Min Qty: 1 50207
  • 25 $3.1200
  • 100 $2.9600
  • 500 $2.8100
  • 1,000 $2.6500
  • 10,000 $2.5000
$2.5000 / $3.1200 Buy Now
DISTI # LM2673S-12/NOPB
TME PMIC, DC/DC converter, Uin: 8÷40VDC, Uout: 12VDC, 3A, TO263-7, SMD Min Qty: 1 0
  • 1 $5.6700
  • 3 $5.1000
  • 10 $4.5100
  • 45 $4.0500
$4.0500 / $5.6700 RFQ
Vyrian Other Function Semiconductors 13158
RFQ

Part Details for LM2673S-12/NOPB

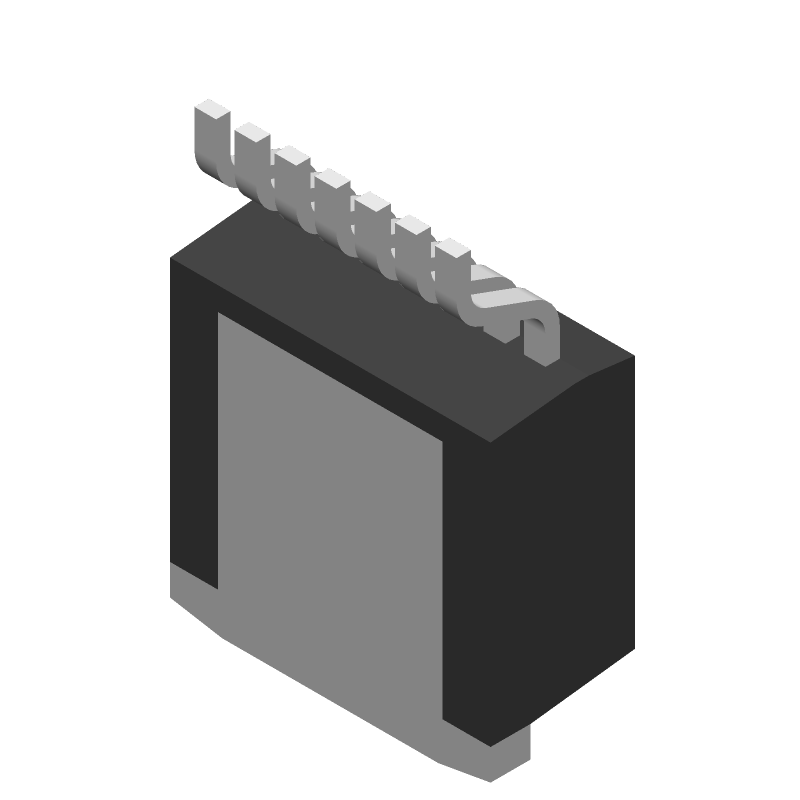

LM2673S-12/NOPB CAD Models

LM2673S-12/NOPB Part Data Attributes

LM2673S-12/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LM2673S-12/NOPB Texas Instruments 8V to 40V, 3A SIMPLE SWITCHER® buck converter with adjustable current limit 7-DDPAK/TO-263 -40 to 125
Pbfree Code Yes
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code D2PAK
Package Description ROHS COMPLIANT, TO-263, 7 PIN
Pin Count 4
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Analog IC - Other Type SWITCHING REGULATOR
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 40 V
Input Voltage-Min 8 V
Input Voltage-Nom 24 V
JESD-30 Code R-PSSO-G7
JESD-609 Code e3
Length 10.16 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Outputs 1
Number of Terminals 7
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current-Max 3 A
Output Voltage-Max 37 V
Output Voltage-Min 1.23 V
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Equivalence Code SMSIP7H,.55,50TB
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
Seated Height-Max 4.79 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 260 kHz
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Width 8.64 mm

Alternate Parts for LM2673S-12/NOPB

This table gives cross-reference parts and alternative options found for LM2673S-12/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2673S-12/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LM2673SX-12/NOPB Texas Instruments $2.4114 8V to 40V, 3A SIMPLE SWITCHER® buck converter with adjustable current limit 7-DDPAK/TO-263 -40 to 125 LM2673S-12/NOPB vs LM2673SX-12/NOPB
LM2673S-12/NOPB National Semiconductor Corporation Check for Price IC 5.4 A SWITCHING REGULATOR, 280 kHz SWITCHING FREQ-MAX, PSSO7, TO-263, 7 PIN, Switching Regulator or Controller LM2673S-12/NOPB vs LM2673S-12/NOPB
LM2673SX-12 Texas Instruments Check for Price 5.4A SWITCHING REGULATOR, 280kHz SWITCHING FREQ-MAX, PSSO7, POWER, TO-263, SMT-7 LM2673S-12/NOPB vs LM2673SX-12
