Power Circuits / Switching Regulator or Controllers / LM2595SX-ADJ/NOPB
Datasheets
LM2595SX-ADJ/NOPB by:

SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-DDPAK/TO-263

Part Details for LM2595SX-ADJ/NOPB by Texas Instruments

Results Overview of LM2595SX-ADJ/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LM2595SX-ADJ/NOPB Information

LM2595SX-ADJ/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LM2595SX-ADJ/NOPB

Part # Distributor Description Stock Price Buy
DISTI # LM2595SX-ADJ/NOPBCT-ND
DigiKey IC REG BUCK ADJ 1A TO263 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2796
In Stock
  • 1 $4.3600
  • 10 $3.3100
  • 25 $3.0460
  • 100 $2.7561
  • 250 $2.6179
  • 500 $2.5345
  • 1,000 $2.4659
  • 1,500 $2.4316
  • 2,500 $2.3935
  • 3,500 $2.3713
$2.3713 / $4.3600 Buy Now
DISTI # 926-LM2595SX-ADJNOPB
Mouser Electronics Switching Voltage Regulators 150 KHZ 1A STEP-DOWN VLTG REG A 926-LM2595S-ADJ/NOPB RoHS: Compliant 1501
  • 1 $4.3600
  • 10 $3.3100
  • 25 $3.0500
  • 100 $2.7600
  • 250 $2.6200
  • 500 $2.5300
  • 1,000 $2.4300
  • 2,500 $2.3600
$2.3600 / $4.3600 Buy Now
DISTI # LM2595SX-ADJ/NOPB
TME PMIC, DC/DC converter, Uin: 4.5÷40VDC, Uout: 1.2÷37VDC, 1A, TO263-5 Min Qty: 1 0
  • 1 $4.7000
  • 5 $4.4000
  • 25 $4.0300
  • 100 $3.5700
  • 250 $3.0000
$3.0000 / $4.7000 RFQ
DISTI # SMC-LM2595SX-ADJ/NOPB
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 820
RFQ
LCSC Step-down type Adjustable 1A 4.5V40V 1.2V37V TO-263-5 DC-DC Converters ROHS 30
  • 1 $3.3400
  • 10 $2.8831
  • 30 $2.6117
  • 100 $2.3372
  • 500 $2.2106
  • 1,000 $2.1548
$2.1548 / $3.3400 Buy Now
Vyrian Other Function Semiconductors 18092
RFQ
Win Source Electronics IC REG BUCK ADJ 1A TO263-5 6570
  • 13 $4.6921
  • 31 $3.8500
  • 47 $3.7296
  • 64 $3.6094
  • 83 $3.4890
  • 111 $3.1281
$3.1281 / $4.6921 Buy Now

Part Details for LM2595SX-ADJ/NOPB

LM2595SX-ADJ/NOPB CAD Models

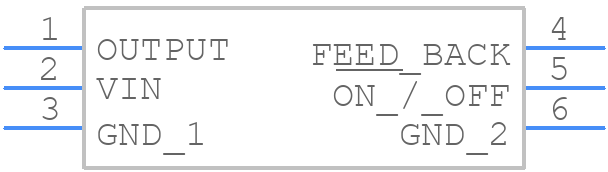

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM2595SX-ADJ/NOPB Part Data Attributes

Parametric Data
LM2595SX-ADJ/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LM2595SX-ADJ/NOPB Texas Instruments SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-DDPAK/TO-263
Pbfree Code Yes
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code D2PAK
Package Description ROHS COMPLIANT,TO-263, 5 PIN
Pin Count 4
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Analog IC - Other Type SWITCHING REGULATOR
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 40 V
Input Voltage-Min 4.5 V
Input Voltage-Nom 12 V
JESD-30 Code R-PSSO-G5
JESD-609 Code e3
Length 10.16 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current-Max 1 A
Output Voltage-Max 37 V
Output Voltage-Min 3.3 V
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Equivalence Code SMSIP5H,.6,67TB
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
Seated Height-Max 4.8 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 173 kHz
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.7 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Width 8.635 mm

Alternate Parts for LM2595SX-ADJ/NOPB

This table gives cross-reference parts and alternative options found for LM2595SX-ADJ/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2595SX-ADJ/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LM2595S-ADJ/NOPB Texas Instruments $2.5903 SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-DDPAK/TO-263 LM2595SX-ADJ/NOPB vs LM2595S-ADJ/NOPB
LM2595S-5.0/NOPB Texas Instruments $3.6935 SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-DDPAK/TO-263 LM2595SX-ADJ/NOPB vs LM2595S-5.0/NOPB
LM2595SX-ADJ Texas Instruments Check for Price SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-DDPAK/TO-263 LM2595SX-ADJ/NOPB vs LM2595SX-ADJ
LM2595SX-5.0 Rochester Electronics LLC Check for Price 2.6A SWITCHING REGULATOR, 173kHz SWITCHING FREQ-MAX, PSSO5, TO-263, 5 PIN LM2595SX-ADJ/NOPB vs LM2595SX-5.0
LM2595S-5.0 National Semiconductor Corporation Check for Price IC 2.6 A SWITCHING REGULATOR, 173 kHz SWITCHING FREQ-MAX, PSSO5, TO-263, SMT-5, Switching Regulator or Controller LM2595SX-ADJ/NOPB vs LM2595S-5.0
LM2595SX-5.0 Texas Instruments Check for Price SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-DDPAK/TO-263 LM2595SX-ADJ/NOPB vs LM2595SX-5.0
LM2595S-5.0/NOPB National Semiconductor Corporation Check for Price IC 2.6 A SWITCHING REGULATOR, 173 kHz SWITCHING FREQ-MAX, PSSO5, TO-263, SMT-5, Switching Regulator or Controller LM2595SX-ADJ/NOPB vs LM2595S-5.0/NOPB
LM2595S-5.0 Texas Instruments Check for Price SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-DDPAK/TO-263 LM2595SX-ADJ/NOPB vs LM2595S-5.0
LM2595S-ADJ Texas Instruments Check for Price SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-DDPAK/TO-263 LM2595SX-ADJ/NOPB vs LM2595S-ADJ
Part Number Manufacturer Composite Price Description Compare
LM2595T-ADJ/NOPB Texas Instruments $2.1925 SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-TO-220 LM2595SX-ADJ/NOPB vs LM2595T-ADJ/NOPB
MIC4575-5.0WT Microchip Technology Inc $4.4000 3.2A SWITCHING REGULATOR, 220kHz SWITCHING FREQ-MAX, SFM5 LM2595SX-ADJ/NOPB vs MIC4575-5.0WT
MIC4575-5.0WU-TR Microchip Technology Inc $4.5950 3.2A SWITCHING REGULATOR, 220kHz SWITCHING FREQ-MAX, PSSO5 LM2595SX-ADJ/NOPB vs MIC4575-5.0WU-TR
LM2595SX-5.0 National Semiconductor Corporation Check for Price IC 2.6 A SWITCHING REGULATOR, 173 kHz SWITCHING FREQ-MAX, PSSO5, TO-263, 5 PIN, Switching Regulator or Controller LM2595SX-ADJ/NOPB vs LM2595SX-5.0
MIC4575-5.0WT Micrel Inc Check for Price Switching Regulator, Voltage-mode, 3.2A, 220kHz Switching Freq-Max, BICMOS, ROHS COMPLIANT, TO-220, 5 PIN LM2595SX-ADJ/NOPB vs MIC4575-5.0WT
LM2575TV-5.0 Motorola Mobility LLC Check for Price 3.2A SWITCHING REGULATOR, 63kHz SWITCHING FREQ-MAX, PZFM5, 314B-05 LM2595SX-ADJ/NOPB vs LM2575TV-5.0
TC2575-5.0VAT Microchip Technology Inc Check for Price 3.2 A SWITCHING REGULATOR, 63 kHz SWITCHING FREQ-MAX, PSFM5, TO-220, 5 PIN LM2595SX-ADJ/NOPB vs TC2575-5.0VAT
LM2575T-5.0 National Semiconductor Corporation Check for Price IC 3.2 A SWITCHING REGULATOR, 63 kHz SWITCHING FREQ-MAX, PSFM5, TO-220, 5 PIN, Switching Regulator or Controller LM2595SX-ADJ/NOPB vs LM2575T-5.0
LM2595T-5.0/NOPB National Semiconductor Corporation Check for Price IC 2.6 A SWITCHING REGULATOR, 173 kHz SWITCHING FREQ-MAX, PZFM5, BENT STAGGERED, TO-220, 5 PIN, Switching Regulator or Controller LM2595SX-ADJ/NOPB vs LM2595T-5.0/NOPB
LM2595T-ADJ/LF02 Texas Instruments Check for Price SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-TO-220 LM2595SX-ADJ/NOPB vs LM2595T-ADJ/LF02

LM2595SX-ADJ/NOPB Related Parts

LM2595SX-ADJ/NOPB Frequently Asked Questions (FAQ)

  • The maximum input voltage is 40V, but it's recommended to keep it below 35V for reliable operation.

  • The output voltage can be set by connecting a resistor divider network between the output and the ADJ pin. The formula to calculate the output voltage is: Vout = 1.23 x (1 + R2/R1).

  • The minimum input voltage is 7V, but it's recommended to keep it above 8V for reliable operation.

  • The LM2595SX-ADJ/NOPB can operate up to 125°C, but the maximum junction temperature is 150°C. It's recommended to keep the operating temperature below 125°C for reliable operation.

  • To ensure stability, it's recommended to use a minimum output capacitance of 22uF and a maximum ESR of 1 ohm. Additionally, the input capacitance should be at least 10uF.
