Part Details for LM2574HVM-3.3/NOPB by Texas Instruments

Results Overview of LM2574HVM-3.3/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

LM2574HVM-3.3/NOPB Information

LM2574HVM-3.3/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LM2574HVM-3.3/NOPB

Part # Distributor Description Stock Price Buy
DISTI # 2156-LM2574HVM-3.3/NOPB-ND
DigiKey IC REG BUCK 3.3V 500MA 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 3541
In Stock
  • 115 $2.6100
$2.6100 Buy Now
DISTI # LM2574HVM-3.3/NOPB-ND
DigiKey IC REG BUCK 3.3V 500MA 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube 1141
In Stock
  • 1 $5.1300
  • 10 $3.9110
  • 50 $3.4232
  • 100 $3.2721
  • 250 $3.1125
  • 500 $3.0163
  • 1,000 $2.9371
  • 2,500 $2.8536
$2.8536 / $5.1300 Buy Now
DISTI # 926-LM2574HVM3.3NOPB
Mouser Electronics Switching Voltage Regulators 0.5A STEP-DOWN VLTG REG A 926-LM2574HVMX33NOPB RoHS: Compliant 109
  • 1 $3.7700
  • 10 $2.8700
  • 50 $2.5000
  • 100 $2.3900
$2.3900 / $3.7700 Buy Now
DISTI # J56:1989_00064303
Arrow Electronics Conv DC-DC 4V to 60V Step Down Single-Out 3.3V 0.5A 14-Pin SOIC W Tube RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 6 Weeks Date Code: 2151 Europe - 50
  • 50 $2.9138
$2.9138 Buy Now
DISTI # V99:2348_07269427
Arrow Electronics Conv DC-DC 4V to 60V Step Down Single-Out 3.3V 0.5A 14-Pin SOIC W Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Americas - 38
  • 0 $2.2380
  • 1 $0.4258
$0.4258 / $2.2380 Buy Now
DISTI # 85989860
Verical Conv DC-DC 4V to 60V Step Down Single-Out 3.3V 0.5A 14-Pin SOIC W Tube RoHS: Compliant Min Qty: 127 Package Multiple: 1 Date Code: 1201 Americas - 3349
  • 127 $2.9750
  • 500 $2.8250
  • 1,000 $2.6625
  • 10,000 $2.5125
$2.5125 / $2.9750 Buy Now
DISTI # 85989009
Verical Conv DC-DC 4V to 60V Step Down Single-Out 3.3V 0.5A 14-Pin SOIC W Tube RoHS: Compliant Min Qty: 127 Package Multiple: 1 Americas - 192
  • 127 $2.9750
  • 500 $2.8250
  • 1,000 $2.6625
  • 10,000 $2.5125
$2.5125 / $2.9750 Buy Now
DISTI # 53168646
Verical Conv DC-DC 4V to 60V Step Down Single-Out 3.3V 0.5A 14-Pin SOIC W Tube RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 1922 Americas - 38
  • 3 $2.2380
$2.2380 Buy Now
Rochester Electronics LM2574HV SIMPLE SWITCHER 0.5A Step-Down Voltage Regulator RoHS: Compliant Status: Active Min Qty: 1 3541
  • 25 $2.5100
  • 100 $2.3800
  • 500 $2.2600
  • 1,000 $2.1300
  • 10,000 $2.0100
$2.0100 / $2.5100 Buy Now
DISTI # LM2574HVM-3.3/NOPB
TME PMIC, DC/DC converter, Uin: 4÷60VDC, Uout: 3.3VDC, 0.5A, SO14, SMD Min Qty: 1 0
  • 1 $4.4100
  • 3 $3.9700
  • 10 $3.5100
  • 50 $3.1500
$3.1500 / $4.4100 RFQ
LCSC Step-down type Fixed 3.3V 500mA SOIC-14-300mil DC-DC Converters ROHS 8
  • 1 $8.1681
  • 10 $8.0293
  • 30 $7.9373
  • 100 $7.8437
$7.8437 / $8.1681 Buy Now
Vyrian Other Function Semiconductors 3731
RFQ
Win Source Electronics IC REG BUCK 3.3V 0.5A 14-SOIC 1200
  • 19 $3.1289
  • 45 $2.5676
  • 70 $2.4867
  • 96 $2.4070
  • 125 $2.3262
  • 167 $2.0859
$2.0859 / $3.1289 Buy Now

Part Details for LM2574HVM-3.3/NOPB

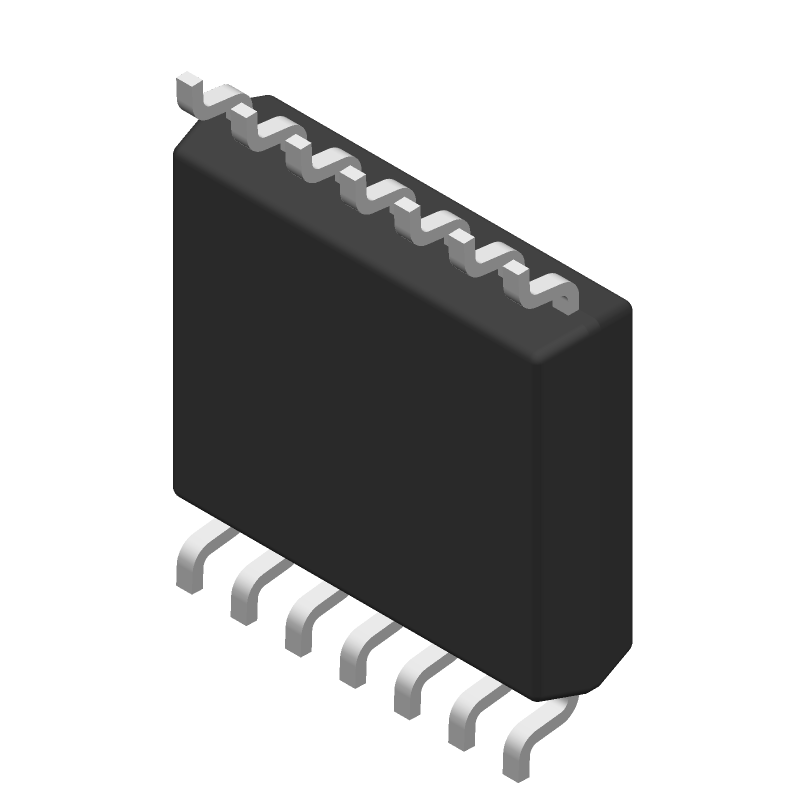

LM2574HVM-3.3/NOPB CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM2574HVM-3.3/NOPB Part Data Attributes

Parametric Data
LM2574HVM-3.3/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LM2574HVM-3.3/NOPB Texas Instruments SIMPLE SWITCHER 0.5A Step-Down Voltage Regulator 14-SOIC -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description GREEN, SMT-14
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Analog IC - Other Type SWITCHING REGULATOR
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 60 V
Input Voltage-Min 4 V
Input Voltage-Nom 12 V
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 9 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Outputs 1
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.5 A
Output Voltage-Max 37 V
Output Voltage-Min 3.3 V
Output Voltage-Nom 3.3 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 52 kHz
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 7.5 mm
