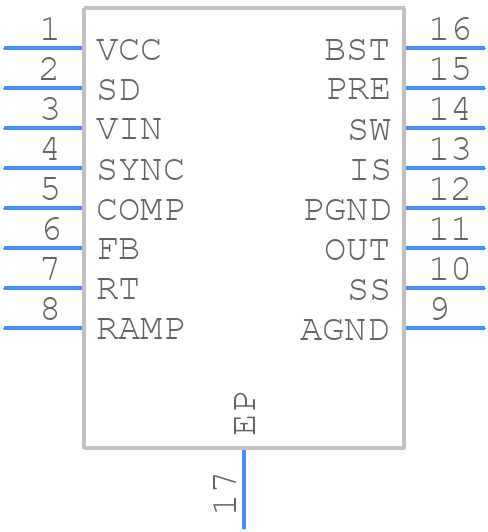

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM25575MH by Texas Instruments
Results Overview of LM25575MH by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LM25575MH Information
LM25575MH by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM25575MH
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-43519-5-ND
|
DigiKey | IC REG BUCK ADJ 1.5A 16HTSSOP Min Qty: 1 Lead time: 18 Weeks Container: Tube |
14 In Stock |
|
$7.3760 / $9.4700 | Buy Now |
|
|
Rochester Electronics | LM25575 6V to 42V, 1.5A Step-Down DC/DC Switching Regulator RoHS: Not Compliant Status: Not Recommended for New Designs Min Qty: 1 | 23 |
|
$4.3600 / $5.4500 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 1.5A 16HTSSOP | 16260 |
|
$1.3000 / $1.6791 | Buy Now |
Part Details for LM25575MH
LM25575MH CAD Models
LM25575MH Part Data Attributes
|
|
LM25575MH
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM25575MH
Texas Instruments
6V to 42V, 1.5A Step-Down DC/DC Switching Regulator 16-HTSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | HTSSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO OPRERATES IN ADJUSTABLE MODE FROM 1.225V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 42 V | |
| Input Voltage-Min | 6 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e0 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.5 A | |
| Output Voltage-Max | 40 V | |
| Output Voltage-Min | 1.23 V | |
| Output Voltage-Nom | 7.15 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1000 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm |
Alternate Parts for LM25575MH
This table gives cross-reference parts and alternative options found for LM25575MH. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM25575MH, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM25575MHX/NOPB | Texas Instruments | $2.7783 | 6V to 42V, 1.5A Step-Down DC/DC Switching Regulator 16-HTSSOP -40 to 125 | LM25575MH vs LM25575MHX/NOPB |
| LM25575MHX/NOPB | Rochester Electronics LLC | Check for Price | 2.5A SWITCHING REGULATOR, 545kHz SWITCHING FREQ-MAX, PDSO16, TSSOP-16 | LM25575MH vs LM25575MHX/NOPB |
LM25575MH Frequently Asked Questions (FAQ)
-
The recommended input capacitor value is 10uF to 22uF, with an ESR of 0.1 ohms or less, to ensure stability and reduce input ripple.
-
To ensure the LM25575MH operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the device is not subjected to excessive voltage, current, or temperature stress.
-
The maximum output current capability of the LM25575MH is 5A, but it can be limited by the thermal design and the input voltage. Consult the datasheet for more information.
-
Yes, the LM25575MH is rated for operation up to 125°C junction temperature. However, ensure proper thermal design and heat sinking to prevent overheating.
-
Follow good PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Consult the datasheet and application notes for more information.
