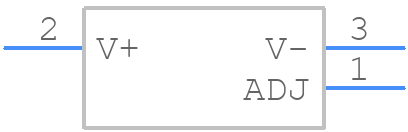

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM235Z by STMicroelectronics
Results Overview of LM235Z by STMicroelectronics
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Energy and Power Systems
LM235Z Information
LM235Z by STMicroelectronics is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for LM235Z
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
95M6455
|
Newark | Temp Sensor, Analogue, To-92-3, Sensor Output Type:Analog, Accuracy:1.5°C, Sensor Case/Package:To-92, No. Of Pins:3Pins, Supply Voltage Min:2.92V, Supply Voltage Max:3.04V, No. Of Channels:-, Resolution:-, Output Interface:- Rohs Compliant: Yes |Stmicroelectronics LM235Z RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Bulk | 6772 |
|
$0.2730 / $0.4470 | Buy Now |
|
DISTI #
26AM3758
|
Newark | Temperature Sensor |Stmicroelectronics LM235Z RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1880 | Buy Now |
|
DISTI #
497-7324-ND
|
DigiKey | SENSOR ANALOG -40C-125C TO92-3 Min Qty: 1 Lead time: 26 Weeks Container: Bulk |
29509 In Stock |
|
$0.2197 / $0.4000 | Buy Now |
|
DISTI #
LM235Z
|
Avnet Americas | Temperature Sensor IC, Analogue, 1.5?C, -40 ?C, 125 ?C, TO-92, 3 Pins - Bag (Alt: LM235Z) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 26 Weeks, 0 Days Container: Bag | 2500 |
|
$0.1800 / $0.1880 | Buy Now |
|
DISTI #
511-LM235Z
|
Mouser Electronics | Board Mount Temperature Sensors 3-Term Adjust Currnt RoHS: Compliant | 20366 |
|
$0.2060 / $0.3800 | Buy Now |
|
DISTI #
E02:0323_00034345
|
Arrow Electronics | Temp Sensor Analog 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 26 Weeks Date Code: 2511 | Europe - 140537 |
|
$0.1885 / $0.3613 | Buy Now |
|
DISTI #
V36:1790_06553332
|
Arrow Electronics | Temp Sensor Analog 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 26 Weeks Date Code: 2423 | Americas - 19890 |
|
$0.2007 / $0.3433 | Buy Now |
|
|
STMicroelectronics | Precision Temperature Sensor RoHS: Compliant Min Qty: 1 | 20286 |
|
$0.2300 / $0.3300 | Buy Now |
|
DISTI #
88051819
|
Verical | Temp Sensor Analog 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 2511 | Americas - 140537 |
|
$0.1896 / $0.2668 | Buy Now |
|
DISTI #
LM235Z
|
TME | IC: temperature sensor, diode, -40÷125°C, TO92, THT, Accur: ±1.5°C Min Qty: 1 | 3463 |
|
$0.1550 / $0.3940 | Buy Now |
Part Details for LM235Z
LM235Z CAD Models
LM235Z Part Data Attributes
|
|
LM235Z
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LM235Z
STMicroelectronics
Precision Temperature Sensor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | PLASTIC, TO-92, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Accuracy-Max (Cel) | 1 Cel | |
| Body Breadth | 4 mm | |
| Body Height | 5 mm | |
| Body Length or Diameter | 5 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Linearity (Cel) | 1 Cel | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 3 | |
| Operating Current-Max | 5 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 3.01 V | |
| Output Voltage-Min | 2.95 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape/Style | ROUND | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
