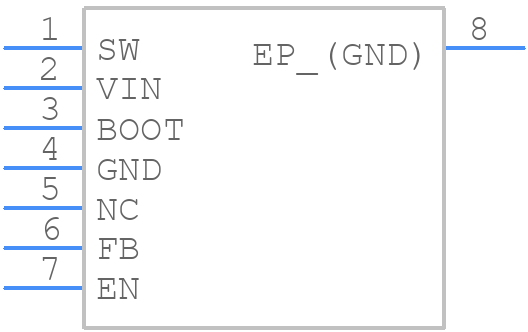

Part Symbol
-

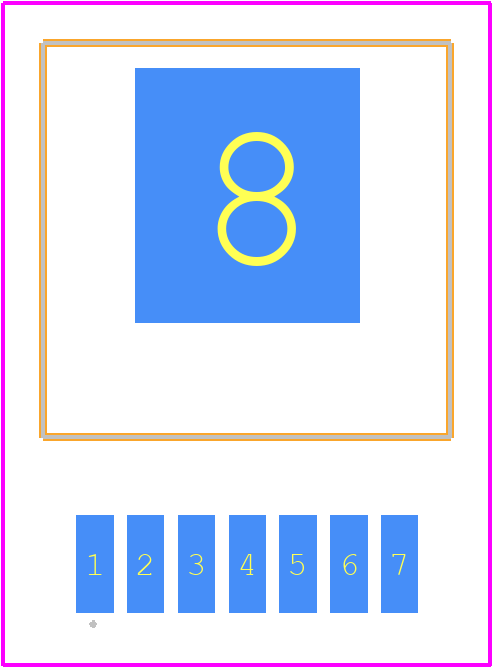

Footprint
-

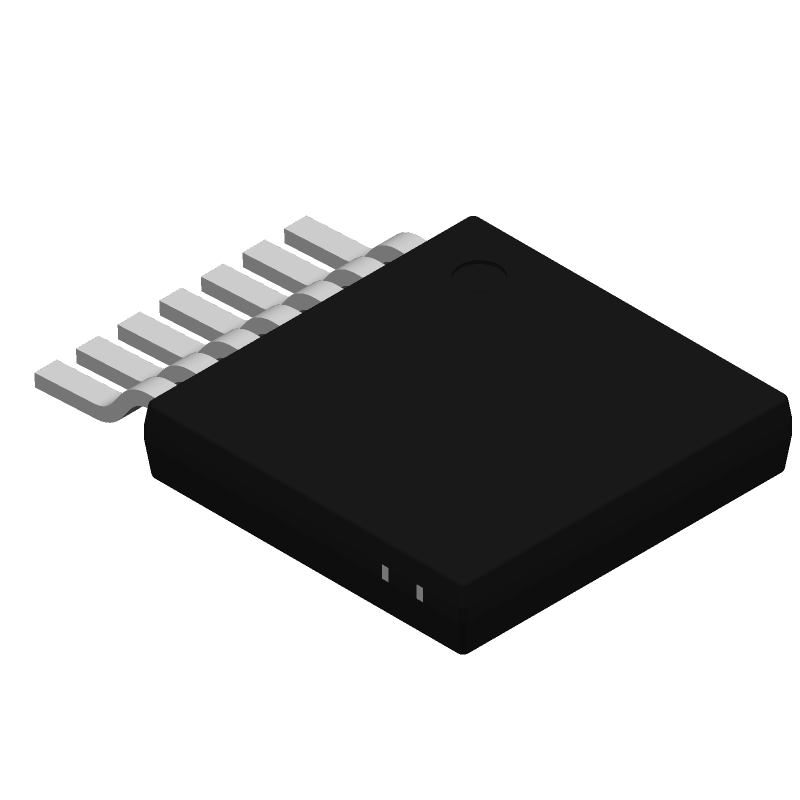

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM22678TJE-ADJ/NOPB by Texas Instruments
Results Overview of LM22678TJE-ADJ/NOPB by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Energy and Power Systems
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
LM22678TJE-ADJ/NOPB Information
LM22678TJE-ADJ/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM22678TJE-ADJ/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM22678TJE-ADJ/NOPBCT-ND
|
DigiKey | IC REG BUCK ADJ 5A TO263-7 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
587 In Stock |
|
$4.2511 / $7.3300 | Buy Now |
|
DISTI #
926-M22678TJEADJNOPB
|
Mouser Electronics | Switching Voltage Regulators 5A STEP-DOWN VLTG RE G A 926-LM22678TJADJNOPB RoHS: Compliant | 6219 |
|
$3.7600 / $6.7300 | Buy Now |
|
DISTI #
LM22678TJE-ADJ/NOPB
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 170 |
|
$3.2800 / $6.4600 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 5A TO263-7 | 3200 |
|
$5.6249 / $7.2650 | Buy Now |
Part Details for LM22678TJE-ADJ/NOPB
LM22678TJE-ADJ/NOPB CAD Models
LM22678TJE-ADJ/NOPB Part Data Attributes
|
|
LM22678TJE-ADJ/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM22678TJE-ADJ/NOPB
Texas Instruments
SIMPLE SWITCHER® 4.5V to 42V, 5A Step-Down Voltage Regulator with Precision Enable 7-TO-263 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TO-263 | |
| Package Description | TO-263, PFM-7 | |
| Pin Count | 7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO HAS ADJUSTABLE OUTPUTS AS LOW AS 1.285V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 42 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PSSO-G7 | |
| JESD-609 Code | e3 | |
| Length | 10.16 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5 A | |
| Output Voltage-Max | 37 V | |
| Output Voltage-Min | 1.285 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-263 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.25 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 500 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9.85 mm |
Alternate Parts for LM22678TJE-ADJ/NOPB
This table gives cross-reference parts and alternative options found for LM22678TJE-ADJ/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM22678TJE-ADJ/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM22678QTJE-ADJ | Texas Instruments | Check for Price | 8.75A SWITCHING REGULATOR, 600kHz SWITCHING FREQ-MAX, PSSO7, PLASTIC, TO-263, 7 PIN | LM22678TJE-ADJ/NOPB vs LM22678QTJE-ADJ |
| LM22678QTJE-ADJ/NOPB | Texas Instruments | Check for Price | 5A SIMPLE SWITCHER, Step-Down Voltage Regulator with Precision Enable 7-TO-263 -40 to 125 | LM22678TJE-ADJ/NOPB vs LM22678QTJE-ADJ/NOPB |
LM22678TJE-ADJ/NOPB Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LM22678TJE-ADJ/NOPB is 42V, but it's recommended to keep it below 40V for reliable operation.
-
The output voltage of the LM22678TJE-ADJ/NOPB can be adjusted by connecting a resistor divider network between the output and the ADJ pin, and then connecting the center tap of the divider to the ADJ pin.
-
The minimum input voltage required for the LM22678TJE-ADJ/NOPB to operate is 7.2V, but it's recommended to keep it above 8V for reliable operation.
-
The LM22678TJE-ADJ/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
-
To ensure the stability of the LM22678TJE-ADJ/NOPB output voltage, it's recommended to use a minimum output capacitance of 10uF, and to keep the output voltage within the recommended range of 1.285V to 36V.
