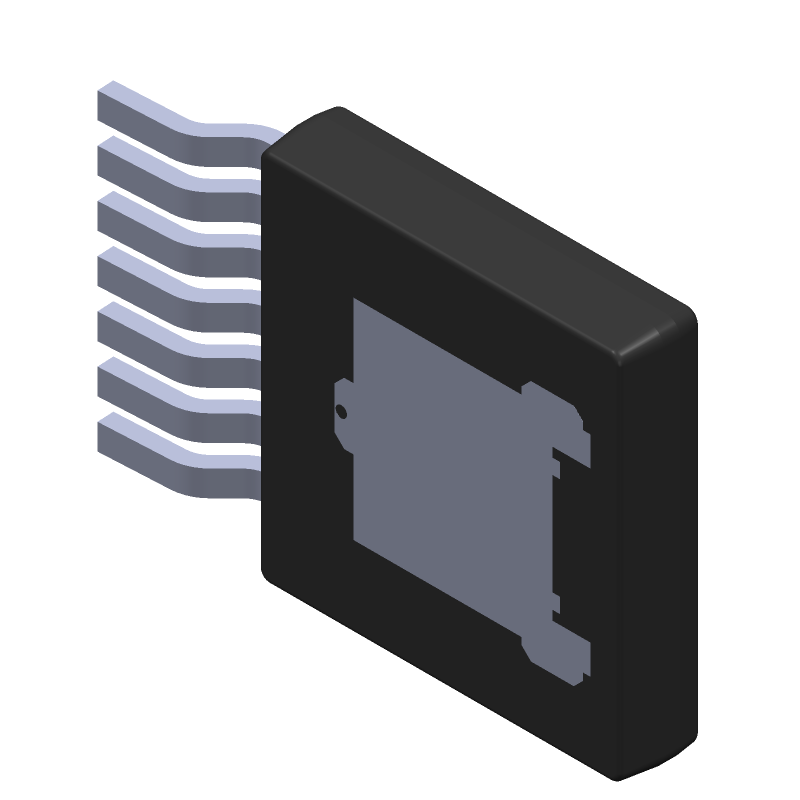

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM22678TJ-ADJ/NOPB by Texas Instruments
Results Overview of LM22678TJ-ADJ/NOPB by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Energy and Power Systems
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
LM22678TJ-ADJ/NOPB Information
LM22678TJ-ADJ/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM22678TJ-ADJ/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM22678TJ-ADJ/NOPBCT-ND
|
DigiKey | IC REG BUCK ADJ 5A TO263-7 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1761 In Stock |
|
$3.5421 / $6.2200 | Buy Now |
|
DISTI #
926-LM22678TJADJNOPB
|
Mouser Electronics | Switching Voltage Regulators 5A SD Vtg Reg A 926-M22678TJEADJNOPB RoHS: Compliant | 1183 |
|
$3.1700 / $5.7100 | Buy Now |
|
|
LCSC | Step-down type Adjustable 1.285V37V 4.5V42V 5A TO-263-7 DC-DC Converters ROHS | 40 |
|
$3.9585 / $5.6430 | Buy Now |
|
|
Win Source Electronics | Conv DC-DC 4.5V to 42V Inv/Step Down Single-Out 1.285V 5A 8-Pin(7+Tab) TO-263 T/R / IC REG BUCK ADJ 5A TO263-7 | 3000 |
|
$5.4471 / $8.1706 | Buy Now |
Part Details for LM22678TJ-ADJ/NOPB
LM22678TJ-ADJ/NOPB CAD Models
LM22678TJ-ADJ/NOPB Part Data Attributes
|
|
LM22678TJ-ADJ/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM22678TJ-ADJ/NOPB
Texas Instruments
SIMPLE SWITCHER® 4.5V to 42V, 5A Step-Down Voltage Regulator with Precision Enable 7-TO-263 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TO-263 | |
| Package Description | TO-263, PFM-7 | |
| Pin Count | 7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO HAS ADJUSTABLE OUTPUTS AS LOW AS 1.285V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 42 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PSSO-G7 | |
| JESD-609 Code | e3 | |
| Length | 10.16 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5 A | |
| Output Voltage-Max | 37 V | |
| Output Voltage-Min | 1.285 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-263 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.25 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 500 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9.85 mm |
Alternate Parts for LM22678TJ-ADJ/NOPB
This table gives cross-reference parts and alternative options found for LM22678TJ-ADJ/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM22678TJ-ADJ/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM22678QTJE-ADJ | Texas Instruments | Check for Price | 8.75A SWITCHING REGULATOR, 600kHz SWITCHING FREQ-MAX, PSSO7, PLASTIC, TO-263, 7 PIN | LM22678TJ-ADJ/NOPB vs LM22678QTJE-ADJ |
| LM22678QTJE-ADJ/NOPB | Texas Instruments | Check for Price | 5A SIMPLE SWITCHER, Step-Down Voltage Regulator with Precision Enable 7-TO-263 -40 to 125 | LM22678TJ-ADJ/NOPB vs LM22678QTJE-ADJ/NOPB |
| LM22678TJE-ADJ/NOPB | Rochester Electronics LLC | Check for Price | 8.75 A SWITCHING REGULATOR, 600 kHz SWITCHING FREQ-MAX, PSSO7, ROHS COMPLIANT, PLASTIC, TO-263, 7 PIN | LM22678TJ-ADJ/NOPB vs LM22678TJE-ADJ/NOPB |
LM22678TJ-ADJ/NOPB Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LM22678TJ-ADJ/NOPB is 42V, but it's recommended to keep it below 40V for reliable operation.
-
The output voltage of the LM22678TJ-ADJ/NOPB can be adjusted by connecting a resistor divider network between the output and the ADJ pin. The ratio of the resistors determines the output voltage.
-
The minimum input capacitance required for the LM22678TJ-ADJ/NOPB is 10uF, but it's recommended to use a higher value (e.g. 22uF) for better performance and stability.
-
The LM22678TJ-ADJ/NOPB is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures.
-
To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient input capacitance, and avoid high-frequency noise on the input and output lines.
