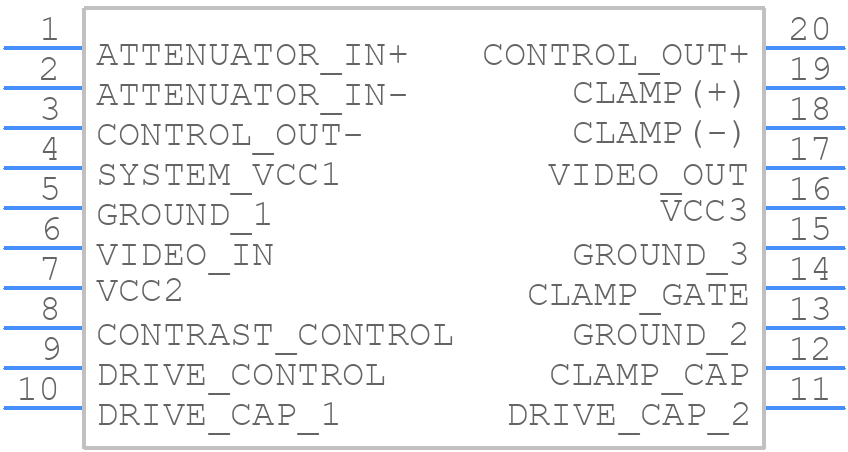

Part Symbol
-
Footprint
-

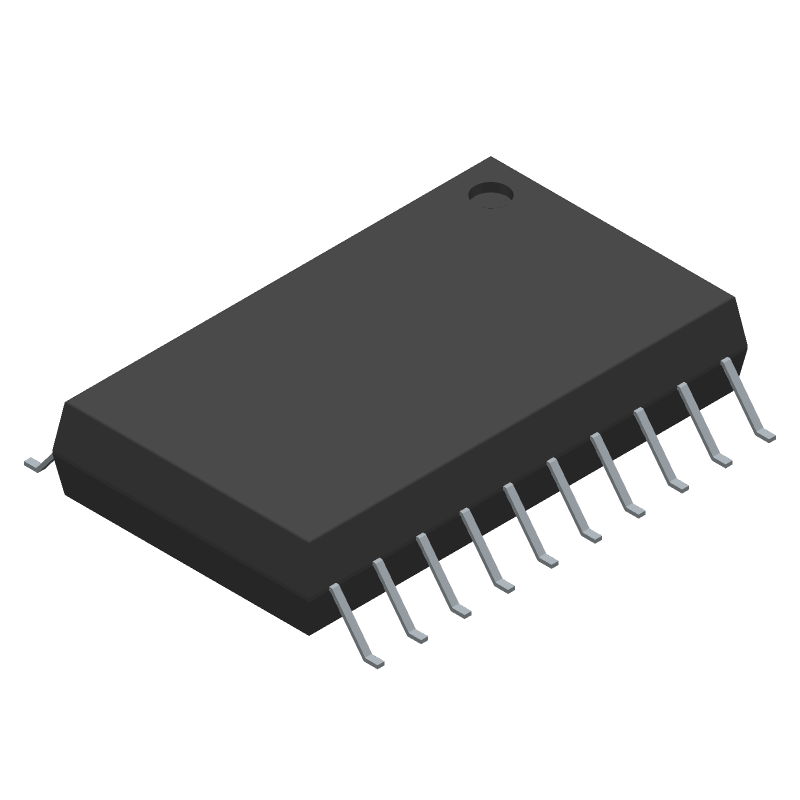

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM2202M by Texas Instruments
Results Overview of LM2202M by Texas Instruments
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part Details for LM2202M
LM2202M CAD Models
LM2202M Part Data Attributes
|
|
LM2202M
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM2202M
Texas Instruments
1 CHANNEL, VIDEO AMPLIFIER, PDSO20, SOP
|
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOP | |
| Pin Count | 20 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Bandwidth-Nom | 230000 kHz | |
| Consumer IC Type | VIDEO AMPLIFIER | |
| Harmonic Distortion | 0.5% | |
| JESD-30 Code | R-PDSO-G20 | |
| Length | 12.8 mm | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 13.2 V | |
| Supply Voltage-Min (Vsup) | 8 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 7.5 mm |
Alternate Parts for LM2202M
This table gives cross-reference parts and alternative options found for LM2202M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2202M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM2202MX | Texas Instruments | Check for Price | 1 CHANNEL, VIDEO AMPLIFIER, PDSO20, M20B | LM2202M vs LM2202MX |
| LM2202MX/NOPB | Texas Instruments | Check for Price | 1 CHANNEL, VIDEO AMPLIFIER, PDSO20, M20B | LM2202M vs LM2202MX/NOPB |
