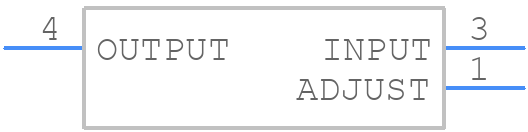

Part Symbol
-

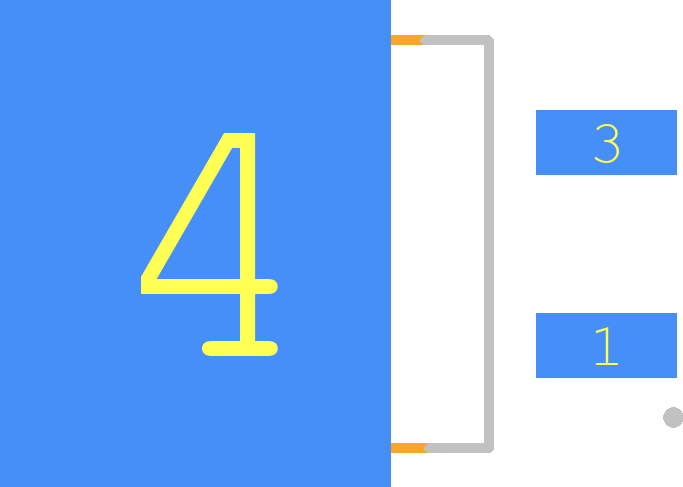

Footprint
-

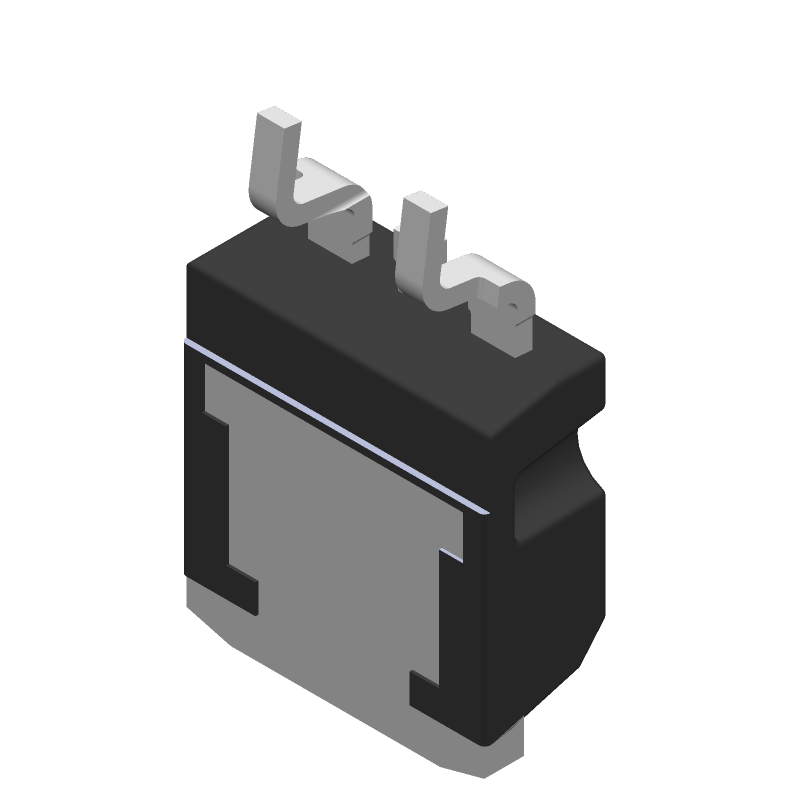

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM217D2T-TR by STMicroelectronics
Results Overview of LM217D2T-TR by STMicroelectronics
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM217D2T-TR Information
LM217D2T-TR by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM217D2T-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
27AC7482
|
Newark | Power Management Rohs Compliant: Yes |Stmicroelectronics LM217D2T-TR RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 3000 |
|
$0.6680 / $0.7230 | Buy Now |
|
DISTI #
69AH0620
|
Newark | Volt Reg, Adj, 37V, 1.5A, -25 To 150Degc Rohs Compliant: Yes |Stmicroelectronics LM217D2T-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 472 |
|
$1.0900 / $1.4300 | Buy Now |
|
DISTI #
45Y5395
|
Newark | Linear Volt Reg, 1.5A, 1.2-37V, To-263-3, Fixed Output Voltage Nom.:-, Adjustable Output Voltage Min:1.2V, Adjustable Output Voltage Max:37V, Input Voltage Min:-, Input Voltage Max:40V, Product Range:-, Output Current:1.5A, Output Rohs Compliant: Yes |Stmicroelectronics LM217D2T-TR RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.7680 / $0.8080 | Buy Now |
|
DISTI #
497-7320-1-ND
|
DigiKey | IC REG LINEAR POS ADJ 1.5A D2PAK Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
5844 In Stock |
|
$0.5744 / $1.2400 | Buy Now |
|
DISTI #
LM217D2T-TR
|
Avnet Americas | Linear Voltage Regulator, Adjustable, Positive, 3 V to 40 V, 1.2 V to 37 V, 1.5 A, 3 Pins, TO-263 (D2PAK) - Tape and Reel (Alt: LM217D2T-TR) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 3000 |
|
$0.3552 / $0.3773 | Buy Now |
|
DISTI #
LM217D2T-TR
|
Avnet Americas | Linear Voltage Regulator, Adjustable, Positive, 3 V to 40 V, 1.2 V to 37 V, 1.5 A, 3 Pins, TO-263 (D2PAK) - Tape and Reel (Alt: LM217D2T-TR) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.3596 / $0.3841 | Buy Now |
|
DISTI #
511-LM217D2T-TR
|
Mouser Electronics | Linear Voltage Regulators 1.2-37V Adj Positive RoHS: Compliant | 4110 |
|
$0.5540 / $1.2400 | Buy Now |
|
DISTI #
V36:1790_06553320
|
Arrow Electronics | Standard Regulator Pos 1.2V to 37V 1.5A 3-Pin(2+Tab) D2PAK T/R Min Qty: 2000 Package Multiple: 1000 Lead time: 8 Weeks Date Code: 2443 | Americas - 46000 |
|
$0.4628 / $0.4770 | Buy Now |
|
DISTI #
E02:0323_00027748
|
Arrow Electronics | Standard Regulator Pos 1.2V to 37V 1.5A 3-Pin(2+Tab) D2PAK T/R Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks Date Code: 2452 | Europe - 20000 |
|
$0.6264 / $0.6739 | Buy Now |
|
|
STMicroelectronics | 1.2 V to 37 V adjustable voltage regulators COO: China RoHS: Compliant Min Qty: 1 | 4120 |
|
$0.6300 / $1.2200 | Buy Now |
Part Details for LM217D2T-TR
LM217D2T-TR CAD Models
LM217D2T-TR Part Data Attributes
|
|
LM217D2T-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LM217D2T-TR
STMicroelectronics
1.2 V to 37 V adjustable voltage regulators
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | D2PAK | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustability | ADJUSTABLE | |
| Input-Output Voltage Differential-Max | 40 V | |
| Input-Output Voltage Differential-Min | 3 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Length | 10.2 mm | |
| Line Regulation-Max (%/V) | 0.05 | |
| Load Regulation-Max(%) | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -25 °C | |
| Output Current1-Max | 1.5 A | |
| Output Voltage1-Max | 37 V | |
| Output Voltage1-Min | 1.2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-263 | |
| Package Equivalence Code | SMSIP3H,.55TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 4.83 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 9.15 mm |
Alternate Parts for LM217D2T-TR
This table gives cross-reference parts and alternative options found for LM217D2T-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM217D2T-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM317BD2T | Motorola Semiconductor Products | Check for Price | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, PSSO2, PLASTIC, D2PAK-3 | LM217D2T-TR vs LM317BD2T |
| LM317D2T | STMicroelectronics | Check for Price | 1.2 V to 37 V adjustable voltage regulators | LM217D2T-TR vs LM317D2T |
| LM317BD2TR4 | Motorola Semiconductor Products | Check for Price | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, PSSO2, PLASTIC, D2PAK-3 | LM217D2T-TR vs LM317BD2TR4 |
| LM317D2TXM | Fairchild Semiconductor Corporation | Check for Price | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, PSSO3, LEAD FREE, D2PAK-3 | LM217D2T-TR vs LM317D2TXM |
| LM317D2TR4 | Motorola Semiconductor Products | Check for Price | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, PSSO2, PLASTIC, D2PAK-3 | LM217D2T-TR vs LM317D2TR4 |
| LM317BD2TR4 | Motorola Mobility LLC | Check for Price | 1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PSSO2, PLASTIC, D2PAK-3 | LM217D2T-TR vs LM317BD2TR4 |
| LM317D2T | onsemi | Check for Price | 1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PSSO2, PLASTIC, D2PAK-3 | LM217D2T-TR vs LM317D2T |
