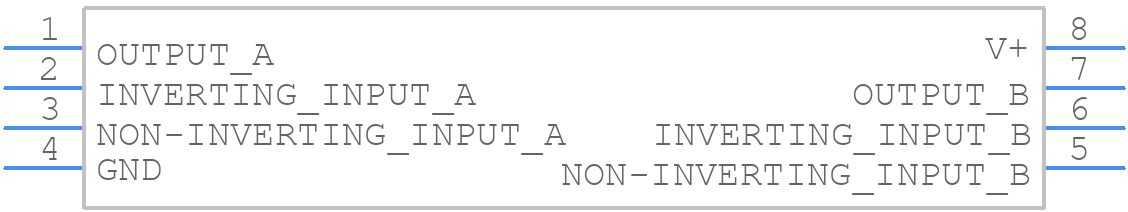

Part Symbol
-
Footprint
-

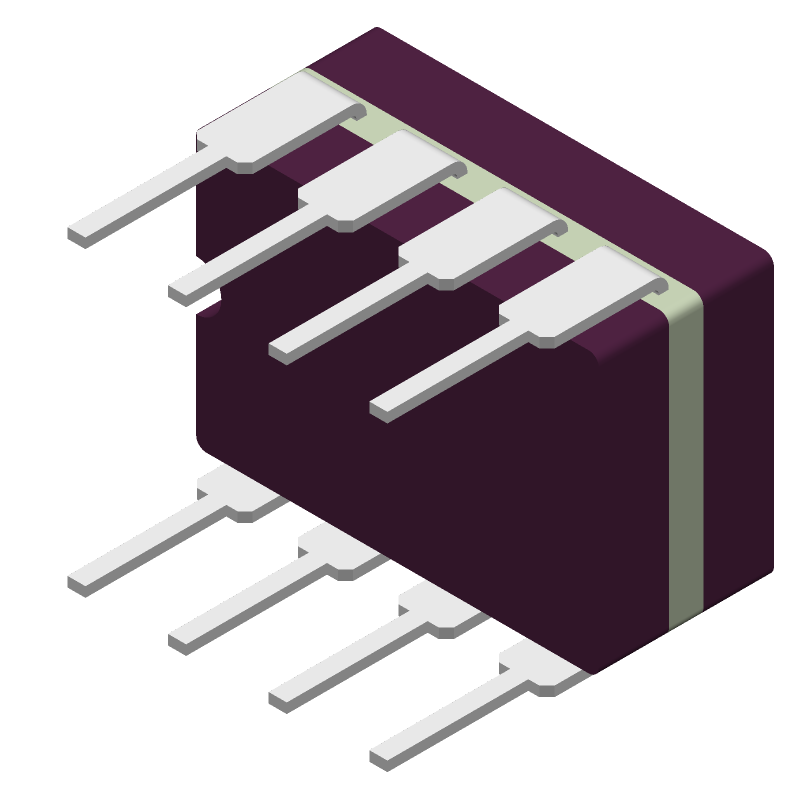

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM158AJRLQMLV by Texas Instruments
Results Overview of LM158AJRLQMLV by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
LM158AJRLQMLV Information
LM158AJRLQMLV by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM158AJRLQMLV | Texas Instruments | Low Power Dual Operational Amplifier 8-CDIP -55 to 125 |
Price & Stock for LM158AJRLQMLV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-LM158AJRLQMLV-ND
|
DigiKey | SPACE-GRADE, DUAL, 32-V, 700-KHZ Lead time: 6 Weeks Container: Tube | Temporarily Out of Stock |
|
Buy Now | |
|
|
Cytech Systems Limited | SPACE-GRADE, DUAL, 32-V, 700-KHZ | 1000 |
|
RFQ | |
|
|
Vyrian | Amplifiers | 4668 |
|
RFQ |
Part Details for LM158AJRLQMLV
LM158AJRLQMLV CAD Models
LM158AJRLQMLV Part Data Attributes
|
|
LM158AJRLQMLV
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM158AJRLQMLV
Texas Instruments
Space-grade, dual, 32-V, 700-kHz operational amplifier 8-CDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | CERAMIC, DIP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.001 µA | |
| Bias Current-Max (IIB) @25C | 0.05 µA | |
| Common-mode Reject Ratio-Min | 65 dB | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.03 µA | |
| Input Offset Voltage-Max | 2000 µV | |
| JESD-30 Code | R-GDIP-T8 | |
| JESD-609 Code | e0 | |
| Length | 10.16 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | CERAMIC, GLASS-SEALED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Screening Level | MIL-PRF-38535 Class V | |
| Seated Height-Max | 5.08 mm | |
| Slew Rate-Nom | 0.5 V/us | |
| Supply Current-Max | 1.2 mA | |
| Supply Voltage Limit-Max | 32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Total Dose | 100k Rad(Si) V | |
| Unity Gain BW-Nom | 700 | |
| Voltage Gain-Min | 25000 | |
| Wideband | NO | |
| Width | 7.62 mm |
Alternate Parts for LM158AJRLQMLV
This table gives cross-reference parts and alternative options found for LM158AJRLQMLV. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM158AJRLQMLV, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 5962-8771002VPX | Texas Instruments | Check for Price | DUAL OP-AMP, 4000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP8, CERDIP-8 | LM158AJRLQMLV vs 5962-8771002VPX |
| LM158AJRLQMLV | National Semiconductor Corporation | Check for Price | IC DUAL OP-AMP, 4000 uV OFFSET-MAX, 1 MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8, Operational Amplifier | LM158AJRLQMLV vs LM158AJRLQMLV |
| 5962L8771002QPA | Texas Instruments | Check for Price | DUAL OP-AMP, 4000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8 | LM158AJRLQMLV vs 5962L8771002QPA |
| 5962L8771002QPA | National Semiconductor Corporation | Check for Price | IC DUAL OP-AMP, 4000 uV OFFSET-MAX, 1 MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8, Operational Amplifier | LM158AJRLQMLV vs 5962L8771002QPA |
| 5962-8771002VPX | National Semiconductor Corporation | Check for Price | IC DUAL OP-AMP, 4000 uV OFFSET-MAX, 1 MHz BAND WIDTH, CDIP8, CERDIP-8, Operational Amplifier | LM158AJRLQMLV vs 5962-8771002VPX |
| LM158AJLQML | Texas Instruments | Check for Price | DUAL OP-AMP, 4000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8 | LM158AJRLQMLV vs LM158AJLQML |
| 5962L8771002VPX | National Semiconductor Corporation | Check for Price | IC DUAL OP-AMP, 4000 uV OFFSET-MAX, 1 MHz BAND WIDTH, CDIP8, CERDIP-8, Operational Amplifier | LM158AJRLQMLV vs 5962L8771002VPX |
| 5962R8771002VPA | Texas Instruments | Check for Price | Space-grade, dual, 32-V, 700-kHz operational amplifier 8-CDIP -55 to 125 | LM158AJRLQMLV vs 5962R8771002VPA |
| 5962-8771002MPA | Texas Instruments | Check for Price | DUAL OP-AMP, 4000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8 | LM158AJRLQMLV vs 5962-8771002MPA |
| 5962-8771002VPA | National Semiconductor Corporation | Check for Price | IC DUAL OP-AMP, 5000 uV OFFSET-MAX, 1 MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8, Operational Amplifier | LM158AJRLQMLV vs 5962-8771002VPA |
