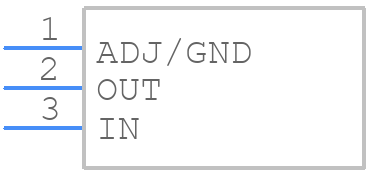

Part Symbol
-

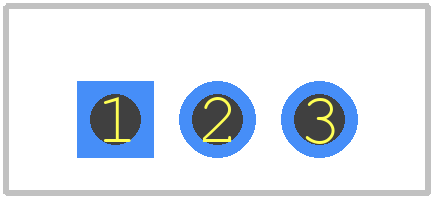

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM1117T-3.3 by Texas Instruments
Results Overview of LM1117T-3.3 by Texas Instruments
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM1117T-3.3 Information
LM1117T-3.3 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part Details for LM1117T-3.3
LM1117T-3.3 CAD Models
LM1117T-3.3 Part Data Attributes
|
|
LM1117T-3.3
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM1117T-3.3
Texas Instruments
3.3V FIXED POSITIVE LDO REGULATOR, 1.3V DROPOUT, PSFM3, TO-220, 3 PIN
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SFM | |
| Package Description | TO-220, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.3 V | |
| Dropout Voltage1-Nom | 1.2 V | |
| Input Voltage Absolute-Max | 20 V | |
| Input Voltage-Max | 15 V | |
| Input Voltage-Min | 4.75 V | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e0 | |
| Length | 10.16 mm | |
| Line Regulation-Max | 0.006% | |
| Load Regulation-Max | 0.01% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 0.8 A | |
| Output Voltage1-Max | 3.365 V | |
| Output Voltage1-Min | 3.235 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | TO-220 | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Packing Method | RAIL | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 19.65 mm | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 2% | |
| Width | 4.55 mm |
Alternate Parts for LM1117T-3.3
This table gives cross-reference parts and alternative options found for LM1117T-3.3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM1117T-3.3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM1117T-3.3/NOPB | Texas Instruments | $1.0852 | 800-mA 15-V linear voltage regulator 3-TO-220 0 to 125 | LM1117T-3.3 vs LM1117T-3.3/NOPB |
LM1117T-3.3 Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LM1117T-3.3 is 15V, but it's recommended to keep it below 12V for reliable operation.
-
The LM1117T-3.3 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures.
-
To ensure stability, use a minimum output capacitance of 10uF, and keep the distance between the output capacitor and the regulator as short as possible. Also, use a low-ESR capacitor to minimize oscillations.
-
Yes, the LM1117T-3.3 is suitable for battery-powered devices due to its low quiescent current (IQ) of 5mA. However, consider using a low-dropout regulator like the TLV703 for even lower IQ.
-
Use a TVS (transient voltage suppressor) diode or a zener diode in parallel with the input capacitor to protect the regulator from input voltage transients.
