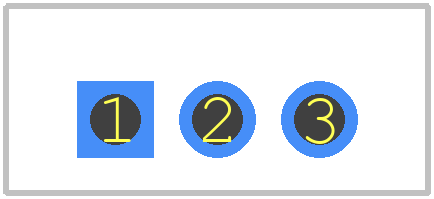

Footprint
-

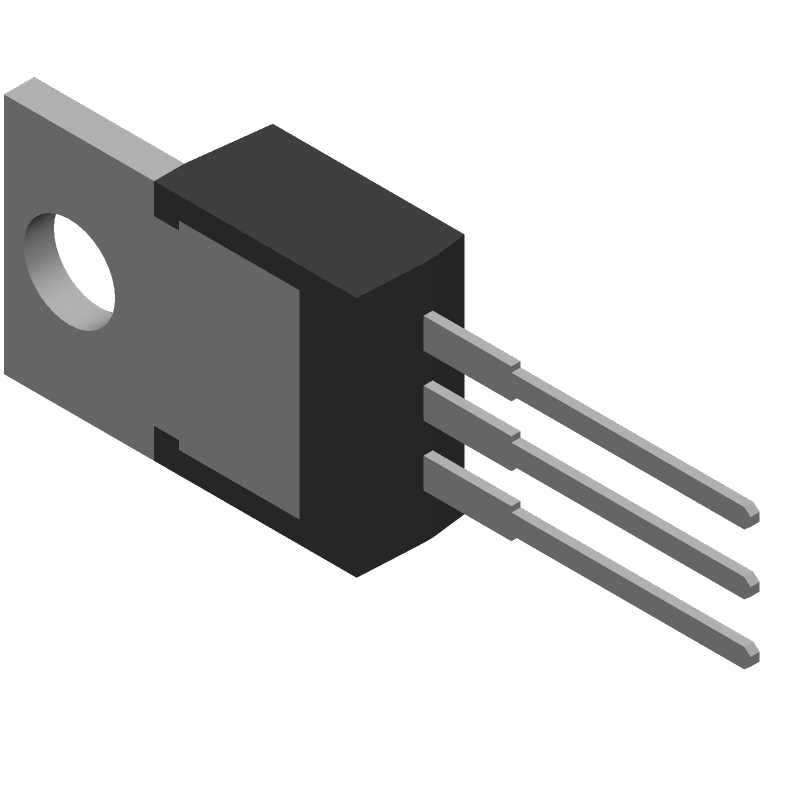

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM1086CT-3.3 by Texas Instruments
Results Overview of LM1086CT-3.3 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
LM1086CT-3.3 Information
LM1086CT-3.3 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM1086CT-3.3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 428 |
|
RFQ |
Part Details for LM1086CT-3.3
LM1086CT-3.3 CAD Models
LM1086CT-3.3 Part Data Attributes
|
|
LM1086CT-3.3
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM1086CT-3.3
Texas Instruments
3.3V FIXED POSITIVE LDO REGULATOR, 1.5V DROPOUT, PSFM3, TO-220, 3 PIN
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SFM | |
| Package Description | TO-220, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.5 V | |
| Dropout Voltage1-Nom | 1.3 V | |
| Input Voltage Absolute-Max | 27 V | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 4.5 V | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e0 | |
| Length | 10.16 mm | |
| Line Regulation-Max | 0.01% | |
| Load Regulation-Max | 0.025% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 1.5 A | |
| Output Voltage1-Max | 3.365 V | |
| Output Voltage1-Min | 3.235 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-220 | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Packing Method | RAIL | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 19.65 mm | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 2% | |
| Width | 4.55 mm |
Alternate Parts for LM1086CT-3.3
This table gives cross-reference parts and alternative options found for LM1086CT-3.3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM1086CT-3.3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM1086IT-3.3 | National Semiconductor Corporation | Check for Price | IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 1.5 V DROPOUT, PSFM3, TO-220, 3 PIN, Fixed Positive Single Output LDO Regulator | LM1086CT-3.3 vs LM1086IT-3.3 |
LM1086CT-3.3 Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LM1086CT-3.3 is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
-
The LM1086CT-3.3 is rated for a maximum output current of 1.5A, but it's not recommended for high-current applications. For high-current applications, consider using a more suitable regulator like the LM1084 or LM1117.
-
The output voltage tolerance of the LM1086CT-3.3 is typically ±2% of the nominal output voltage (3.3V). To calculate the tolerance, multiply the nominal output voltage by the tolerance percentage (e.g., 3.3V x 0.02 = ±0.066V).
-
The minimum input voltage required for the LM1086CT-3.3 to regulate properly is around 5.5V, but it's recommended to keep the input voltage at least 1V above the output voltage (3.3V) for optimal performance.
-
No, the LM1086CT-3.3 is a linear voltage regulator and is not suitable for use in switching regulator applications. It's designed to provide a stable output voltage in linear regulator configurations.
