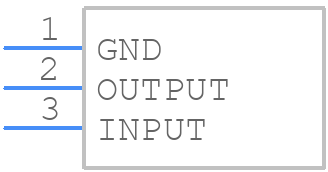

Part Symbol
-

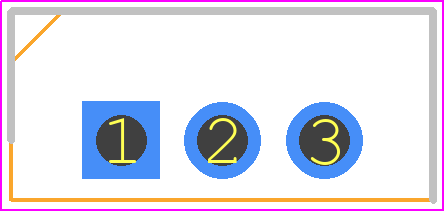

Footprint
-

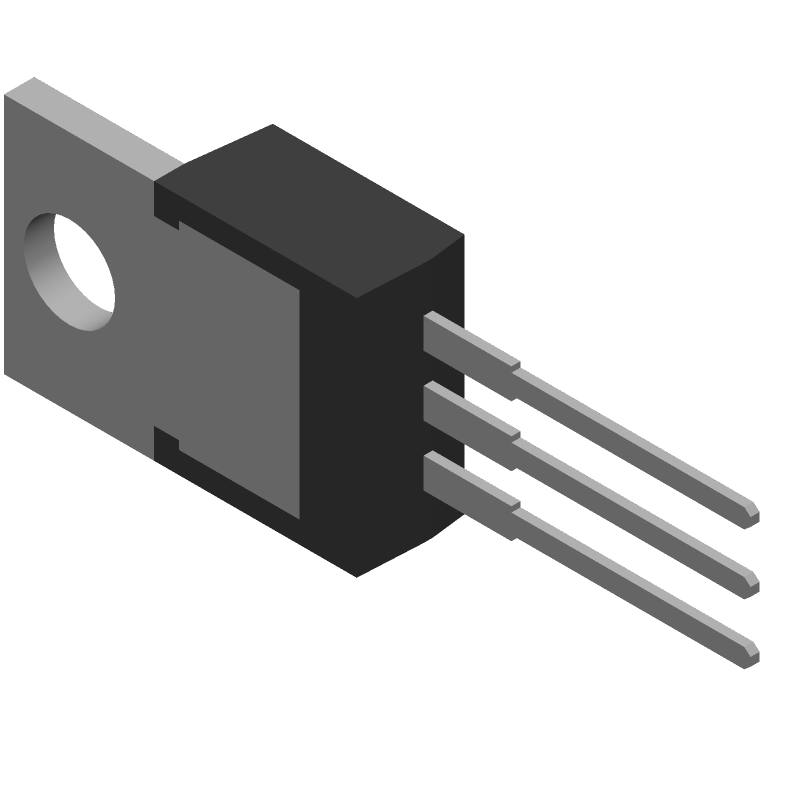

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM1086CT-3.3/NOPB by Texas Instruments
Results Overview of LM1086CT-3.3/NOPB by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
LM1086CT-3.3/NOPB Information
LM1086CT-3.3/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM1086CT-3.3/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31AH1907
|
Newark | Ic, Reg, Ldo, 3.3V, 1.5A, To-220, Output Type:Fixed, Input Voltage Min:2.6V, Input Voltage Max:27V, Fixed Output Voltage Nom.:3.3V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:1.5A, Dropout Rohs Compliant: Yes |Texas Instruments LM1086CT-3.3/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 308 |
|
$1.1400 / $1.6500 | Buy Now |
|
DISTI #
LM1086CT-3.3/NOPB-ND
|
DigiKey | IC REG LINEAR 3.3V 1.5A TO220-3 Min Qty: 1 Lead time: 6 Weeks Container: Tube |
1646 In Stock |
|
$1.0333 / $2.0700 | Buy Now |
|
DISTI #
926-LM1086CT-3.3NOPB
|
Mouser Electronics | LDO Voltage Regulators 1.5A LDO POS REG RoHS: Compliant | 1062 |
|
$0.9910 / $2.0700 | Buy Now |
|
DISTI #
LM1086CT-3.3/NOPB
|
TME | IC: voltage regulator, LDO,fixed, 3.3V, 1.5A, TO220-3, THT, tube Min Qty: 1 | 103 |
|
$1.2200 / $1.8900 | Buy Now |
Part Details for LM1086CT-3.3/NOPB
LM1086CT-3.3/NOPB CAD Models
LM1086CT-3.3/NOPB Part Data Attributes
|
|
LM1086CT-3.3/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM1086CT-3.3/NOPB
Texas Instruments
1.5-A, 29-V, linear voltage regulator 3-TO-220 0 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SFM | |
| Package Description | ROHS COMPLIANT, TO-220, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.5 V | |
| Dropout Voltage1-Nom | 1.3 V | |
| Input Voltage Absolute-Max | 27 V | |
| Input Voltage-Max | 29 V | |
| Input Voltage-Min | 4.5 V | |
| JESD-30 Code | R-XSFM-T3 | |
| JESD-609 Code | e3 | |
| Length | 14.986 mm | |
| Line Regulation-Max | 0.01% | |
| Load Regulation-Max | 0.025% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current1-Max | 1.5 A | |
| Output Voltage1-Max | 3.365 V | |
| Output Voltage1-Min | 3.235 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SFM | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Packing Method | TUBE | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 19.55 mm | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 2% | |
| Width | 10.16 mm |
Alternate Parts for LM1086CT-3.3/NOPB
This table gives cross-reference parts and alternative options found for LM1086CT-3.3/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM1086CT-3.3/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT1086CT-3.3 | Semtech Corporation | Check for Price | Fixed Positive LDO Regulator, 3.3V, 1.5V Dropout, PSFM3, TO-220, 3 PIN | LM1086CT-3.3/NOPB vs LT1086CT-3.3 |
LM1086CT-3.3/NOPB Frequently Asked Questions (FAQ)
-
The maximum input voltage is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
-
The LM1086CT-3.3/NOPB is rated for operation up to 125°C, but thermal derating is required above 85°C. Ensure proper heat sinking and thermal management to prevent overheating.
-
Use a high-quality output capacitor with a low ESR (Equivalent Series Resistance) and ensure the input capacitor is properly sized to prevent oscillations. Also, follow the recommended PCB layout guidelines to minimize noise and interference.
-
Yes, the LM1086CT-3.3/NOPB is suitable for battery-powered devices. However, consider the quiescent current (IQ) and shutdown current to minimize power consumption and extend battery life.
-
The minimum input voltage is 4.5V, but it's recommended to keep it above 5V for optimal performance and to ensure the output voltage remains stable.
