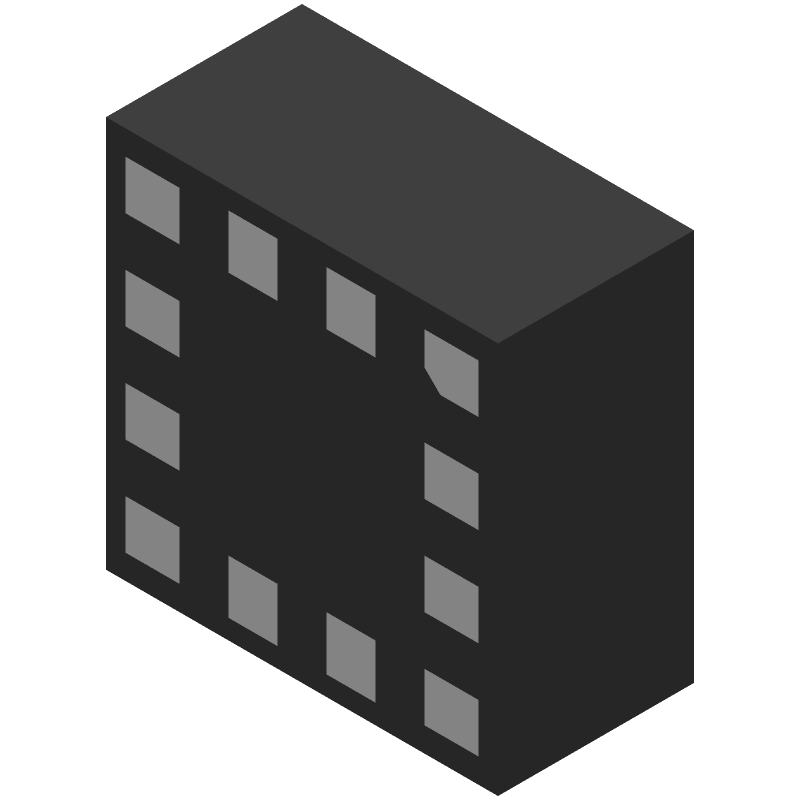

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LIS2DE12TR by STMicroelectronics
Results Overview of LIS2DE12TR by STMicroelectronics
- Distributor Offerings: (38 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LIS2DE12TR Information
LIS2DE12TR by STMicroelectronics is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for LIS2DE12TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AC7335
|
Newark | Consumer Mems |Stmicroelectronics LIS2DE12TR RoHS: Not Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 176000 |
|
$0.7750 | Buy Now |
|
DISTI #
56Y0708
|
Newark | Accelerometer |Stmicroelectronics LIS2DE12TR RoHS: Not Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
497-15997-1-ND
|
DigiKey | ACCEL 2-16G I2C/SPI 12LGA Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
25795 In Stock |
|
$0.7910 / $1.3800 | Buy Now |
|
DISTI #
LIS2DE12TR
|
Avnet Americas | MEMS Accelerometer, I2C/SPI, ? 2g, ? 4g, ? 8g, ? 16g, X, Y, Z, I2C, SPI, LGA, 12 Pins - Tape and Reel (Alt: LIS2DE12TR) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 16 Weeks, 0 Days Container: Reel | 176000 |
|
$0.6709 / $0.6849 | Buy Now |
|
DISTI #
LIS2DE12TR
|
Avnet Americas | MEMS Accelerometer, I2C/SPI, ? 2g, ? 4g, ? 8g, ? 16g, X, Y, Z, I2C, SPI, LGA, 12 Pins - Tape and Reel (Alt: LIS2DE12TR) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.6233 / $0.6625 | Buy Now |
|
DISTI #
511-LIS2DE12TR
|
Mouser Electronics | Accelerometers MEMS digital output motion sensor: ultra-low-power high-performance 3-axis "femt RoHS: Compliant | 21123 |
|
$0.7520 / $1.3300 | Buy Now |
|
DISTI #
V36:1790_13796566
|
Arrow Electronics | Accelerometer Triple ±2g/±4g/±8g/±16g 2.5V 12-Pin LGA T/R Min Qty: 8000 Package Multiple: 8000 Lead time: 16 Weeks Date Code: 2403 | Americas - 312000 |
|
$0.6835 | Buy Now |
|
DISTI #
E02:0323_08682276
|
Arrow Electronics | Accelerometer Triple ±2g/±4g/±8g/±16g 2.5V 12-Pin LGA T/R Min Qty: 8000 Package Multiple: 8000 Lead time: 16 Weeks Date Code: 2511 | Europe - 72000 |
|
$0.7908 | Buy Now |
|
DISTI #
E54:1762_09868018
|
Arrow Electronics | Accelerometer Triple ±2g/±4g/±8g/±16g 2.5V 12-Pin LGA T/R Min Qty: 8000 Package Multiple: 8000 Lead time: 16 Weeks Date Code: 2511 | Europe - 32000 |
|
$0.7000 | Buy Now |
|
DISTI #
V72:2272_13796566
|
Arrow Electronics | Accelerometer Triple ±2g/±4g/±8g/±16g 2.5V 12-Pin LGA T/R Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2208 Container: Cut Strips | Americas - 8267 |
|
$0.7070 / $1.1271 | Buy Now |
Part Details for LIS2DE12TR
LIS2DE12TR CAD Models
LIS2DE12TR Part Data Attributes
|
|
LIS2DE12TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LIS2DE12TR
STMicroelectronics
MEMS digital output motion sensor: ultra-low-power high-performance 3-axis "femto" accelerometer
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | 2 X 2 MM, 1 MM HEIGHT, GREEN, PLASTIC, LGA-12 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | S-PBGA-B12 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFLGA | |
| Package Equivalence Code | LCC12,.08SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 1.71 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | BUTT | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 2 mm |
LIS2DE12TR Frequently Asked Questions (FAQ)
-
The recommended power-on sequence is to apply VDDIO before VDD. This ensures that the internal voltage regulators are properly powered up.
-
The interrupt pins can be configured to trigger on specific events such as free-fall, wake-up, or tap detection by setting the corresponding bits in the INT_CFG register.
-
The self-test feature is used to verify the accelerometer's functionality. It applies a known stimulus to the sensor and checks the output. To use it, set the ST bit in the CTRL_REG3 register and read the output from the OUT_X, OUT_Y, and OUT_Z registers.
-
The acceleration values can be calculated by multiplying the raw sensor data by the sensitivity value (typically 0.061 mg/LSB) and dividing by the full-scale range (typically ±2g, ±4g, ±8g, or ±16g).
-
The high-pass filter removes gravity and low-frequency noise, while the low-pass filter removes high-frequency noise. Use the high-pass filter for applications that require gravity cancellation, and the low-pass filter for applications that require noise reduction.
