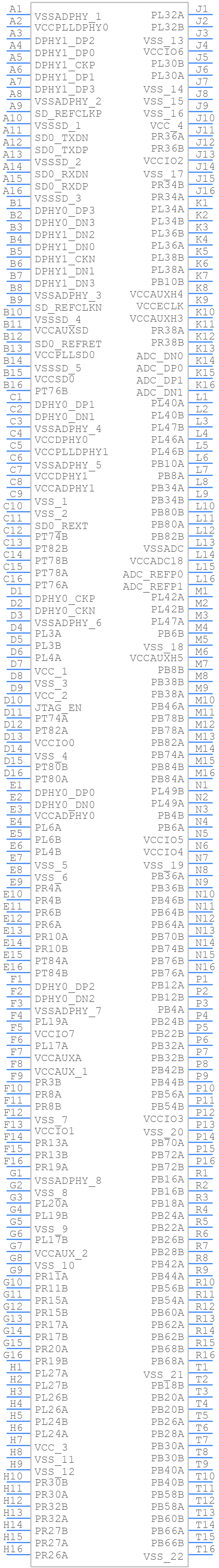

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LIFCL-40-7BG256A by Lattice Semiconductor Corporation
Results Overview of LIFCL-40-7BG256A by Lattice Semiconductor Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LIFCL-40-7BG256A Information
LIFCL-40-7BG256A by Lattice Semiconductor Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Price & Stock for LIFCL-40-7BG256A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55AJ1798
|
Newark | Lattice Crosslink -Nx Auto Grade (Aec-Q100) Embedded Vision Bridging & Processing Fpga With 2.5G Mipi D-Phy Rohs Compliant: Yes |Lattice Semiconductor LIFCL-40-7BG256A RoHS: Compliant Min Qty: 119 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$60.1300 | Buy Now |
|
DISTI #
220-LIFCL-40-7BG256A-ND
|
DigiKey | IC FPGA 2.5GMIPIDPHY Q100 256BGA Min Qty: 1 Lead time: 16 Weeks Container: Tray |
49 In Stock |
|
$57.4002 / $71.1500 | Buy Now |
|
DISTI #
842-LIFCL407BG256A
|
Mouser Electronics | FPGA - Field Programmable Gate Array Lattice CrossLink -NX Auto Grade (AEC-Q100) Embedded Vision Bridging & Processing FPGA with 2.5G MIPI D-PHY RoHS: Compliant | 195 |
|
$59.6700 / $71.1500 | Buy Now |
|
|
Flip Electronics | Stock | 189438 |
|
RFQ |
Part Details for LIFCL-40-7BG256A
LIFCL-40-7BG256A CAD Models
LIFCL-40-7BG256A Part Data Attributes
|
|
LIFCL-40-7BG256A
Lattice Semiconductor Corporation
Buy Now
Datasheet
|
Compare Parts:
LIFCL-40-7BG256A
Lattice Semiconductor Corporation
Field Programmable Gate Array, 39000-Cell, PBGA256,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LATTICE SEMICONDUCTOR CORP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Lattice Semiconductor | |
| JESD-30 Code | S-PBGA-B256 | |
| JESD-609 Code | e1 | |
| Length | 14 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of CLBs | 9750 | |
| Number of Inputs | 74 | |
| Number of Logic Cells | 39000 | |
| Number of Outputs | 74 | |
| Number of Terminals | 256 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA256,16X16,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY | |
| Seated Height-Max | 1.7 mm | |
| Supply Voltage-Max | 1.05 V | |
| Supply Voltage-Min | 0.95 V | |
| Supply Voltage-Nom | 1 V | |
| Surface Mount | YES | |
| Technology | FDSOI | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 14 mm |
Alternate Parts for LIFCL-40-7BG256A
This table gives cross-reference parts and alternative options found for LIFCL-40-7BG256A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LIFCL-40-7BG256A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LIFCL-40-7BG400I | Lattice Semiconductor Corporation | $59.4610 | Field Programmable Gate Array, | LIFCL-40-7BG256A vs LIFCL-40-7BG400I |
| LIFCL-40-7MG289I | Lattice Semiconductor Corporation | Check for Price | Field Programmable Gate Array, | LIFCL-40-7BG256A vs LIFCL-40-7MG289I |
LIFCL-40-7BG256A Frequently Asked Questions (FAQ)
-
Lattice Semiconductor provides a PCB layout guide and reference design files for the LIFCL-40-7BG256A, which can be found on their website. It's recommended to follow these guidelines to ensure optimal performance and signal integrity.
-
The LIFCL-40-7BG256A requires a specific power-up sequence to ensure proper operation. Lattice Semiconductor recommends using a power management IC (PMIC) or a discrete power supply design that meets the device's power requirements. A detailed power-up sequence and voltage regulation scheme can be found in the device's hardware development guide.
-
The LIFCL-40-7BG256A has a maximum junction temperature of 100°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow around the device. Lattice Semiconductor provides thermal management guidelines and recommendations in the device's datasheet and hardware development guide.
-
The LIFCL-40-7BG256A is a programmable FPGA device, and its configuration and programming require specialized software tools, such as Lattice Diamond or Lattice Radiant. These tools provide a development environment for designing, implementing, and testing digital circuits on the FPGA fabric. Lattice Semiconductor offers documentation, tutorials, and training resources to help engineers get started with programming the device.
-
Lattice Semiconductor offers a range of development boards and kits for the LIFCL-40-7BG256A, including the Lattice ECP5 Evaluation Board and the Lattice FPGA Development Kit. These boards provide a platform for evaluating and developing applications using the device. Additionally, third-party vendors may also offer development boards and kits compatible with the LIFCL-40-7BG256A.
