Programmable Logic / Field Programmable Gate Arrays / LFXP2-8E-5MN132C
Datasheets
LFXP2-8E-5MN132C by: Lattice Semiconductor Corporation

Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, LEAD FREE, CSBGA-132

Part Details for LFXP2-8E-5MN132C by Lattice Semiconductor Corporation

Results Overview of LFXP2-8E-5MN132C by Lattice Semiconductor Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Computing and Data Storage Electronic Manufacturing

LFXP2-8E-5MN132C Information

LFXP2-8E-5MN132C by Lattice Semiconductor Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for LFXP2-8E-5MN132C

Part # Distributor Description Stock Price Buy
DISTI # 55AJ1745
Newark Latticexp2 , 8.4K Luts, 1.2V Rohs Compliant: Yes |Lattice Semiconductor LFXP2-8E-5MN132C RoHS: Compliant Min Qty: 360 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 250 $28.4300
$28.4300 Buy Now
DISTI # 220-1789-ND
DigiKey IC FPGA 86 I/O 132CSBGA Min Qty: 1 Lead time: 20 Weeks Container: Tray 146
In Stock
  • 1 $32.4000
  • 25 $28.2500
  • 100 $26.1501
$26.1501 / $32.4000 Buy Now
DISTI # 842-LFXP2-8E-5MN132C
Mouser Electronics FPGA - Field Programmable Gate Array 8K LUTs 86I/O Inst- on DSP 1.2V -5 Spd RoHS: Compliant 52
  • 1 $32.4000
  • 25 $28.2500
  • 100 $26.1500
$26.1500 / $32.4000 Buy Now
DISTI # E54:1762_00299948
Arrow Electronics FPGA LatticeXP2 Family 8000 Cells 90nm Technology 1.2V 132-Pin CSBGA Tray RoHS: Compliant Min Qty: 360 Package Multiple: 360 Lead time: 20 Weeks Date Code: 2426 Europe - 6480
  • 360 $26.0900
  • 1,800 $25.8300
  • 2,520 $25.5700
  • 3,600 $25.3100
  • 9,000 $25.0600
  • 18,000 $24.8100
  • 45,000 $24.7700
$24.7700 / $26.0900 Buy Now
DISTI # 84746034
Verical FPGA LatticeXP2 Family 8000 Cells 90nm Technology 1.2V 132-Pin CSBGA Tray RoHS: Compliant Min Qty: 360 Package Multiple: 360 Date Code: 2426 Americas - 6480
  • 360 $26.0900
  • 1,800 $25.8300
  • 2,520 $25.5700
  • 3,600 $25.3100
  • 9,000 $25.0600
  • 18,000 $24.8100
  • 45,000 $24.7700
$24.7700 / $26.0900 Buy Now
Flip Electronics Stock 1035
RFQ

Part Details for LFXP2-8E-5MN132C

LFXP2-8E-5MN132C CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

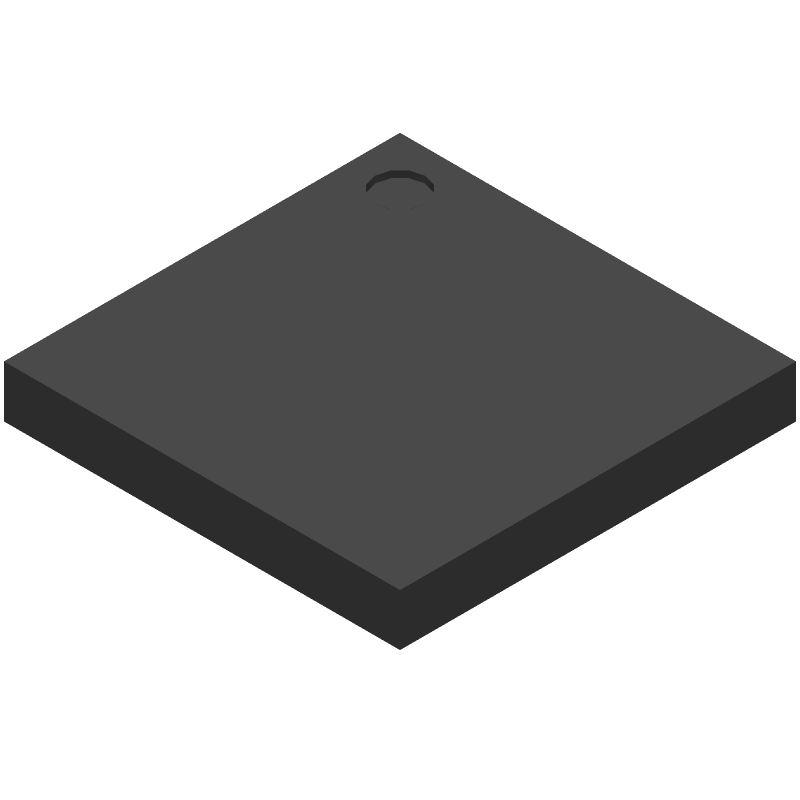

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LFXP2-8E-5MN132C Part Data Attributes

Parametric Data
LFXP2-8E-5MN132C Lattice Semiconductor Corporation
Buy Now Datasheet
Compare Parts:
LFXP2-8E-5MN132C Lattice Semiconductor Corporation Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, LEAD FREE, CSBGA-132
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer LATTICE SEMICONDUCTOR CORP
Part Package Code BGA
Package Description CSBGA-132
Pin Count 132
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Lattice Semiconductor
Clock Frequency-Max 435 MHz
Combinatorial Delay of a CLB-Max 0.494 ns
JESD-30 Code S-PBGA-B132
JESD-609 Code e1
Length 8 mm
Moisture Sensitivity Level 3
Number of CLBs 1000
Number of Inputs 86
Number of Logic Cells 8000
Number of Outputs 86
Number of Terminals 132
Operating Temperature-Max 85 °C
Operating Temperature-Min
Organization 1000 CLBS
Package Body Material PLASTIC/EPOXY
Package Code LFBGA
Package Equivalence Code BGA132,14X14,20
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 1.35 mm
Supply Voltage-Max 1.26 V
Supply Voltage-Min 1.14 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch 0.5 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 40
Width 8 mm

Alternate Parts for LFXP2-8E-5MN132C

This table gives cross-reference parts and alternative options found for LFXP2-8E-5MN132C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LFXP2-8E-5MN132C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LFXP2-8E-5MN132I Lattice Semiconductor Corporation $41.5000 Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, LEAD FREE, CSBGA-132 LFXP2-8E-5MN132C vs LFXP2-8E-5MN132I
LFXP2-8E-6MN132C Lattice Semiconductor Corporation $41.5000 Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, LEAD FREE, CSBGA-132 LFXP2-8E-5MN132C vs LFXP2-8E-6MN132C
LFXP2-8E-7MN132C Lattice Semiconductor Corporation $51.7450 Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, LEAD FREE, CSBGA-132 LFXP2-8E-5MN132C vs LFXP2-8E-7MN132C
LFXP2-8E-6MN132I Lattice Semiconductor Corporation $51.7450 Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, LEAD FREE, CSBGA-132 LFXP2-8E-5MN132C vs LFXP2-8E-6MN132I
LFXP2-8E-5M132C Lattice Semiconductor Corporation Check for Price Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, CSBGA-132 LFXP2-8E-5MN132C vs LFXP2-8E-5M132C
LFXP2-8E-5M132I Lattice Semiconductor Corporation Check for Price Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, CSBGA-132 LFXP2-8E-5MN132C vs LFXP2-8E-5M132I
LFXP2-8E-6M132I Lattice Semiconductor Corporation Check for Price Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, CSBGA-132 LFXP2-8E-5MN132C vs LFXP2-8E-6M132I
LFXP2-8E-7M132C Lattice Semiconductor Corporation Check for Price Field Programmable Gate Array, 435MHz, 8000-Cell, CMOS, PBGA132, 8 X 8 MM, CSBGA-132 LFXP2-8E-5MN132C vs LFXP2-8E-7M132C

LFXP2-8E-5MN132C Related Parts

LFXP2-8E-5MN132C Frequently Asked Questions (FAQ)

  • The LFXP2-8E-5MN132C has an operating temperature range of -40°C to 100°C.

  • Lattice recommends using a synchronizer or a FIFO to implement CDC in the LFXP2-8E-5MN132C. The specific implementation depends on the clock frequencies and the design requirements.

  • The power consumption of the LFXP2-8E-5MN132C depends on the device utilization, clock frequency, and voltage. According to the datasheet, the typical power consumption is around 100-200 mW at 1.2V and 50 MHz.

  • Yes, the LFXP2-8E-5MN132C supports high-speed interfaces like PCIe and SATA. However, the specific implementation and performance may vary depending on the design and the interface requirements.

  • Lattice provides a software tool called Lattice Diamond, which allows you to design, implement, and configure the FPGA for your specific application. You can also use third-party tools like VHDL or Verilog to design and implement your application.
