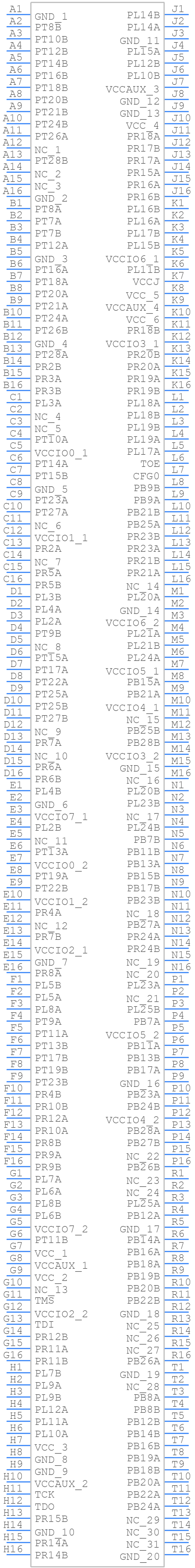

Part Symbol
-

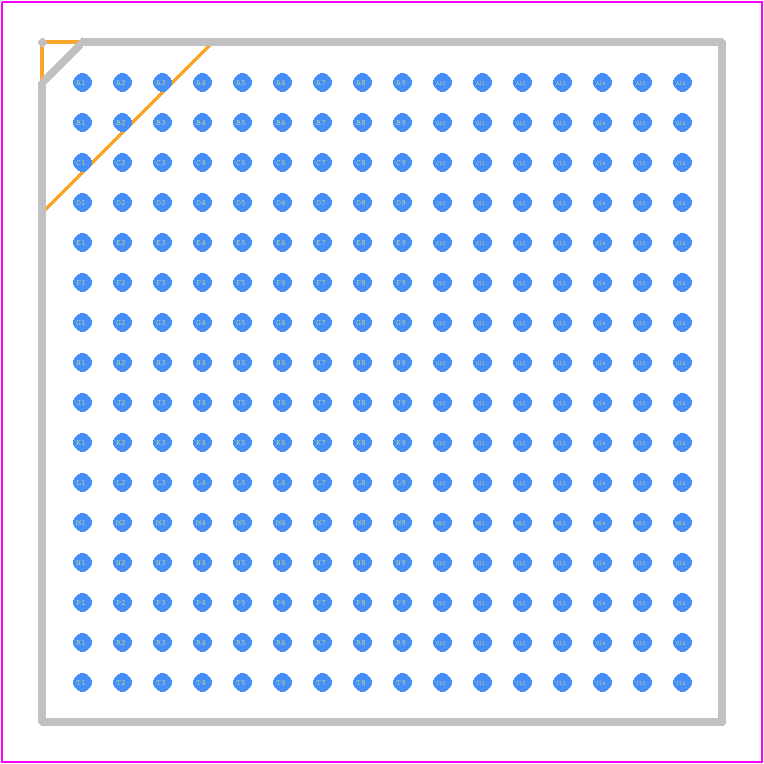

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Field Programmable Gate Array, 435MHz, 5000-Cell, CMOS, PBGA256, 17 X 17 MM, LEAD FREE, FTBGA-256
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LFXP2-5E-5FTN256C by Lattice Semiconductor Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
55AJ1723
|
Newark | Latticexp2 , 4.8K Luts, 1.2V Rohs Compliant: Yes |Lattice Semiconductor LFXP2-5E-5FTN256C RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$28.2200 / $29.6800 | Buy Now |
DISTI #
220-1247-ND
|
DigiKey | IC FPGA 172 I/O 256FTBGA Min Qty: 1 Lead time: 20 Weeks Container: Tray |
123 In Stock |
|
$26.0002 / $32.2000 | Buy Now |
DISTI #
842-LFXP25E5FTN256C
|
Mouser Electronics | FPGA - Field Programmable Gate Array 5K LUTs 172I/O Inst- on DSP 1.2V -5 Spd RoHS: Compliant | 222 |
|
$26.0000 / $32.2000 | Buy Now |
DISTI #
E54:1762_00178664
|
Arrow Electronics | FPGA LatticeXP2 Family 5000 Cells 90nm Technology 1.2V 256-Pin FTBGA RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 20 Weeks Date Code: 2422 | Europe - 810 |
|
$25.9400 | Buy Now |
DISTI #
82398590
|
Verical | FPGA LatticeXP2 Family 5000 Cells 90nm Technology 1.2V 256-Pin FTBGA RoHS: Compliant Min Qty: 90 Package Multiple: 90 Date Code: 2422 | Americas - 810 |
|
$25.9400 | Buy Now |
DISTI #
SMC-LFXP2-5E-5FTN256C
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 746 |
|
RFQ | |
|
Win Source Electronics | FPGA LatticeXP2 Family 5000 Cells 90nm Technology 1.2V 256-Pin FTBGA / IC FPGA 172 I/O 256FTBGA | 330 |
|
$32.3601 / $48.5400 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
LFXP2-5E-5FTN256C
Lattice Semiconductor Corporation
Buy Now
Datasheet
|
Compare Parts:
LFXP2-5E-5FTN256C
Lattice Semiconductor Corporation
Field Programmable Gate Array, 435MHz, 5000-Cell, CMOS, PBGA256, 17 X 17 MM, LEAD FREE, FTBGA-256
|
Pbfree Code | Yes | |
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | LATTICE SEMICONDUCTOR CORP | |
Part Package Code | BGA | |
Package Description | FBGA-256 | |
Pin Count | 256 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8542.39.00.01 | |
Samacsys Manufacturer | Lattice Semiconductor | |
Clock Frequency-Max | 435 MHz | |
Combinatorial Delay of a CLB-Max | 0.494 ns | |
JESD-30 Code | S-PBGA-B256 | |
JESD-609 Code | e1 | |
Length | 17 mm | |
Moisture Sensitivity Level | 3 | |
Number of CLBs | 625 | |
Number of Inputs | 172 | |
Number of Logic Cells | 5000 | |
Number of Outputs | 172 | |
Number of Terminals | 256 | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | ||
Organization | 625 CLBS | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | BGA | |
Package Equivalence Code | BGA256,16X16,40 | |
Package Shape | SQUARE | |
Package Style | GRID ARRAY | |
Peak Reflow Temperature (Cel) | 260 | |
Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY | |
Qualification Status | Not Qualified | |
Seated Height-Max | 2.1 mm | |
Supply Voltage-Max | 1.26 V | |
Supply Voltage-Min | 1.14 V | |
Supply Voltage-Nom | 1.2 V | |
Surface Mount | YES | |
Technology | CMOS | |
Temperature Grade | OTHER | |
Terminal Finish | TIN SILVER COPPER | |
Terminal Form | BALL | |
Terminal Pitch | 1 mm | |
Terminal Position | BOTTOM | |
Width | 17 mm |
This table gives cross-reference parts and alternative options found for LFXP2-5E-5FTN256C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LFXP2-5E-5FTN256C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Manufacturer | Composite Price | Description | Compare |
---|---|---|---|---|
LFXP2-5E-5FTN256I | Lattice Semiconductor Corporation | $39.9991 | Field Programmable Gate Array, 435MHz, 5000-Cell, CMOS, PBGA256, 17 X 17 MM, LEAD FREE, FTBGA-256 | LFXP2-5E-5FTN256C vs LFXP2-5E-5FTN256I |
The maximum operating frequency of the LFXP2-5E-5FTN256C FPGA is 350 MHz.
To implement a CDC in the LFXP2-5E-5FTN256C, use the built-in DLL (Delay-Locked Loop) or PLL (Phase-Locked Loop) to synchronize clocks across different domains. Additionally, use asynchronous FIFOs or gray-coded counters to transfer data between clock domains.
The power consumption of the LFXP2-5E-5FTN256C FPGA depends on the operating frequency, voltage, and usage. However, the typical power consumption is around 1.2W at 1.2V and 100 MHz.
Yes, the LFXP2-5E-5FTN256C FPGA is suitable for high-reliability applications due to its radiation-hardened design and compliance with various industry standards for aerospace, defense, and industrial applications.
Use Lattice's ispLEVER or Diamond software to configure the FPGA for a specific application. These tools provide a user-friendly interface for designing, implementing, and verifying digital circuits.
