Programmable Logic / Field Programmable Gate Arrays / LFE2M20SE-5FN256C
Datasheets
LFE2M20SE-5FN256C by:
Lattice Semiconductor Corporation

Field Programmable Gate Array, 311MHz, 20000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256

Part Details for LFE2M20SE-5FN256C by Lattice Semiconductor Corporation

Results Overview of LFE2M20SE-5FN256C by Lattice Semiconductor Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Computing and Data Storage

LFE2M20SE-5FN256C Information

LFE2M20SE-5FN256C by Lattice Semiconductor Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for LFE2M20SE-5FN256C

Part # Distributor Description Stock Price Buy
DISTI # 55AJ1229
Newark Latticeecp2M , S-Series, 20K Luts, 1.2V Rohs Compliant: Yes |Lattice Semiconductor LFE2M20SE-5FN256C RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 50 $69.1600
  • 100 $65.1800
$65.1800 / $69.1600 Buy Now
DISTI # 220-1210-ND
DigiKey IC FPGA 140 I/O 256FBGA Min Qty: 90 Lead time: 20 Weeks Container: Tray Temporarily Out of Stock
  • 90 $67.1501
$67.1501 Buy Now
DISTI # 842-LFE2M20SE5FN256C
Mouser Electronics FPGA - Field Programmable Gate Array 19K LUTs 140 I/O S-Ser SERDES DSP -5 RoHS: Compliant 0
  • 90 $64.6700
$64.6700 Order Now
Quest Components   4
  • 1 $79.4768
  • 4 $75.5030
$75.5030 / $79.4768 Buy Now
Flip Electronics Stock 149
RFQ

Part Details for LFE2M20SE-5FN256C

LFE2M20SE-5FN256C CAD Models

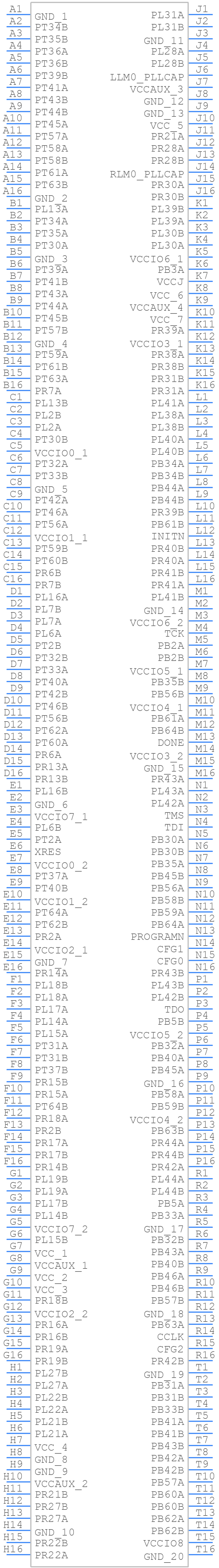

  • Part Symbol

    Part Symbol

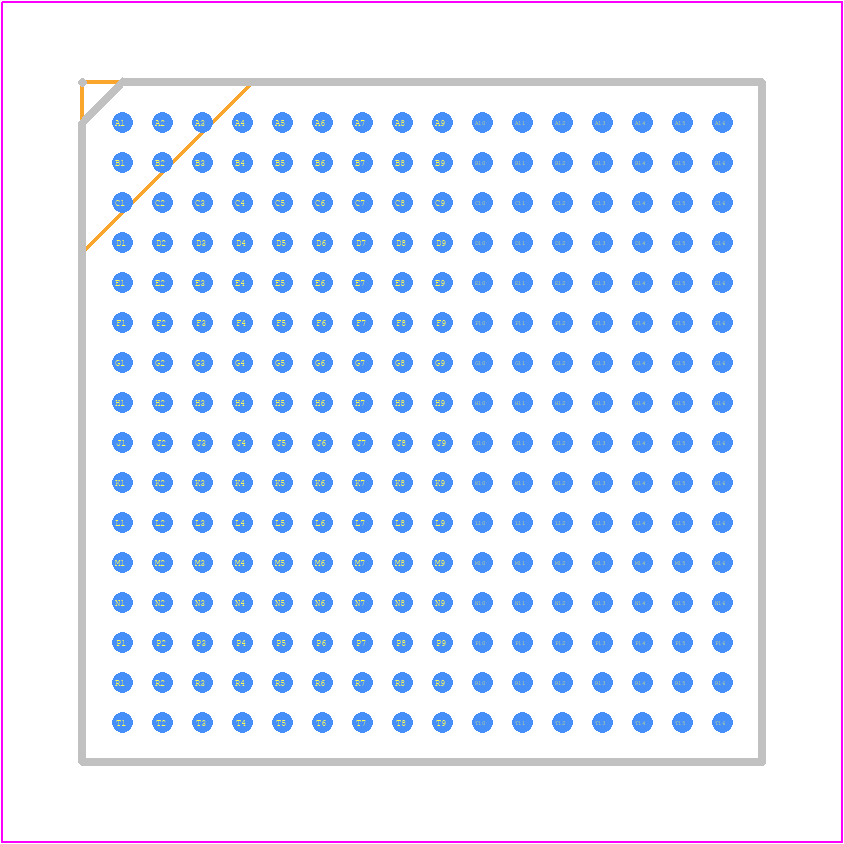

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LFE2M20SE-5FN256C Part Data Attributes

Parametric Data
LFE2M20SE-5FN256C Lattice Semiconductor Corporation
Buy Now Datasheet
Compare Parts:
LFE2M20SE-5FN256C Lattice Semiconductor Corporation Field Programmable Gate Array, 311MHz, 20000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer LATTICE SEMICONDUCTOR CORP
Part Package Code BGA
Package Description FPBGA-256
Pin Count 256
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Lattice Semiconductor
Clock Frequency-Max 311 MHz
Combinatorial Delay of a CLB-Max 0.358 ns
JESD-30 Code S-PBGA-B256
JESD-609 Code e1
Length 17 mm
Moisture Sensitivity Level 3
Number of CLBs 2375
Number of Inputs 140
Number of Logic Cells 20000
Number of Outputs 140
Number of Terminals 256
Operating Temperature-Max 85 °C
Operating Temperature-Min
Organization 6000 CLBS
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA256,16X16,40
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 250
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 2.1 mm
Supply Voltage-Max 1.26 V
Supply Voltage-Min 1.14 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Temperature Grade OTHER
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 40
Width 17 mm

Alternate Parts for LFE2M20SE-5FN256C

This table gives cross-reference parts and alternative options found for LFE2M20SE-5FN256C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LFE2M20SE-5FN256C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LFE2M20SE-6FN256I Lattice Semiconductor Corporation $105.5728 Field Programmable Gate Array, 357MHz, 19000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20SE-6FN256I
LFE2M20E-6FN256I Lattice Semiconductor Corporation $105.5728 Field Programmable Gate Array, 357MHz, 20000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20E-6FN256I
LFE2M20SE-5FN256I Lattice Semiconductor Corporation $84.3050 Field Programmable Gate Array, 311MHz, 19000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20SE-5FN256I
LFE2M20SE-6FN256C Lattice Semiconductor Corporation $84.3050 Field Programmable Gate Array, 357MHz, 20000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20SE-6FN256C
LFE2M20E-5FN256I Lattice Semiconductor Corporation $84.3050 Field Programmable Gate Array, 311MHz, 20000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20E-5FN256I
LFE2M20E-6FN256C Lattice Semiconductor Corporation $84.3050 Field Programmable Gate Array, 357MHz, 20000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20E-6FN256C
LFE2M20SE-5F256I Lattice Semiconductor Corporation Check for Price Field Programmable Gate Array, 311MHz, 20000-Cell, PBGA256, 17 X 17 MM, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20SE-5F256I
LFE2M20SE-5F256C Lattice Semiconductor Corporation Check for Price Field Programmable Gate Array, 311MHz, 20000-Cell, PBGA256, 17 X 17 MM, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20SE-5F256C
LFE2M20E-5F256C Lattice Semiconductor Corporation Check for Price Field Programmable Gate Array, 311MHz, 20000-Cell, PBGA256, 17 X 17 MM, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20E-5F256C
LFE2M20E-6F256C Lattice Semiconductor Corporation Check for Price Field Programmable Gate Array, 357MHz, 20000-Cell, PBGA256, 17 X 17 MM, FPBGA-256 LFE2M20SE-5FN256C vs LFE2M20E-6F256C

LFE2M20SE-5FN256C Related Parts

LFE2M20SE-5FN256C Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the LFE2M20SE-5FN256C is 500 MHz.

  • The LFE2M20SE-5FN256C has a typical power consumption of 1.2W at 500 MHz, and a maximum power consumption of 2.5W.

  • The LFE2M20SE-5FN256C can be programmed using JTAG, ISP, or SPI interfaces.

  • Yes, the LFE2M20SE-5FN256C is 5G compliant and meets the requirements for 5G wireless communication systems.

  • The LFE2M20SE-5FN256C has an operating temperature range of -40°C to 100°C, and a storage temperature range of -55°C to 150°C.
