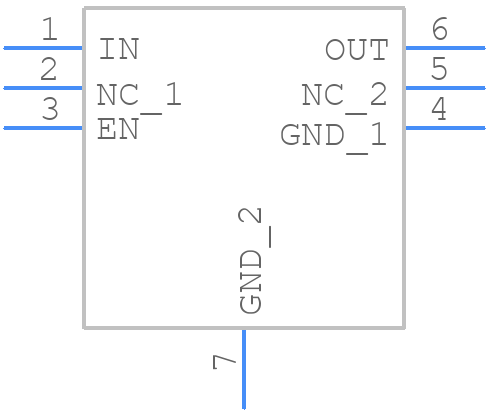

Part Symbol
-
Footprint
-

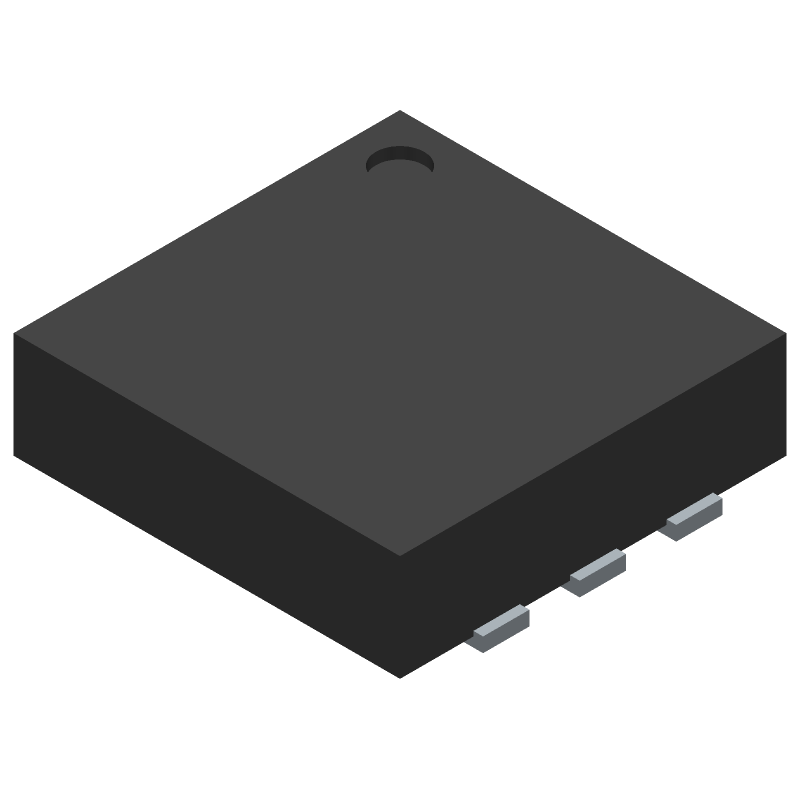

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LDLN015PU18R by STMicroelectronics
Results Overview of LDLN015PU18R by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
LDLN015PU18R Information
LDLN015PU18R by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LDLN015PU18R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2460822RL
|
Farnell | LDO, FIXED, 1.8V, 0.15A, DFN-6 RoHS: Compliant Min Qty: 100 Lead time: 39 Weeks, 1 Days Container: Reel | 122 |
|
$1.2213 | Buy Now |
|
DISTI #
2460822
|
Farnell | LDO, FIXED, 1.8V, 0.15A, DFN-6 RoHS: Compliant Min Qty: 1 Lead time: 39 Weeks, 1 Days Container: Cut Tape | 122 |
|
$1.2213 / $1.9746 | Buy Now |
|
DISTI #
497-14026-1-ND
|
DigiKey | IC REG LINEAR 1.8V 150MA 6-DFN Min Qty: 1 Lead time: 99 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
937 In Stock |
|
$0.9468 / $1.7600 | Buy Now |
|
|
STMicroelectronics | 150 mA - ultra low noise - high PSRR linear voltage regulator IC COO: Malaysia RoHS: Compliant Min Qty: 1 | 424 |
|
$0.9300 / $1.7300 | Buy Now |
|
|
Rochester Electronics | LDLN015 - 150mA ultra low noise/high PSRR VR IC RoHS: Compliant Status: Obsolete Min Qty: 1 | 68995 |
|
$0.7207 / $1.1600 | Buy Now |
|
DISTI #
LDLN015PU18R
|
TME | IC: voltage regulator, LDO,linear,fixed, 1.8V, 0.15A, DFN6, SMD Min Qty: 1 | 0 |
|
$1.0200 / $1.5200 | RFQ |
Part Details for LDLN015PU18R
LDLN015PU18R CAD Models
LDLN015PU18R Part Data Attributes
|
|
LDLN015PU18R
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LDLN015PU18R
STMicroelectronics
150 mA - ultra low noise - high PSRR linear voltage regulator IC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DFN | |
| Package Description | ROHS COMPLIANT, DFN-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustability | FIXED | |
| Input Voltage Absolute-Max | 7 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.1 V | |
| JESD-30 Code | R-PDSO-N6 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 1.836 V | |
| Output Voltage1-Min | 1.764 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC6,.08,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 0.6 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 2% | |
| Width | 2 mm |
Alternate Parts for LDLN015PU18R
This table gives cross-reference parts and alternative options found for LDLN015PU18R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LDLN015PU18R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| XC6504A1819R-G | Torex Semiconductor LTD | $0.2703 | Fixed Positive Standard Regulator, 1.8VCMOS, PDSO4, USPQ-4 | LDLN015PU18R vs XC6504A1819R-G |
| LP5907QMFX-1.8Q1 | Texas Instruments | $0.2732 | Automotive, 250-mA, low-noise, high-PSRR, ultra-low-dropout voltage regulator with low IQ and enable 5-SOT-23 -40 to 125 | LDLN015PU18R vs LP5907QMFX-1.8Q1 |
| ADP7156ARDZ-1.8-R7 | Analog Devices Inc | $5.4774 | 1.2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | LDLN015PU18R vs ADP7156ARDZ-1.8-R7 |
| ADP7156ACPZ-1.8-R7 | Analog Devices Inc | $5.5262 | 1.2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | LDLN015PU18R vs ADP7156ACPZ-1.8-R7 |
| ADP7158ARDZ-1.8-R7 | Analog Devices Inc | $6.0807 | 2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | LDLN015PU18R vs ADP7158ARDZ-1.8-R7 |
| ADP7158ACPZ-1.8-R7 | Analog Devices Inc | $6.6603 | 2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator | LDLN015PU18R vs ADP7158ACPZ-1.8-R7 |
| MM3141JR | Mitsumi Electric Co Ltd | Check for Price | Fixed Positive Standard Regulator, 1.8VCMOS, PDSO6, PLP-6 | LDLN015PU18R vs MM3141JR |
| MM3141HR | Mitsumi Electric Co Ltd | Check for Price | Fixed Positive Standard Regulator, 1.7VCMOS, PDSO6, PLP-6 | LDLN015PU18R vs MM3141HR |
| XC6504A1719R-G | Torex Semiconductor LTD | Check for Price | Fixed Positive Standard Regulator, 1.7VCMOS, PDSO4, USPQ-4 | LDLN015PU18R vs XC6504A1719R-G |
| MM3141GR | Mitsumi Electric Co Ltd | Check for Price | Fixed Positive Standard Regulator, 1.6VCMOS, PDSO6, PLP-6 | LDLN015PU18R vs MM3141GR |
LDLN015PU18R Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for LDLN015PU18R is 1.8V to 5.5V.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF and a maximum ESR of 1 ohm.
-
The maximum output current that LDLN015PU18R can provide is 150mA.
-
The thermal shutdown feature is activated when the junction temperature exceeds 150°C. To handle this, ensure proper heat sinking and thermal management in your design.
-
Yes, LDLN015PU18R is rated for operation up to 125°C. However, ensure that you follow the recommended operating conditions and thermal management guidelines.
