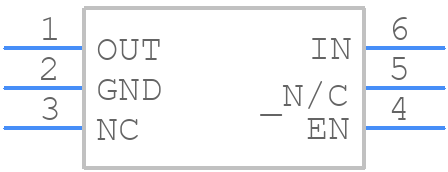

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LDK120PU08R by STMicroelectronics
Results Overview of LDK120PU08R by STMicroelectronics
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LDK120PU08R Information
LDK120PU08R by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LDK120PU08R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-14678-1-ND
|
DigiKey | IC REG LINEAR 0.8V 200MA 6-DFN Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1590 / $0.1720 | Buy Now |
|
DISTI #
LDK120PU08R
|
Avnet Americas | LDO Regulator Pos 0.8V 0.2A 6-Pin DFN T/R - Tape and Reel (Alt: LDK120PU08R) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.1413 / $0.1502 | Buy Now |
|
DISTI #
511-LDK120PU08R
|
Mouser Electronics | LDO Voltage Regulators 200 mA low quiescent current very low noise LDO RoHS: Compliant | 3000 |
|
$0.1540 / $0.5800 | Buy Now |
|
DISTI #
V72:2272_17623228
|
Arrow Electronics | LDO Regulator Pos 0.8V 0.2A 6-Pin DFN T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 40 Weeks Container: Cut Strips | Americas - 2950 |
|
$0.2079 | Buy Now |
|
DISTI #
70521017
|
RS | LDK120PU08R, LDO Voltage Regulator, 200mA, 0.8 V +/-3%, 1.9to5.5 Vin, 6-Pin DFN Min Qty: 30 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2760 / $0.3990 | RFQ |
|
|
STMicroelectronics | 200 mA low quiescent current very low noise LDO RoHS: Compliant Min Qty: 1 | 3000 |
|
$0.2200 / $0.4100 | Buy Now |
|
|
Future Electronics | LDK120 Series 200 mA 0.8 V Fixed Low Noise VLDO Voltage Regulator - DFN-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks Container: Reel | 3000Reel |
|
$0.1430 / $0.1490 | Buy Now |
|
|
Future Electronics | LDK120 Series 200 mA 0.8 V Fixed Low Noise VLDO Voltage Regulator - DFN-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$0.1430 / $0.1490 | Buy Now |
|
DISTI #
88966789
|
Verical | LDO Regulator Pos 0.8V 0.2A 6-Pin DFN T/R RoHS: Compliant Min Qty: 275 Package Multiple: 1 | Americas - 2950 |
|
$0.2079 | Buy Now |
|
|
Bristol Electronics | 3000 |
|
RFQ |
Part Details for LDK120PU08R
LDK120PU08R CAD Models
LDK120PU08R Part Data Attributes
|
|
LDK120PU08R
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LDK120PU08R
STMicroelectronics
200 mA low quiescent current very low noise LDO
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | DFN-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1 V | |
| Input Voltage Absolute-Max | 6 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 1.9 V | |
| JESD-30 Code | R-PDSO-N6 | |
| Length | 1.3 mm | |
| Load Regulation-Max | 0.009552% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 0.824 V | |
| Output Voltage1-Min | 0.776 V | |
| Output Voltage1-Nom | 0.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC6,.05,16 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.5 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 3% | |
| Width | 1.2 mm |
