Power Circuits / Linear Regulator ICs / LD57100J105R
Datasheets
LD57100J105R by: STMicroelectronics

1 A ultra low-dropout LDO with bias

Part Details for LD57100J105R by STMicroelectronics

Results Overview of LD57100J105R by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

LD57100J105R Information

LD57100J105R by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LD57100J105R

Part # Distributor Description Stock Price Buy
DISTI # 89AH1039
Newark Ldo, Fixed, 105V, 1A, -40 To 85Deg C Rohs Compliant: Yes |Stmicroelectronics LD57100J105R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 4995
  • 1 $0.5600
  • 10 $0.3980
  • 25 $0.3560
  • 50 $0.3330
  • 100 $0.3100
  • 250 $0.2880
  • 500 $0.2740
  • 1,000 $0.2640
$0.2640 / $0.5600 Buy Now
DISTI # 497-LD57100J105RCT-ND
DigiKey IC REG LIN 1.05V 1A 6-FLIPCHIP Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 2966
In Stock
  • 1 $0.5600
  • 10 $0.3980
  • 25 $0.3560
  • 100 $0.3100
  • 250 $0.2881
  • 500 $0.2749
  • 1,000 $0.2640
  • 2,500 $0.2525
  • 5,000 $0.2337
$0.2337 / $0.5600 Buy Now
DISTI # LD57100J105R
Avnet Americas LDO Regulator Positive 1.05V 1A 6-Pin Flip Chip T/R - Tape and Reel (Alt: LD57100J105R) RoHS: Not Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 18 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.2105
  • 10,000 $0.2092
  • 20,000 $0.2053
  • 30,000 $0.2016
  • 40,000 $0.1980
$0.1980 / $0.2105 Buy Now
DISTI # 511-LD57100J105R
Mouser Electronics LDO Voltage Regulators 1 A ultra low-dropout LDO bias RoHS: Compliant 2934
  • 1 $0.5600
  • 10 $0.3980
  • 25 $0.3560
  • 100 $0.3100
  • 250 $0.2750
  • 1,000 $0.2640
  • 2,500 $0.2340
  • 5,000 $0.2340
  • 10,000 $0.2330
$0.2330 / $0.5600 Buy Now
STMicroelectronics 1 A ultra low-dropout LDO with bias RoHS: Compliant Min Qty: 1 2934
  • 1 $0.5500
  • 10 $0.3900
  • 25 $0.3500
  • 100 $0.3000
  • 250 $0.2700
$0.2700 / $0.5500 Buy Now
Future Electronics 1A Ultra low dropout LDO with Bias RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Container: Cut Tape/Mini-Reel 500
Cut Tape/Mini-Reel
  • 1 $0.2400
  • 20 $0.2250
  • 100 $0.2200
  • 500 $0.2100
  • 2,500 $0.2000
$0.2000 / $0.2400 Buy Now
Rochester Electronics LD57100 - 1A Very Low Dropout Bias LDO RoHS: Compliant Status: Active Min Qty: 1 60446
  • 100 $0.3381
  • 500 $0.3043
  • 1,000 $0.2806
  • 10,000 $0.2502
  • 100,000 $0.2096
$0.2096 / $0.3381 Buy Now
Future Electronics 1A Ultra low dropout LDO with Bias Min Qty: 1 Package Multiple: 1 500
null
  • 1 $0.2400
  • 20 $0.2250
  • 100 $0.2200
  • 500 $0.2100
  • 2,500 $0.2000
$0.2000 / $0.2400 Buy Now
DISTI # LD57100J105R
Avnet Silica LDO Regulator Positive 105V 1A 6Pin Flip Chip TR (Alt: LD57100J105R) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Silica - 5000
Buy Now
LCSC 1A Fixed 1.05V Positive electrode 5.5V FlipChip-6(1.2x0.8) Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS 34
  • 1 $1.1014
  • 10 $0.9249
  • 30 $0.8283
  • 100 $0.7197
  • 500 $0.6412
  • 1,000 $0.6186
$0.6186 / $1.1014 Buy Now

Part Details for LD57100J105R

LD57100J105R CAD Models

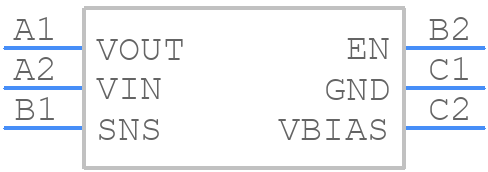

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

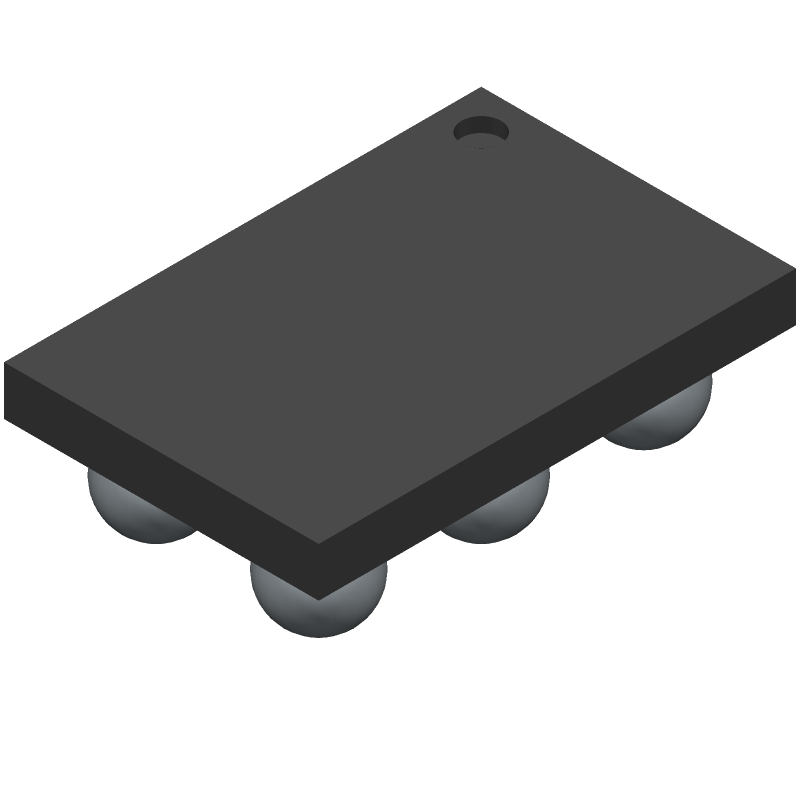

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LD57100J105R Part Data Attributes

Parametric Data
LD57100J105R STMicroelectronics
Buy Now Datasheet
Compare Parts:
LD57100J105R STMicroelectronics 1 A ultra low-dropout LDO with bias
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description FLIP CHIP-6
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 18 Weeks
Date Of Intro 2019-11-05
Samacsys Manufacturer STMicroelectronics
Adjustability FIXED
Dropout Voltage1-Max 0.08 V
Dropout Voltage1-Nom 0.04 V
Input Voltage Absolute-Max 7 V
Input Voltage-Max 5.5 V
Input Voltage-Min 1.13 V
JESD-30 Code R-PBGA-B6
Length 1.175 mm
Line Regulation-Max 0.0038325%
Load Regulation-Max 0.002%
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 1 A
Output Voltage1-Max 1.0605 V
Output Voltage1-Min 1.0395 V
Output Voltage1-Nom 1.05 V
Package Body Material PLASTIC/EPOXY
Package Code VFBGA
Package Equivalence Code BGA6,2X3,16
Package Shape RECTANGULAR
Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Packing Method TR
Peak Reflow Temperature (Cel) NOT SPECIFIED
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 0.361 mm
Surface Mount YES
Terminal Form BALL
Terminal Pitch 0.4 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Voltage Tolerance-Max 1%
Width 0.775 mm
