Power Circuits / Linear Regulator ICs / LD1117AS12TR
Datasheets
LD1117AS12TR by:

Low drop fixed and adjustable positive voltage regulators

Part Details for LD1117AS12TR by STMicroelectronics

Results Overview of LD1117AS12TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LD1117AS12TR Information

LD1117AS12TR by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LD1117AS12TR

Part # Distributor Description Stock Price Buy
DISTI # 69AH0578
Newark Ldo, Fixed, 1.2V, 1.2A, 0 To 125Deg C Rohs Compliant: Yes |Stmicroelectronics LD1117AS12TR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 791
  • 1 $0.6400
  • 10 $0.5420
  • 25 $0.5020
  • 50 $0.4230
  • 100 $0.3530
$0.3530 / $0.6400 Buy Now
DISTI # 45Y5359
Newark Ldo Vlt Reg, 1.2V, 1.2A, Sot-223-3, Output Type:Fixed, Input Voltage Min:-, Input Voltage Max:10V, Fixed Output Voltage Nom.:1.2V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:1.2A, Dropout Voltagerohs Compliant: Yes |Stmicroelectronics LD1117AS12TR RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 2,500 $0.2820
$0.2820 Buy Now
DISTI # 497-6445-1-ND
DigiKey IC REG LINEAR 1.2V 1A SOT-223 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 54005
In Stock
  • 1 $0.6800
  • 10 $0.4820
  • 25 $0.4328
  • 100 $0.3783
  • 250 $0.3524
  • 500 $0.3367
  • 1,000 $0.3238
  • 2,500 $0.2705
$0.2705 / $0.6800 Buy Now
DISTI # LD1117AS12TR
Avnet Americas LDO Regulator Pos 1.2V 1.2A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: LD1117AS12TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel 75000
  • 2,500 $0.1080
$0.1080 Buy Now
DISTI # LD1117AS12TR
Avnet Americas LDO Regulator Pos 1.2V 1.2A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: LD1117AS12TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 111 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.1227
  • 5,000 $0.1204
  • 10,000 $0.1186
  • 15,000 $0.1167
  • 20,000 $0.1149
$0.1149 / $0.1227 Buy Now
DISTI # 511-LD1117AS12TR
Mouser Electronics LDO Voltage Regulators LOW DROP FIXED REG RoHS: Compliant 11726
  • 1 $0.6800
  • 10 $0.4750
  • 25 $0.4270
  • 100 $0.3700
  • 250 $0.3370
  • 1,000 $0.3240
  • 2,500 $0.2700
$0.2700 / $0.6800 Buy Now
DISTI # V36:1790_06552694
Arrow Electronics LDO Regulator Pos 1.2V 1.2A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks Date Code: 2407 Americas - 10000
  • 2,500 $0.2640
$0.2640 Buy Now
DISTI # E02:0323_00210449
Arrow Electronics LDO Regulator Pos 1.2V 1.2A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks Date Code: 2508 Europe - 7500
  • 2,500 $0.3049
$0.3049 Buy Now
STMicroelectronics Low drop fixed and adjustable positive voltage regulators RoHS: Compliant Min Qty: 1 11679
  • 1 $0.6600
  • 10 $0.4700
  • 25 $0.4200
  • 100 $0.3600
  • 250 $0.3300
$0.3300 / $0.6600 Buy Now
Future Electronics LD1117 Series 1 A 1.2 V Fixed Output Positive Voltage LDO Regulator - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks Container: Reel 12500
Reel
  • 2,500 $0.2700
  • 7,500 $0.2650
  • 12,500 $0.2600
$0.2600 / $0.2700 Buy Now
DISTI # 86323066
Verical LDO Regulator Pos 1.2V 1.2A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2407 Americas - 10000
  • 2,500 $0.2640
$0.2640 Buy Now
DISTI # 19613548
Verical LDO Regulator Pos 1.2V 1.2A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Americas - 7500
  • 2,500 $0.2699
$0.2699 Buy Now
DISTI # 30608806
Verical LDO Regulator Pos 1.2V 1.2A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 93 Package Multiple: 1 Americas - 815
  • 93 $0.6250
  • 100 $0.4370
  • 200 $0.3920
  • 500 $0.3400
$0.3400 / $0.6250 Buy Now
Quest Components FIXED POSITIVE LDO REGULATOR, 1.2V, 1.3V DROPOUT, BIPOLAR, PDSO4 2690
  • 1 $1.2000
  • 334 $0.4800
  • 1,668 $0.4200
$0.4200 / $1.2000 Buy Now
Quest Components FIXED POSITIVE LDO REGULATOR, 1.2V, 1.3V DROPOUT, BIPOLAR, PDSO4 1575
  • 1 $1.2000
  • 84 $0.6000
  • 334 $0.4800
$0.4800 / $1.2000 Buy Now
Future Electronics LD1117 Series 1 A 1.2 V Fixed Output Positive Voltage LDO Regulator - SOT-223 Min Qty: 2500 Package Multiple: 2500 12500
null
  • 2,500 $0.2700
  • 7,500 $0.2650
  • 12,500 $0.2600
$0.2600 / $0.2700 Buy Now
DISTI # LD1117AS12TR
TME IC: voltage regulator, LDO,linear,fixed, 1.2V, 1A, SOT223, SMD Min Qty: 1 0
  • 1 $0.5370
  • 50 $0.3750
  • 100 $0.3210
  • 250 $0.3040
  • 500 $0.2750
  • 600 $0.2680
  • 650 $0.2660
  • 1,000 $0.2450
  • 2,500 $0.2440
$0.2440 / $0.5370 RFQ
DISTI # LD1117AS12TR
IBS Electronics LD1117AS12TR by ST MICROELECTRONICS is a low-dropout linear regulator with a 1.2V fixed output, 800mA current capability, and 1V dropout voltage, ideal for power management in various applications. Min Qty: 2500 Package Multiple: 1 12500
  • 2,500 $0.3510
  • 5,000 $0.3510
  • 7,500 $0.3445
  • 10,000 $0.3445
  • 12,500 $0.3380
$0.3380 / $0.3510 Buy Now
DISTI # LD1117AS12TR
Avnet Silica LDO Regulator Pos 12V 12A 4Pin3Tab SOT223 TR (Alt: LD1117AS12TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Silica - 65000
Buy Now
DISTI # LD1117AS12TR
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 815
  • 5 $0.6250
  • 10 $0.4370
  • 50 $0.3920
  • 100 $0.3400
  • 200 $0.3250
  • 500 $0.3090
  • 1,000 $0.2970
  • 2,500 $0.2540
$0.2540 / $0.6250 Buy Now
Chip Stock   16909
RFQ
DISTI # LD1117AS12TR
EBV Elektronik LDO Regulator Pos 12V 12A 4Pin3Tab SOT223 TR (Alt: LD1117AS12TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days EBV - 5000
Buy Now
LCSC 80dB(120Hz) 1A Fixed 1.2V Positive electrode 15V SOT-223 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS 1405
  • 5 $0.3503
  • 50 $0.2760
  • 150 $0.2441
  • 500 $0.2043
  • 2,500 $0.1866
  • 5,000 $0.1760
$0.1760 / $0.3503 Buy Now
Vyrian Regulators 13827
RFQ

Part Details for LD1117AS12TR

LD1117AS12TR CAD Models

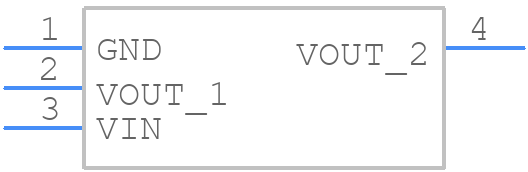

  • Part Symbol

    Part Symbol

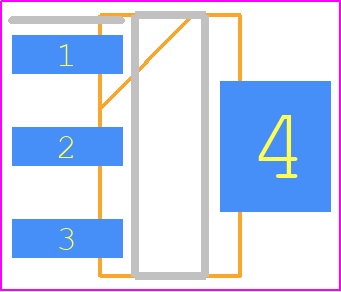

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LD1117AS12TR Part Data Attributes

Parametric Data
LD1117AS12TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
LD1117AS12TR STMicroelectronics Low drop fixed and adjustable positive voltage regulators
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOT-223
Package Description ROHS COMPLIANT, SOT-223, 4 PIN
Pin Count 4
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 12 Weeks
Samacsys Manufacturer STMicroelectronics
Adjustability FIXED
Dropout Voltage1-Max 1.3 V
Dropout Voltage1-Nom 1.15 V
Input Voltage Absolute-Max 10 V
Input Voltage-Max 10 V
Input Voltage-Min 2.75 V
JESD-30 Code R-PDSO-G4
JESD-609 Code e3
Length 6.5 mm
Line Regulation-Max 0.006%
Load Regulation-Max 0.01%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 4
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min
Output Current1-Max 1 A
Output Voltage1-Max 1.248 V
Output Voltage1-Min 1.152 V
Output Voltage1-Nom 1.2 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOT-223
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 250
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.9 mm
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 2.3 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Voltage Tolerance-Max 6.25%
Width 3.5 mm

Alternate Parts for LD1117AS12TR

This table gives cross-reference parts and alternative options found for LD1117AS12TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LD1117AS12TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NCP565ST12T3G onsemi $0.5961 LDO Regulator, 1.5 A, High PSRR, with Fast Transient Resoponse Vout: 1.2 V, SOT-223 (TO-261) 4 LEAD, 4000-REEL LD1117AS12TR vs NCP565ST12T3G

LD1117AS12TR Related Parts

LD1117AS12TR Frequently Asked Questions (FAQ)

  • The maximum input voltage is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.

  • To ensure stability, a minimum output capacitance of 10uF is recommended, and the ESR (Equivalent Series Resistance) should be between 0.3Ω and 10Ω.

  • The dropout voltage is typically around 1.2V, which means the input voltage should be at least 1.2V higher than the output voltage for proper regulation.

  • The LD1117AS12TR is rated for operation up to 125°C, but the junction temperature should be kept below 150°C to ensure reliability and prevent thermal shutdown.

  • Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
