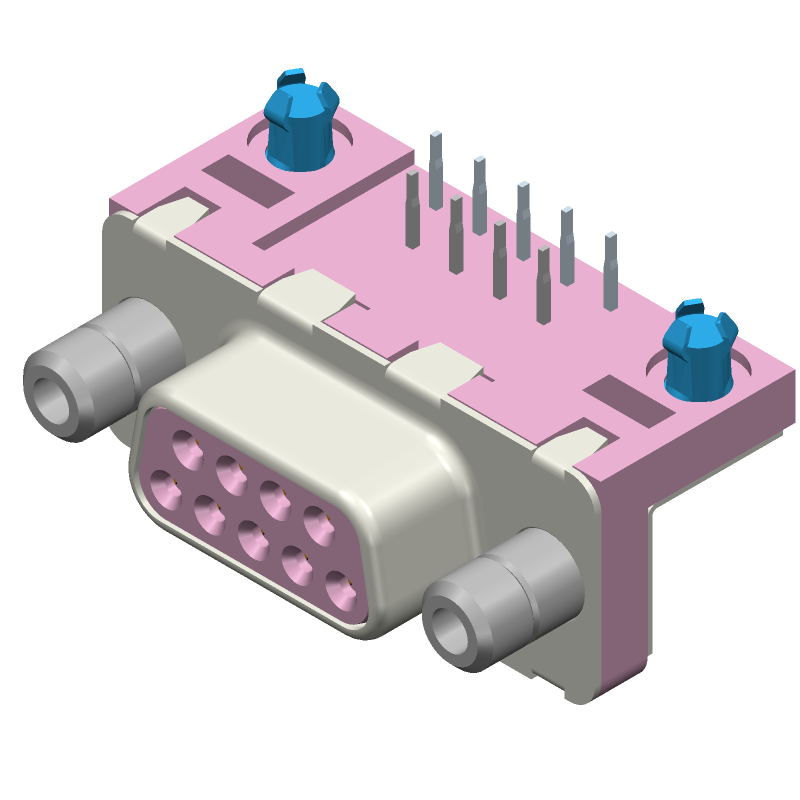

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LD09S33E4GV00LF by Amphenol Communications Solutions
Results Overview of LD09S33E4GV00LF by Amphenol Communications Solutions
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
LD09S33E4GV00LF Information
LD09S33E4GV00LF by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LD09S33E4GV00LF | Amphenol Communications Solutions | D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder US standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness |
Price & Stock for LD09S33E4GV00LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79X7591
|
Newark | D-Sub Conn, Rcpt, R/A, 9Pos, Th, D Sub Connector Type:Standard, Gender:Receptacle, Product Range:Fci Delta-D Ld Series, No. Of Contacts:9Contacts, D Sub Shell Size:De, Contact Termination Type:Solder, Contact Material:Copper Alloy Rohs Compliant: Yes |Amphenol Communications Solutions LD09S33E4GV00LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 151 |
|
$0.6480 / $1.2300 | Buy Now |
|
|
Onlinecomponents.com | D-Sub Connector - Receptacle - Female Sockets - 9 Position - 2 Rows - Board Lock - Solder Termination - Through Hole, Right Angle. RoHS: Compliant |
1341 In Stock |
|
$0.5790 / $0.8870 | Buy Now |
|
DISTI #
LD09S33E4GV00LF
|
TME | D-Sub, PIN: 9, socket, female, on PCBs,PCB snap, angled 90°, THT Min Qty: 1 | 1118 |
|
$0.5750 / $1.1390 | Buy Now |
|
|
LCSC | 9P Female Right-Angle 2 5A -55+105 Push-Pull D-Sub / VGA Connectors ROHS | 1170 |
|
$0.7105 / $1.2380 | Buy Now |
|
|
Master Electronics | D-Sub Connector - Receptacle - Female Sockets - 9 Position - 2 Rows - Board Lock - Solder Termination - Through Hole, Right Angle. RoHS: Compliant |
1341 In Stock |
|
$0.5790 / $0.8870 | Buy Now |
Part Details for LD09S33E4GV00LF
LD09S33E4GV00LF CAD Models
LD09S33E4GV00LF Part Data Attributes
|
|
LD09S33E4GV00LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
LD09S33E4GV00LF
Amphenol Communications Solutions
D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder US standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Pin Count | 9 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Body Breadth | 0.495 inch | |
| Body Depth | 0.496 inch | |
| Body Length | 1.213 inch | |
| Connector Type | D SUBMINIATURE CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | NOT APPLICABLE | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | STAGGERED | |
| Contact Resistance | 25 mΩ | |
| Contact Style | RND PIN-SKT | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYETHYLENE | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| PCB Contact Pattern | STAGGERED | |
| Plating Thickness | FLASH inch | |
| Rated Current (Signal) | 5 A | |
| Reference Standard | UL | |
| Shell Finish | TIN | |
| Terminal Length | 0.125 inch | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 9 |
LD09S33E4GV00LF Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw threads.
-
Yes, the LD09S33E4GV00LF is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
-
Yes, the LD09S33E4GV00LF is designed to support high-speed signals up to 10 Gbps, making it suitable for use in high-speed data transmission applications.
-
The operating temperature range for the LD09S33E4GV00LF is -40°C to 125°C (-40°F to 257°F).
-
Yes, the LD09S33E4GV00LF is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious designs.
