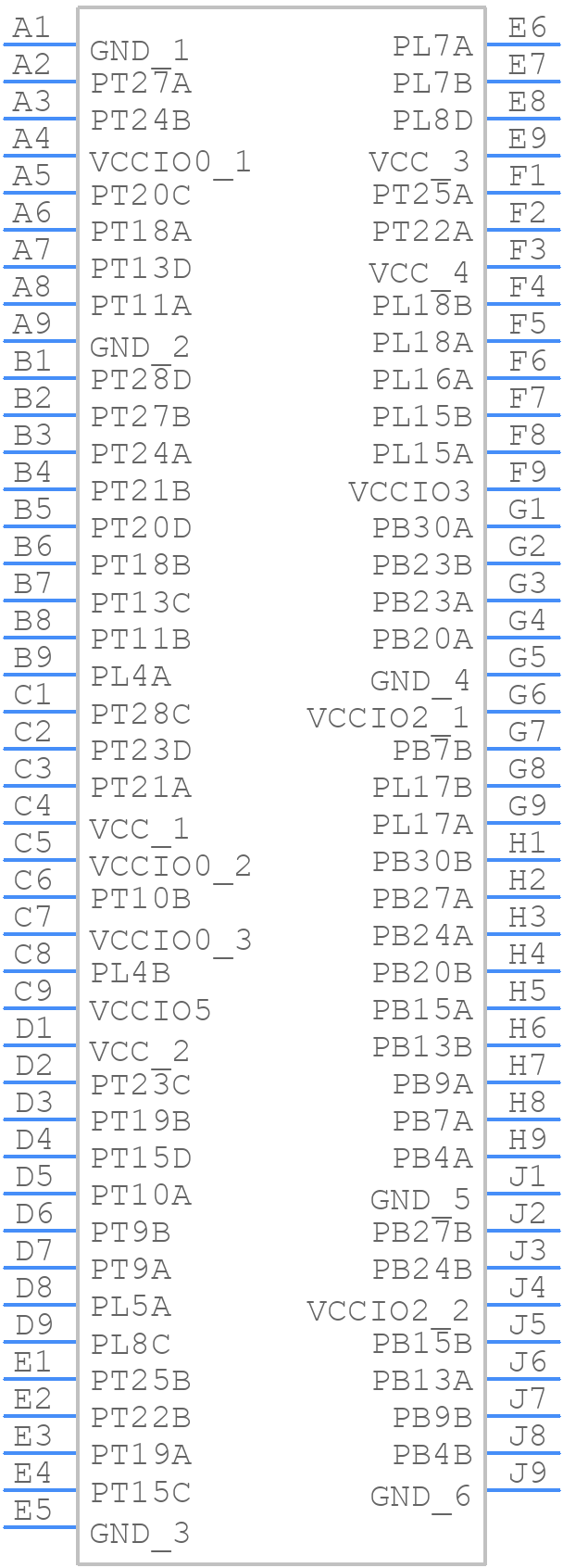

Part Symbol
-
Footprint
-

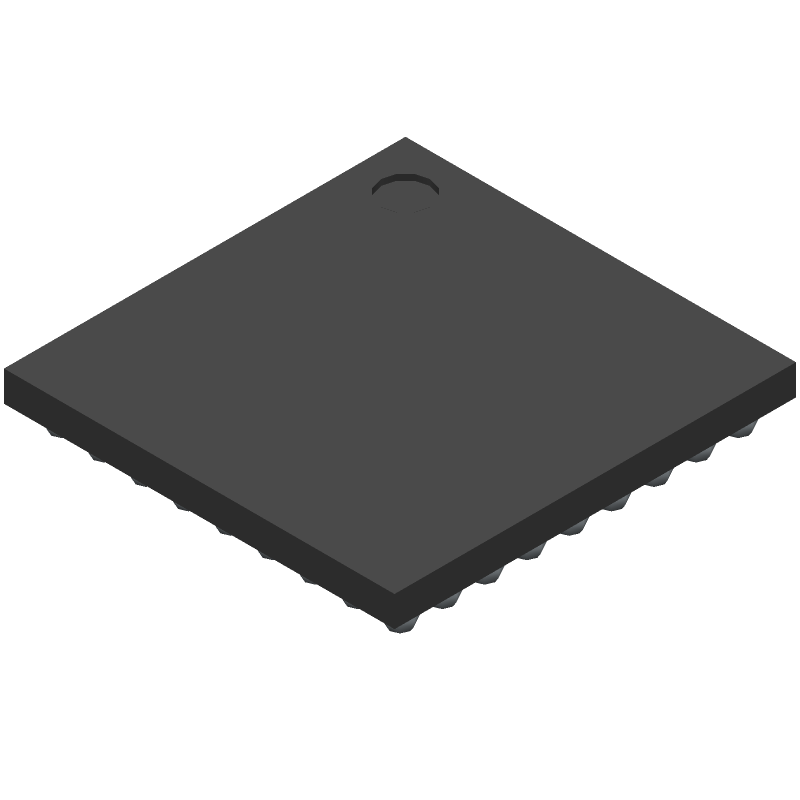

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LCMXO3LF-4300E-5UWG81CTR by Lattice Semiconductor Corporation
Results Overview of LCMXO3LF-4300E-5UWG81CTR by Lattice Semiconductor Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
LCMXO3LF-4300E-5UWG81CTR Information
LCMXO3LF-4300E-5UWG81CTR by Lattice Semiconductor Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Price & Stock for LCMXO3LF-4300E-5UWG81CTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55AJ0673
|
Newark | Lattice Machxo3Lf , 4320 Luts, 1.2V Rohs Compliant: Yes |Lattice Semiconductor LCMXO3LF-4300E-5UWG81CTR RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$6.2500 | Buy Now |
|
DISTI #
LCMXO3LF-4300E-5UWG81CTR-ND
|
DigiKey | IC FPGA 63 I/O 81WLCSP Min Qty: 4000 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$6.5625 | Buy Now |
|
DISTI #
842-LF4300E5UWG81CTR
|
Mouser Electronics | FPGA - Field Programmable Gate Array 4320 LUTs RoHS: Compliant | 0 |
|
$6.8300 | Order Now |
|
|
Vyrian | Programmable ICs | 839 |
|
RFQ |
Part Details for LCMXO3LF-4300E-5UWG81CTR
LCMXO3LF-4300E-5UWG81CTR CAD Models
LCMXO3LF-4300E-5UWG81CTR Part Data Attributes
|
|
LCMXO3LF-4300E-5UWG81CTR
Lattice Semiconductor Corporation
Buy Now
Datasheet
|
Compare Parts:
LCMXO3LF-4300E-5UWG81CTR
Lattice Semiconductor Corporation
Field Programmable Gate Array, 540 CLBs, PBGA81, WLCSP-81
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LATTICE SEMICONDUCTOR CORP | |
| Package Description | WLCSP-81 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Lattice Semiconductor | |
| Clock Frequency-Max | 125.9 MHz | |
| JESD-30 Code | R-PBGA-B81 | |
| JESD-609 Code | e1 | |
| Length | 3.797 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of CLBs | 540 | |
| Number of Inputs | 63 | |
| Number of Outputs | 63 | |
| Number of Terminals | 81 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Organization | 540 CLBS | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA81,9X9,16 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY | |
| Seated Height-Max | 0.567 mm | |
| Supply Voltage-Max | 1.26 V | |
| Supply Voltage-Min | 1.14 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Temperature Grade | OTHER | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | BOTTOM | |
| Width | 3.693 mm |
