Programmable Logic / Field Programmable Gate Arrays / LCMXO2-7000HC-6TG144I
Datasheets
LCMXO2-7000HC-6TG144I by:

Field Programmable Gate Array, 6864-Cell, CMOS, PQFP144, TQFP-144

Part Details for LCMXO2-7000HC-6TG144I by Lattice Semiconductor Corporation

Results Overview of LCMXO2-7000HC-6TG144I by Lattice Semiconductor Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

LCMXO2-7000HC-6TG144I Information

LCMXO2-7000HC-6TG144I by Lattice Semiconductor Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for LCMXO2-7000HC-6TG144I

Part # Distributor Description Stock Price Buy
DISTI # 55AJ0310
Newark Fpga, Machxo2, 114 I/O, Tqfp-144, Fpga Type:Flash Based Fpga, No. Of Logic Cells:6864Logic Cells, Ic Case/Package:Tqfp, No. Of Pins:144Pins, Speed Grade:6, No.of User I/Os:114I/O S, Process Technology:65Nm, Qualification:- Rohs Compliant: Yes |Lattice Semiconductor LCMXO2-7000HC-6TG144I RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 7
  • 1 $21.2800
  • 5 $21.2800
  • 10 $21.2800
  • 25 $21.2800
  • 50 $21.2800
  • 120 $21.2800
  • 300 $21.2800
$21.2800 Buy Now
DISTI # 220-1898-ND
DigiKey IC FPGA 114 I/O 144TQFP Min Qty: 1 Lead time: 16 Weeks Container: Tray 1186
In Stock
  • 1 $32.7000
  • 25 $28.4500
  • 100 $26.3750
$26.3750 / $32.7000 Buy Now
DISTI # 842-27000HC6TG144I
Mouser Electronics FPGA - Field Programmable Gate Array 6864 LUTs 115 I/O 3.3V 6 SPEED RoHS: Compliant 1956
  • 1 $30.6800
  • 25 $26.3800
  • 120 $26.3700
$26.3700 / $30.6800 Buy Now
DISTI # V36:1790_06794060
Arrow Electronics FPGA MachXO2 Family 6864 Cells 65nm Technology 2.5V/3.3V 144-Pin TQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2403 Americas - 325
  • 1 $30.5500
  • 25 $26.3200
  • 100 $25.7900
$25.7900 / $30.5500 Buy Now
DISTI # 79934655
Verical FPGA MachXO2 Family 6864 Cells 65nm Technology 2.5V/3.3V 144-Pin TQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2403 Americas - 325
  • 1 $30.5500
  • 25 $26.3200
  • 100 $25.7900
$25.7900 / $30.5500 Buy Now
DISTI # 88757699
Verical FPGA MachXO2 Family 6864 Cells 65nm Technology 2.5V/3.3V 144-Pin TQFP Tray RoHS: Compliant Min Qty: 3 Package Multiple: 1 Americas - 7
  • 3 $29.3141
  • 5 $28.2940
$28.2940 / $29.3141 Buy Now
Flip Electronics Stock 2385
RFQ
Vyrian Programmable ICs 572
RFQ

Part Details for LCMXO2-7000HC-6TG144I

LCMXO2-7000HC-6TG144I CAD Models

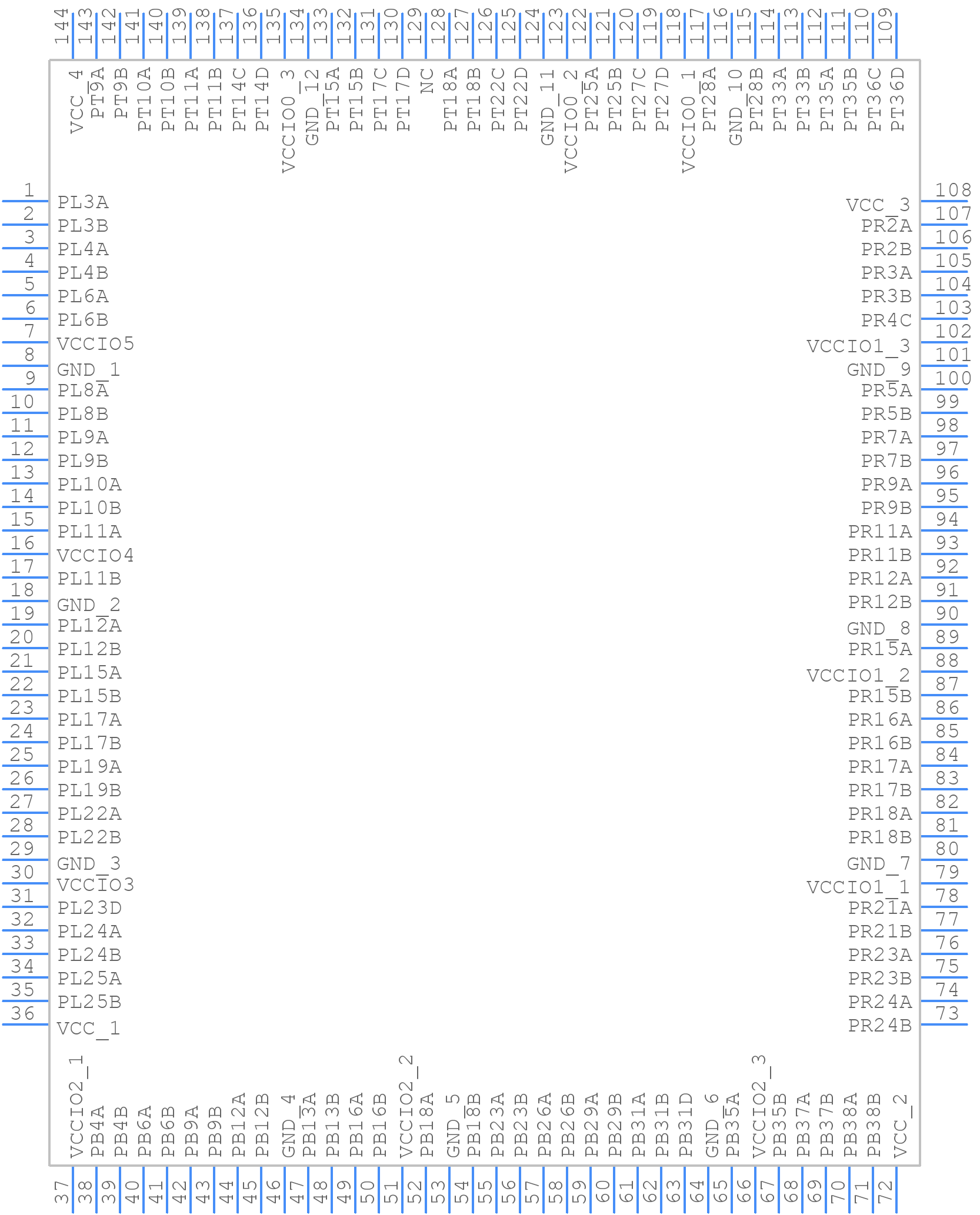

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

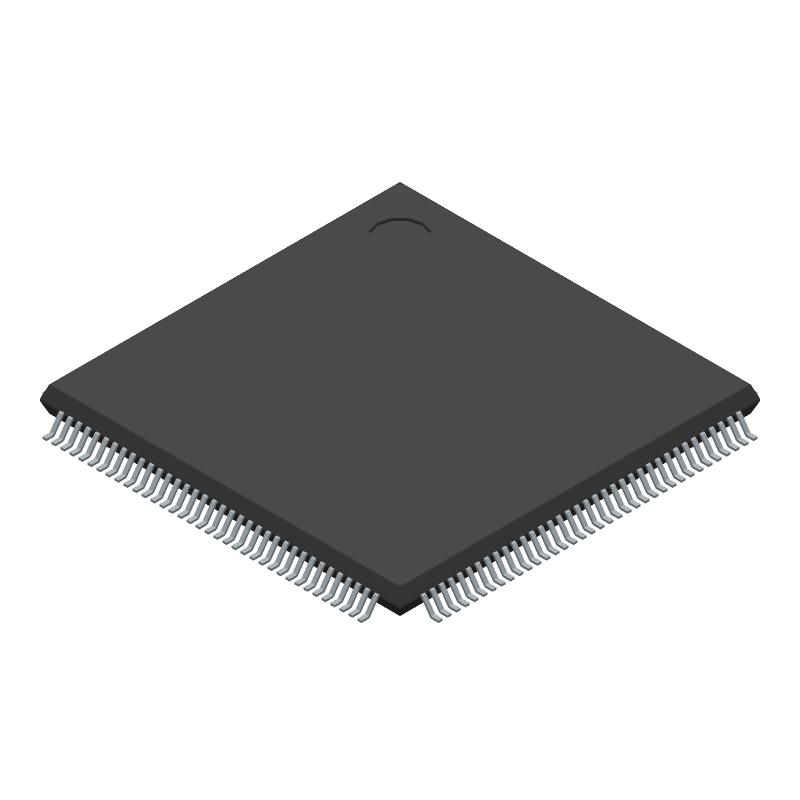

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LCMXO2-7000HC-6TG144I Part Data Attributes

Parametric Data
LCMXO2-7000HC-6TG144I Lattice Semiconductor Corporation
Buy Now Datasheet
Compare Parts:
LCMXO2-7000HC-6TG144I Lattice Semiconductor Corporation Field Programmable Gate Array, 6864-Cell, CMOS, PQFP144, TQFP-144
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer LATTICE SEMICONDUCTOR CORP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Lattice Semiconductor
Additional Feature ALSO OPERATES AT 3.3 V NOMINAL SUPPLY
Clock Frequency-Max 128.7 MHz
JESD-30 Code S-PQFP-G144
JESD-609 Code e3
Length 20 mm
Moisture Sensitivity Level 3
Number of Inputs 114
Number of Logic Cells 6864
Number of Outputs 114
Number of Terminals 144
Operating Temperature-Max 100 °C
Operating Temperature-Min -40 °C
Organization 858 CLBS
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Packing Method TRAY
Peak Reflow Temperature (Cel) 260
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Supply Voltage-Max 3.465 V
Supply Voltage-Min 2.375 V
Supply Voltage-Nom 2.5 V
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 20 mm

Alternate Parts for LCMXO2-7000HC-6TG144I

This table gives cross-reference parts and alternative options found for LCMXO2-7000HC-6TG144I. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LCMXO2-7000HC-6TG144I, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LCMXO2-7000HC-4TG144C Lattice Semiconductor Corporation $21.5393 Field Programmable Gate Array, 6864-Cell, CMOS, PQFP144, TQFP-144 LCMXO2-7000HC-6TG144I vs LCMXO2-7000HC-4TG144C
LCMXO2-7000HC-5TG144C Lattice Semiconductor Corporation $28.7615 Field Programmable Gate Array, 6864-Cell, CMOS, PQFP144, TQFP-144 LCMXO2-7000HC-6TG144I vs LCMXO2-7000HC-5TG144C
LCMXO2-7000HC-6TG144C Lattice Semiconductor Corporation $31.7366 Field Programmable Gate Array, 6864-Cell, CMOS, PQFP144, TQFP-144 LCMXO2-7000HC-6TG144I vs LCMXO2-7000HC-6TG144C

LCMXO2-7000HC-6TG144I Related Parts

LCMXO2-7000HC-6TG144I Frequently Asked Questions (FAQ)

  • The LCMXO2-7000HC-6TG144I has an operating temperature range of -40°C to 100°C.

  • Lattice recommends using a synchronizer or a FIFO to implement CDC in the LCMXO2-7000HC-6TG144I. The Lattice Diamond software provides tools and IP cores to facilitate CDC implementation.

  • The power consumption of the LCMXO2-7000HC-6TG144I depends on the specific application and usage. However, the typical static power consumption is around 100-200 mW, and the dynamic power consumption is around 100-500 mW/MHz.

  • Yes, the LCMXO2-7000HC-6TG144I is capable of supporting high-speed interfaces like PCIe and SATA. However, the specific implementation and performance will depend on the design and the usage of the FPGA.

  • Lattice provides a range of security features, including bitstream encryption, authentication, and secure boot mechanisms. Additionally, designers can implement their own security measures, such as encryption and access control, to protect their IP.
