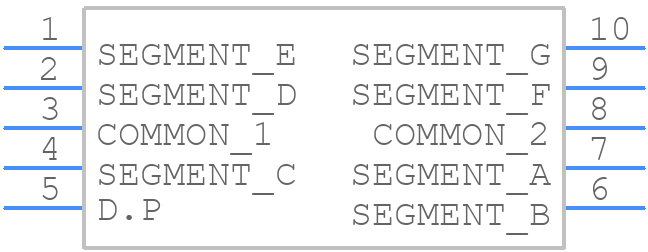

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LAP-601ML by ROHM Semiconductor
Results Overview of LAP-601ML by ROHM Semiconductor
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LAP-601ML Information
LAP-601ML by ROHM Semiconductor is an LED Display.
LED Displays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for LAP-601ML
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
846-LAP-601ML-ND
|
DigiKey | HIGH BRIGHTNESS NUMERIC LED DISP Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
112 In Stock |
|
$2.1639 / $4.5100 | Buy Now |
|
DISTI #
755-LAP-601ML
|
Mouser Electronics | LED Displays & Accessories HIGH BRIGHTNESS LED DISPLAYS RoHS: Compliant | 111 |
|
$2.6000 / $4.5100 | Buy Now |
|
DISTI #
77930443
|
Verical | Displays Module 1DIGIT 8LED Green CC 10-Pin DIP Module Film RoHS: Compliant Min Qty: 23 Package Multiple: 1 Date Code: 2243 | Americas - 2168 |
|
$1.6400 / $2.5400 | Buy Now |
|
DISTI #
64560001
|
Verical | Displays Module 1DIGIT 8LED Green CC 10-Pin DIP Module Film RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 2201 | Americas - 890 |
|
$1.3356 / $1.4657 | Buy Now |
|
|
Quest Components | 712 |
|
$1.4460 / $3.8560 | Buy Now | |
|
DISTI #
LAP-601ML
|
TTI | LED Displays & Accessories HIGH BRIGHTNESS LED DISPLAYS RoHS: Compliant pbFree: Pb-Free Min Qty: 60 Package Multiple: 60 Container: Bulk | Americas - 0 |
|
$3.4700 / $3.7600 | Buy Now |
|
DISTI #
LAP-601ML
|
Chip One Stop | Opto-electronics RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 2168 |
|
$1.3900 / $2.5400 | Buy Now |
Part Details for LAP-601ML
LAP-601ML CAD Models
LAP-601ML Part Data Attributes
|
|
LAP-601ML
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
LAP-601ML
ROHM Semiconductor
Smart/Normal 7 Seg Numeric LED Display, 1-Character, Green, 14.6mm
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Color | GREEN | |
| Color@Wavelength | Green-Yellow | |
| Configuration | COMMON CATHODE, MULTIPLEXED, 1 DIGIT WITH DECIMAL POINT | |
| Display Height | 14.6 mm | |
| Forward Current-Max | 0.02 A | |
| Forward Voltage-Max | 2.6 V | |
| JESD-609 Code | e1 | |
| Number of Characters | 1 | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | -25 °C | |
| Optoelectronic Device Type | SMART/NORMAL 7 SEG NUMERIC LED DISPLAY | |
| Peak Wavelength | 572 nm | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
