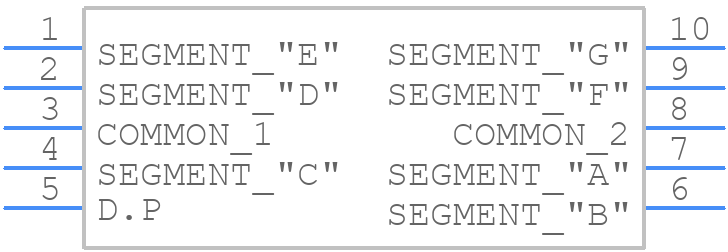

Part Symbol
-

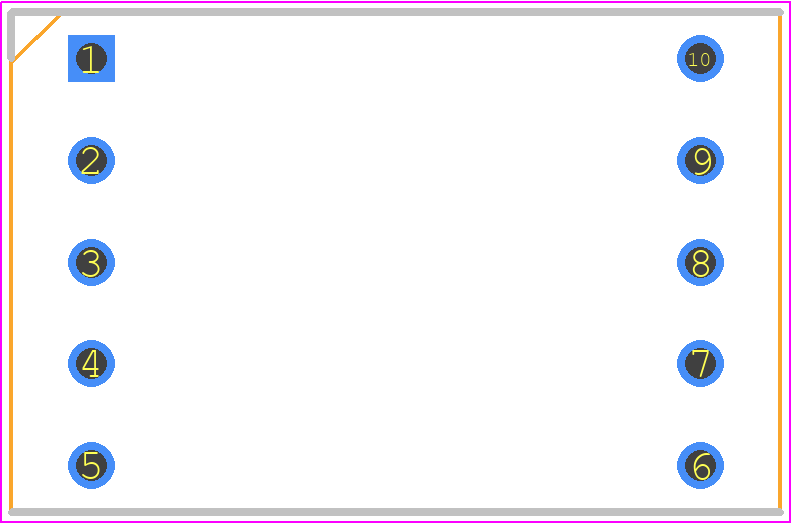

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LAP-601MB by ROHM Semiconductor
Results Overview of LAP-601MB by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LAP-601MB Information
LAP-601MB by ROHM Semiconductor is an LED Display.
LED Displays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for LAP-601MB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LAP-601MB-ND
|
DigiKey | DISPLAY 7SEG 0.58" SGL GRN 10DIP Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
56 In Stock |
|
$1.6863 / $3.2800 | Buy Now |
|
DISTI #
755-LAP-601MB
|
Mouser Electronics | LED Displays & Accessories DISPLAYS SEG MOD 1DIGIT 8LED GRN RoHS: Compliant | 0 |
|
$1.6800 / $3.2800 | Order Now |
|
DISTI #
74066663
|
Verical | Displays Module 1DIGIT 8LED Green CA 10-Pin DIP Module Film RoHS: Compliant Min Qty: 23 Package Multiple: 1 | Americas - 1096 |
|
$1.2800 / $1.9100 | Buy Now |
|
DISTI #
68038904
|
Verical | Displays Module 1DIGIT 8LED Green CA 10-Pin DIP Module Film RoHS: Compliant Min Qty: 43 Package Multiple: 1 Date Code: 2301 | Americas - 822 |
|
$1.6525 / $1.9600 | Buy Now |
|
DISTI #
LAP-601MB
|
TTI | LED Displays & Accessories DISPLAYS SEG MOD 1DIGIT 8LED GRN RoHS: Compliant pbFree: Pb-Free Min Qty: 60 Package Multiple: 60 Container: Bulk | Americas - 0 |
|
$1.6500 / $1.7100 | Buy Now |
|
DISTI #
LAP-601MB
|
Chip One Stop | Opto-electronics RoHS: Compliant pbFree: No Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 1096 |
|
$1.0000 / $3.0000 | Buy Now |
Part Details for LAP-601MB
LAP-601MB CAD Models
LAP-601MB Part Data Attributes
|
|
LAP-601MB
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
LAP-601MB
ROHM Semiconductor
Smart/Normal 7 Seg Numeric LED Display, 1-Character, Green, 14.6mm
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Color | GREEN | |
| Color@Wavelength | Green-Yellow | |
| Configuration | COMMON ANODE, MULTIPLEXED, 1 DIGIT WITH DECIMAL POINT | |
| Display Height | 14.6 mm | |
| Forward Current-Max | 0.02 A | |
| Forward Voltage-Max | 2.6 V | |
| JESD-609 Code | e1 | |
| Number of Characters | 1 | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | -25 °C | |
| Optoelectronic Device Type | SMART/NORMAL 7 SEG NUMERIC LED DISPLAY | |
| Peak Wavelength | 572 nm | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
